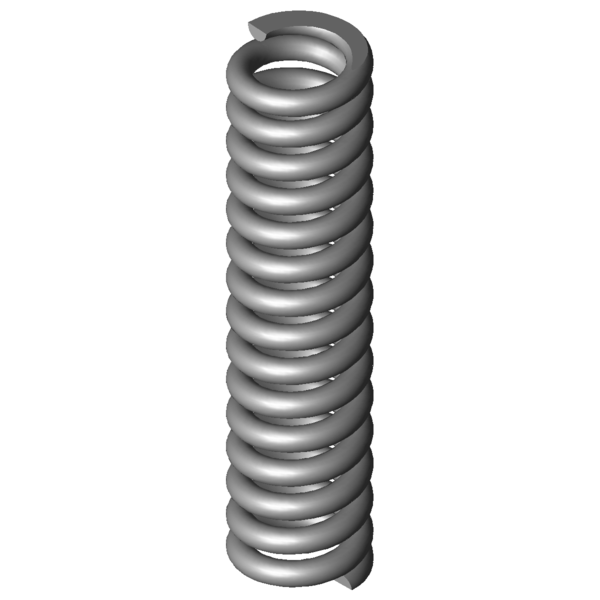

Home » Products » Compression springs » vd-263aa Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263AA Stainless steel Ø 2 x 8.7 x 45 mm Scaled prices - Compression spring VD-263AA Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-263AA Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263AA Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 8.7 mm Mean coil diameter De 10.7 mm Outer coil diameter Dd 6.2 mm maximum diameter of mandrel Dh 11.2 mm minimum diameter of bush L0 45 mm unstressed spring length Lk mm buckling length Fn 165.888 N maximum force in static use Ln 34.47 mm Minimum length in static use sn 10.53 mm Maximum spring deflection in static use Fndyn 138.428 N maximum force in dynamic use Lndyn 36.21 mm Minimum length in dynamic use shdyn 6.1 mm Maximum stroke in dynamic use S 3.185 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 15.748 N/mm Spring rate Weight 10.5204 g weight of one spring Fntol 22.62 N (+/-) tolerance of maximum force in static use Fndtol 22.21 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.28 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263AA Stainless steel Ø 2 x 8.7 x 45 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263AA Stainless steel Ø 2 x 8.7 x 45 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263AA Stainless steel Ø 2 x 8.7 x 45 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263AA Stainless steel Ø 2 x 8.7 x 45 mm force-path-calculation Compression spring VD-263AA Inquiry formular Compression spring VD-263AA Stainless steel Ø 2 x 8.7 x 45 mm Inquiry formular Compression spring VD-263AA Customs tariff number: 73202081; Compression spring VD-263AA Country of origin: DE, German; Compression spring VD-263AA Product image - Compression springs VD-263AA QR-Code: Compression spring VD-263AA
