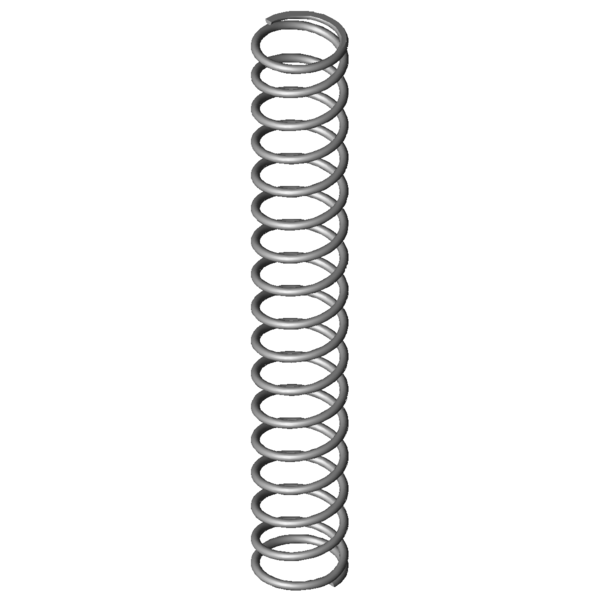

Home » Products » Compression springs » vd-263m Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263M Stainless steel Ø 2.2 x 21.8 x 159 mm Scaled prices - Compression spring VD-263M Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-263M Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263M Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.2 mm Wire diameter Di mm Inner coil diameter D 21.8 mm Mean coil diameter De 24 mm Outer coil diameter Dd 18.9 mm maximum diameter of mandrel Dh 25.1 mm minimum diameter of bush L0 159 mm unstressed spring length Lk 119.23 mm buckling length Fn 143.047 N maximum force in static use Ln 46.93 mm Minimum length in static use sn 112.07 mm Maximum spring deflection in static use Fndyn 137.663 N maximum force in dynamic use Lndyn 51.15 mm Minimum length in dynamic use shdyn 36.17 mm Maximum stroke in dynamic use S 10.116 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 1.276 N/mm Spring rate Weight 36.0131 g weight of one spring Fntol 7.74 N (+/-) tolerance of maximum force in static use Fndtol 7.66 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 4.39 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263M Stainless steel Ø 2.2 x 21.8 x 159 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263M Stainless steel Ø 2.2 x 21.8 x 159 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263M Stainless steel Ø 2.2 x 21.8 x 159 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263M Stainless steel Ø 2.2 x 21.8 x 159 mm force-path-calculation Compression spring VD-263M Inquiry formular Compression spring VD-263M Stainless steel Ø 2.2 x 21.8 x 159 mm Inquiry formular Compression spring VD-263M Customs tariff number: 73202081; Compression spring VD-263M Country of origin: DE, German; Compression spring VD-263M Product image - Compression springs VD-263M QR-Code: Compression spring VD-263M
