Compression spring VD-263Q-03 Stainless steel Ø 2.2 x 10.1 x 32 mm

Scaled prices - Compression spring VD-263Q-03

Quantity	Single price [EUR]
1	5.1600 EUR
2	3.6400 EUR
3	3.4700 EUR
7	2.4200 EUR
17	1.1500 EUR
37	0.8500 EUR
75	0.6800 EUR
125	0.4859 EUR
175	0.4196 EUR
250	0.3695 EUR
350	0.3536 EUR
450	0.3284 EUR

Compression spring Buy

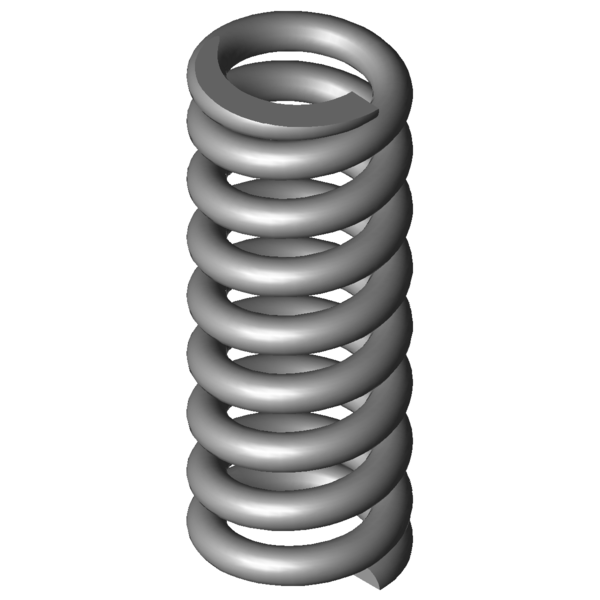

Product image Compression spring VD-263Q-03

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-263Q-03

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	2.2	mm	Wire diameter
Di		mm	Inner coil diameter
D	10.1	mm	Mean coil diameter
De	12.3	mm	Outer coil diameter
Dd	7.4	mm	maximum diameter of mandrel
Dh	12.9	mm	minimum diameter of bush
L0	32	mm	unstressed spring length
Lk		mm	buckling length
Fn	289.129	N	maximum force in static use
Ln	21.83	mm	Minimum length in static use
sn	10.17	mm	Maximum spring deflection in static use
Fndyn	257.208	N	maximum force in dynamic use
Lndyn	22.95	mm	Minimum length in dynamic use
shdyn	2.67	mm	Maximum stroke in dynamic use
S	4.257	mm	pitch of spring
n	7	pc.	number of active coils
nt		pc.	total number of coils
R	28.421	N/mm	Spring rate
Weight	8.5808	g	weight of one spring
Fntol	29.05	N	(+/-) tolerance of maximum force in static use
Fndtol	28.54	N	(+/-) tolerance of maximum dynamic force
Detol	0.3	mm	(+/-) tolerances of outer coil diameter
L0tol	0.71	mm	(+/-) tolerance of unstressed spring length
Price group	J	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-263Q-03 Stainless steel Ø 2.2 x 10.1 x 32 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-263Q-03 Stainless steel Ø 2.2 x 10.1 x 32 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-263Q-03 Stainless steel Ø 2.2 x 10.1 x 32 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-263Q-03 Stainless steel Ø 2.2 x 10.1 x 32 mm

force-path-calculation Compression spring VD-263Q-03

Inquiry formular Compression spring VD-263Q-03 Stainless steel Ø 2.2 x 10.1 x 32 mm

Inquiry formular Compression spring VD-263Q-03

Similar compression springs to Compression spring VD-263Q-03 Stainless steel Ø 2.2 x 10.1 x 32 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-263Q-03	1.4310	2.2	12.3	32	289.129	21.83	10.17	7	28.421	100.0 \| 100.0 \| 100.0 \| 100.0
D-263Q-03	EN 10270-1	2.2	12.3	32	336.629	21.83	10.17	7	33.09	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-222B	12.7	35	4.933	1.4310	78.226	19.14	15.86	50.0 \| 87.0 \| 45.6 \| 17.3
VD-207J-33	14	31	5.04	1.4310	95.76	12	19	48.5 \| 84.3 \| 43.3 \| 17.7
VD-207KB	12.5	26.2	6.051	1.4310	81.444	12.74	13.46	52.0 \| 82.8 \| 51.9 \| 21.3
VD-227A-03	11.5	32	7.88	1.4310	117.496	17.09	14.91	57.0 \| 88.7 \| 54.4 \| 27.7
VD-233	13	28	8.717	1.4310	76.416	19.23	8.77	58.3 \| 88.0 \| 56.3 \| 30.6
VD-234	12	32	10.183	1.4310	110.314	21.17	10.83	65.0 \| 93.1 \| 66.0 \| 35.8
VD-252A-03	14.8	32	12.138	1.4310	184.786	16.78	15.22	66.5 \| 91.3 \| 65.4 \| 42.7
VD-234BB	11	32	12.417	1.4310	110.757	23.08	8.92	65.7 \| 90.4 \| 63.0 \| 43.7
VD-254	14.5	33	13.033	1.4310	211.853	16.74	16.26	68.2 \| 90.9 \| 67.9 \| 45.8
VD-257E-04	12.3	38	13.486	1.4310	166.476	25.66	12.34	69.7 \| 91.7 \| 70.0 \| 47.5
VD-257E-03	12.3	32	17.083	1.4310	186.256	21.1	10.9	78.6 \| 97.0 \| 78.9 \| 60.1
VD-263Q-04	12.3	38	20.942	1.4310	208.354	28.05	9.95	84.4 \| 94.7 \| 84.9 \| 73.7
VD-259	12	26.5	25.455	1.4310	254.227	16.51	9.99	91.0 \| 90.4 \| 93.1 \| 89.5
VD-262A-15	11	32	25.606	1.4310	282.801	20.96	11.04	92.8 \| 93.4 \| 95.0 \| 90.1
VD-263Q-03	12.3	32	28.421	1.4310	289.129	21.83	10.17	100.0 \| 100.0 \| 100.0 \| 100.0
VD-263V-04	12.3	38	31.871	1.4310	343.724	27.22	10.78	90.3 \| 92.6 \| 89.2 \| 89.2
VD-263V-03	12.3	32	38.7	1.4310	338.943	23.24	8.76	85.7 \| 97.9 \| 85.7 \| 73.5

Number of similar metal springs: 16

Customs tariff number: 73202081; Compression spring VD-263Q-03

Country of origin: DE, German; Compression spring VD-263Q-03
