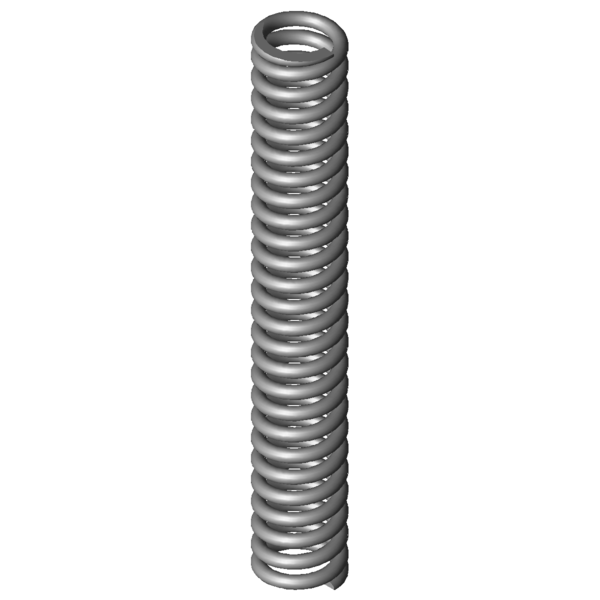

Home » Products » Compression springs » vd-263v-18 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263V-18 Stainless steel Ø 2.4 x 12.8 x 102 mm Scaled prices - Compression spring VD-263V-18 Quantity Single price [EUR] 1 5.6700 EUR 2 4.0000 EUR 3 3.8100 EUR 7 2.9900 EUR 17 1.5200 EUR 37 1.2000 EUR 75 1.0100 EUR 125 0.7829 EUR 175 0.7387 EUR 250 0.6198 EUR 350 0.5936 EUR 450 0.5368 EUR Compression spring Buy Product image Compression spring VD-263V-18 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263V-18 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.4 mm Wire diameter Di mm Inner coil diameter D 12.8 mm Mean coil diameter De 15.2 mm Outer coil diameter Dd 9.7 mm maximum diameter of mandrel Dh 15.6 mm minimum diameter of bush L0 102 mm unstressed spring length Lk 81.91 mm buckling length Fn 181.008 N maximum force in static use Ln 70.62 mm Minimum length in static use sn 31.38 mm Maximum spring deflection in static use Fndyn 157.289 N maximum force in dynamic use Lndyn 74.73 mm Minimum length in dynamic use shdyn 22.32 mm Maximum stroke in dynamic use S 4.15 mm pitch of spring n 24 pc. number of active coils nt pc. total number of coils R 5.768 N/mm Spring rate Weight 37.3875 g weight of one spring Fntol 19.99 N (+/-) tolerance of maximum force in static use Fndtol 19.57 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 2.49 mm (+/-) tolerance of unstressed spring length Price group N - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263V-18 Stainless steel Ø 2.4 x 12.8 x 102 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263V-18 Stainless steel Ø 2.4 x 12.8 x 102 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263V-18 Stainless steel Ø 2.4 x 12.8 x 102 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263V-18 Stainless steel Ø 2.4 x 12.8 x 102 mm force-path-calculation Compression spring VD-263V-18 Inquiry formular Compression spring VD-263V-18 Stainless steel Ø 2.4 x 12.8 x 102 mm Inquiry formular Compression spring VD-263V-18 Customs tariff number: 73202081; Compression spring VD-263V-18 Country of origin: DE, German; Compression spring VD-263V-18 Product image - Compression springs VD-263V-18 QR-Code: Compression spring VD-263V-18
