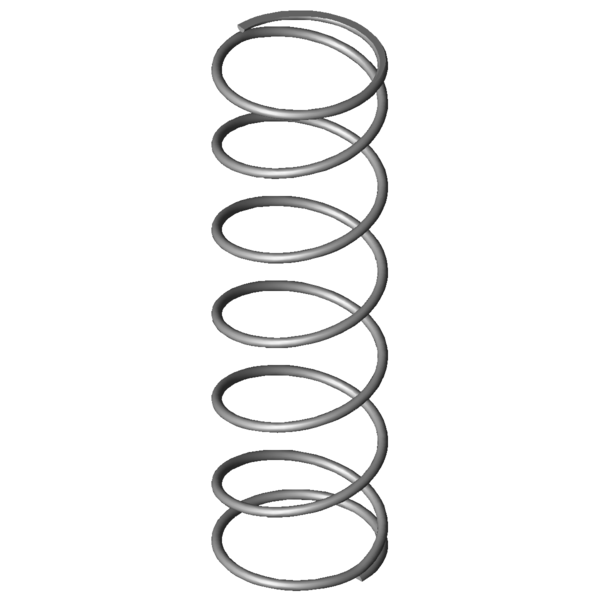

Home » Products » Compression springs » vd-263x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263X Stainless steel Ø 2.5 x 39.5 x 141 mm Scaled prices - Compression spring VD-263X Quantity Single price [EUR] 1 5.6700 EUR 2 4.0000 EUR 3 3.8100 EUR 7 2.9900 EUR 17 1.5200 EUR 37 1.2000 EUR 75 1.0100 EUR 125 0.7829 EUR 175 0.7387 EUR 250 0.6198 EUR 350 0.5936 EUR 450 0.5368 EUR Compression spring Buy Product image Compression spring VD-263X Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263X Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 39.5 mm Mean coil diameter De 42 mm Outer coil diameter Dd 36.1 mm maximum diameter of mandrel Dh 44.4 mm minimum diameter of bush L0 141 mm unstressed spring length Lk mm buckling length Fn 116.693 N maximum force in static use Ln 25.27 mm Minimum length in static use sn 115.73 mm Maximum spring deflection in static use Fndyn 113.41 N maximum force in dynamic use Lndyn 28.53 mm Minimum length in dynamic use shdyn 34.76 mm Maximum stroke in dynamic use S 25.182 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.008 N/mm Spring rate Weight 36.1126 g weight of one spring Fntol 8.97 N (+/-) tolerance of maximum force in static use Fndtol 8.92 N (+/-) tolerance of maximum dynamic force Detol 0.7 mm (+/-) tolerances of outer coil diameter L0tol 5.91 mm (+/-) tolerance of unstressed spring length Price group N - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263X Stainless steel Ø 2.5 x 39.5 x 141 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263X Stainless steel Ø 2.5 x 39.5 x 141 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263X Stainless steel Ø 2.5 x 39.5 x 141 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263X Stainless steel Ø 2.5 x 39.5 x 141 mm force-path-calculation Compression spring VD-263X Inquiry formular Compression spring VD-263X Stainless steel Ø 2.5 x 39.5 x 141 mm Inquiry formular Compression spring VD-263X Similar compression springs to Compression spring VD-263X Stainless steel Ø 2.5 x 39.5 x 141 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-263X 1.4310 2.5 42 141 116.693 25.27 115.73 5.5 1.008 100.0 | 100.0 | 100.0 | 100.0 D-263X EN 10270-1 2.5 42 141 135.864 25.27 115.73 5.5 1.174 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-20 46 136 0.755 1.4310 82.769 26.37 109.63 84.5 | 95.9 | 82.8 | 74.9 VD-263F 38 134 0.812 1.4310 90.552 22.52 111.48 86.2 | 91.2 | 87.0 | 80.6 VD-263X 42 141 1.008 1.4310 116.693 25.27 115.73 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-13 37 131 2.121 1.4310 195.254 38.96 92.04 68.4 | 88.1 | 69.6 | 47.5 VD-290 43.2 125 2.607 1.4310 247.922 29.89 95.12 63.8 | 88.0 | 64.6 | 38.7 VD-313H 40 155 3.208 1.4310 336.599 50.06 104.94 59.8 | 85.2 | 62.7 | 31.4 VD-296 35.2 135 3.294 1.4310 311.624 40.4 94.6 58.7 | 85.9 | 59.6 | 30.6 VD-321 44 160 4.118 1.4310 450.882 50.5 109.5 55.6 | 82.0 | 60.2 | 24.5 VD-327A 36 141 5.064 1.4310 346.435 72.58 68.42 49.7 | 82.7 | 46.4 | 19.9 VD-339N-06 41 165 5.903 1.4310 522.707 76.45 88.55 48.7 | 79.5 | 49.4 | 17.1 VD-324 37 135 6.561 1.4310 533.559 53.68 81.32 47.9 | 82.1 | 46.1 | 15.4 VD-339N-05 41 115 8.681 1.4310 521.717 54.9 60.1 42.3 | 78.2 | 37.1 | 11.6 VD-351B 45 130 9.494 1.4310 628.337 63.82 66.18 42.3 | 78.5 | 37.9 | 10.6 VD-352 45 140 10.053 1.4310 795.884 60.83 79.17 44.1 | 80.9 | 41.5 | 10.0 VD-364J-23 48 135 12.271 1.4310 838.71 66.65 68.35 40.3 | 76.2 | 36.5 | 8.2 VD-357A 37 144 12.362 1.4310 687.387 88.4 55.6 39.8 | 78.7 | 32.5 | 8.2 VD-364R-83 46 150 14.175 1.4310 715.838 99.5 50.5 37.6 | 75.7 | 30.0 | 7.1 VD-382A 46.3 152 15.954 1.4310 649.342 111.3 40.7 35.8 | 74.4 | 26.6 | 6.3 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-263X Country of origin: DE, German; Compression spring VD-263X Product image - Compression springs VD-263X QR-Code: Compression spring VD-263X
