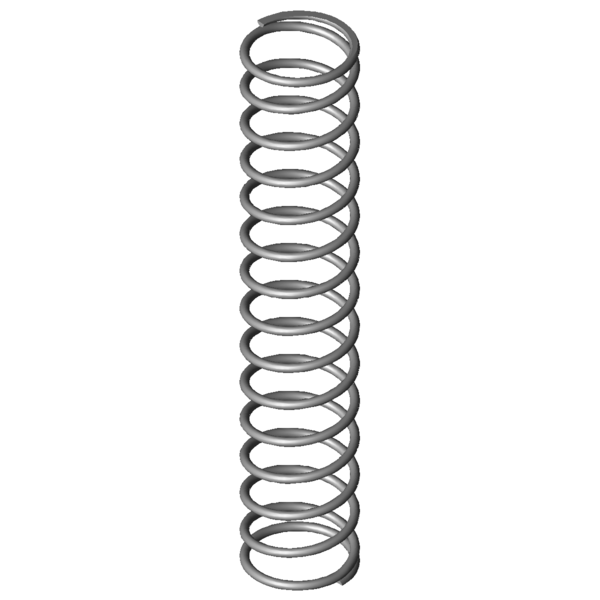

Home » Products » Compression springs » vd-268e Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-268E Stainless steel Ø 2.5 x 28.5 x 163 mm Scaled prices - Compression spring VD-268E Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-268E Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-268E Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 28.5 mm Mean coil diameter De 31 mm Outer coil diameter Dd 25.2 mm maximum diameter of mandrel Dh 32.3 mm minimum diameter of bush L0 163 mm unstressed spring length Lk 86.24 mm buckling length Fn 125.006 N maximum force in static use Ln 48.7 mm Minimum length in static use sn 114.3 mm Maximum spring deflection in static use Fndyn 119.564 N maximum force in dynamic use Lndyn 53.68 mm Minimum length in dynamic use shdyn 58.92 mm Maximum stroke in dynamic use S 11.889 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 1.094 N/mm Spring rate Weight 53.8489 g weight of one spring Fntol 8.66 N (+/-) tolerance of maximum force in static use Fndtol 8.57 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 5.09 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-268E Stainless steel Ø 2.5 x 28.5 x 163 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-268E Stainless steel Ø 2.5 x 28.5 x 163 mm Metal spring characteristic download pdf file CAD data Compression spring VD-268E Stainless steel Ø 2.5 x 28.5 x 163 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-268E Stainless steel Ø 2.5 x 28.5 x 163 mm force-path-calculation Compression spring VD-268E Inquiry formular Compression spring VD-268E Stainless steel Ø 2.5 x 28.5 x 163 mm Inquiry formular Compression spring VD-268E Customs tariff number: 73202081; Compression spring VD-268E Country of origin: DE, German; Compression spring VD-268E Product image - Compression springs VD-268E QR-Code: Compression spring VD-268E
