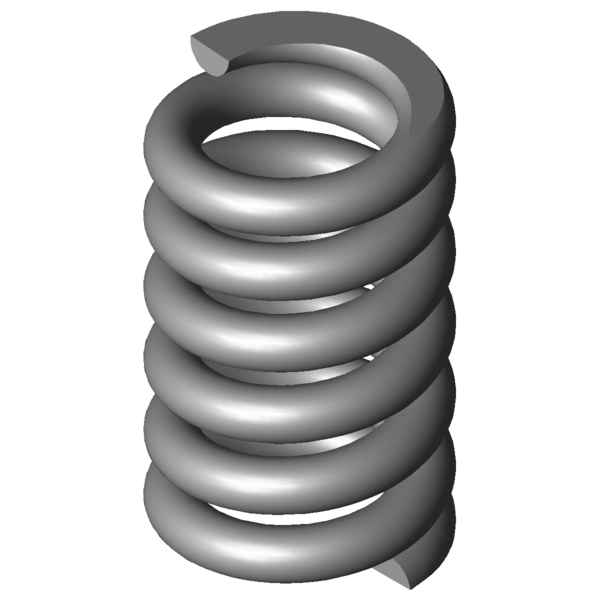

Home » Products » Compression springs » vd-288t-02 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288T-02 Stainless steel Ø 2.8 x 12.2 x 25 mm Scaled prices - Compression spring VD-288T-02 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-288T-02 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288T-02 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 12.2 mm Mean coil diameter De 15 mm Outer coil diameter Dd 8.8 mm maximum diameter of mandrel Dh 15.7 mm minimum diameter of bush L0 25 mm unstressed spring length Lk mm buckling length Fn 341.018 N maximum force in static use Ln 19.82 mm Minimum length in static use sn 5.18 mm Maximum spring deflection in static use Fndyn 287.627 N maximum force in dynamic use Lndyn 20.63 mm Minimum length in dynamic use shdyn 2.77 mm Maximum stroke in dynamic use S 4.933 mm pitch of spring n 4.5 pc. number of active coils nt pc. total number of coils R 65.819 N/mm Spring rate Weight 12.1258 g weight of one spring Fntol 50.09 N (+/-) tolerance of maximum force in static use Fndtol 49.16 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.58 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288T-02 Stainless steel Ø 2.8 x 12.2 x 25 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288T-02 Stainless steel Ø 2.8 x 12.2 x 25 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288T-02 Stainless steel Ø 2.8 x 12.2 x 25 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288T-02 Stainless steel Ø 2.8 x 12.2 x 25 mm force-path-calculation Compression spring VD-288T-02 Inquiry formular Compression spring VD-288T-02 Stainless steel Ø 2.8 x 12.2 x 25 mm Inquiry formular Compression spring VD-288T-02 Similar compression springs to Compression spring VD-288T-02 Stainless steel Ø 2.8 x 12.2 x 25 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288T-02 1.4310 2.8 15 25 341.018 19.82 5.18 4.5 65.819 100.0 | 100.0 | 100.0 | 100.0 D-288T-02 EN 10270-1 2.8 15 25 397.043 19.82 5.18 4.5 76.632 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-222A-14 12.7 26 7.624 1.4310 94.913 13.55 12.45 41.9 | 79.3 | 34.7 | 11.6 VD-218 14.1 24 8.389 1.4310 113.666 10.45 13.55 43.6 | 82.4 | 35.8 | 12.7 VD-252A-33 15 28.5 12.138 1.4310 148.688 16.25 12.25 49.3 | 86.4 | 42.9 | 18.4 VD-252A-02 14.8 25 14.835 1.4310 156.465 14.45 10.55 53.4 | 90.0 | 47.5 | 22.5 VD-253 14.5 22.5 20.48 1.4310 212.784 12.11 10.39 57.8 | 86.0 | 56.1 | 31.1 VD-257E-02 12.3 25 23.295 1.4310 197.127 16.54 8.46 59.8 | 84.5 | 59.5 | 35.4 VD-263V-10 15.2 25 25.169 1.4310 128.783 19.88 5.12 67.1 | 94.8 | 68.3 | 38.2 VD-263N 15 20.8 27.925 1.4310 210.531 13.26 7.54 65.0 | 87.3 | 65.2 | 42.4 VD-284A 15 27 31.818 1.4310 202.344 20.64 6.36 70.9 | 94.0 | 70.4 | 48.3 VD-263Q-02 12.3 25 33.158 1.4310 187.761 19.34 5.66 70.2 | 86.9 | 73.3 | 50.4 VD-283A-15 15.5 28 34.572 1.4310 351.553 17.83 10.17 72.8 | 91.8 | 74.0 | 52.5 VD-263V-02 12.3 25 49.255 1.4310 282.3 19.27 5.73 83.4 | 88.6 | 86.6 | 74.8 VD-284 15 22 50 1.4310 352.344 14.95 7.05 84.5 | 92.4 | 85.1 | 75.9 VD-288C 13 26.7 53.683 1.4310 333.435 20.49 6.21 87.3 | 89.9 | 90.6 | 81.6 VD-288T-02 15 25 65.819 1.4310 341.018 19.82 5.18 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-60 17 24 73.797 1.4310 450.681 17.89 6.11 87.3 | 92.5 | 80.2 | 89.3 VD-288Z-02 15.5 25 121.094 1.4310 738.672 18.9 6.1 71.9 | 95.7 | 65.5 | 54.4 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-288T-02 Country of origin: DE, German; Compression spring VD-288T-02 Product image - Compression springs VD-288T-02 QR-Code: Compression spring VD-288T-02
