Compression spring VD-299A Stainless steel Ø 3.2 x 25 x 50.8 mm

Name: VD-299A - Compression springs
SKU: VD-299A
Availability: InStock

Scaled prices - Compression spring VD-299A

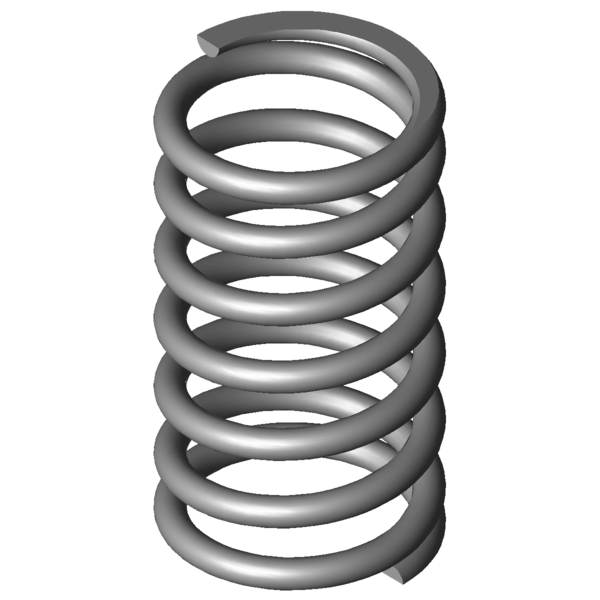

Product image Compression spring VD-299A

Quantity: Add to shopping cart

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	3.2	mm	Wire diameter
Di		mm	Inner coil diameter
D	25	mm	Mean coil diameter
De	28.2	mm	Outer coil diameter
Dd	21	mm	maximum diameter of mandrel
Dh	29.3	mm	minimum diameter of bush
L0	50.8	mm	unstressed spring length
Lk		mm	buckling length
Fn	250.134	N	maximum force in static use
Ln	27.37	mm	Minimum length in static use
sn	23.43	mm	Maximum spring deflection in static use
Fndyn	232.212	N	maximum force in dynamic use
Lndyn	29.05	mm	Minimum length in dynamic use
shdyn	12.79	mm	Maximum stroke in dynamic use
S	8.655	mm	pitch of spring
n	5.5	pc.	number of active coils
nt		pc.	total number of coils
R	10.676	N/mm	Spring rate
Weight	37.4474	g	weight of one spring
Fntol	21.01	N	(+/-) tolerance of maximum force in static use
Fndtol	20.7	N	(+/-) tolerance of maximum dynamic force
Detol	0.35	mm	(+/-) tolerances of outer coil diameter
L0tol	1.34	mm	(+/-) tolerance of unstressed spring length
Price group	P	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force
