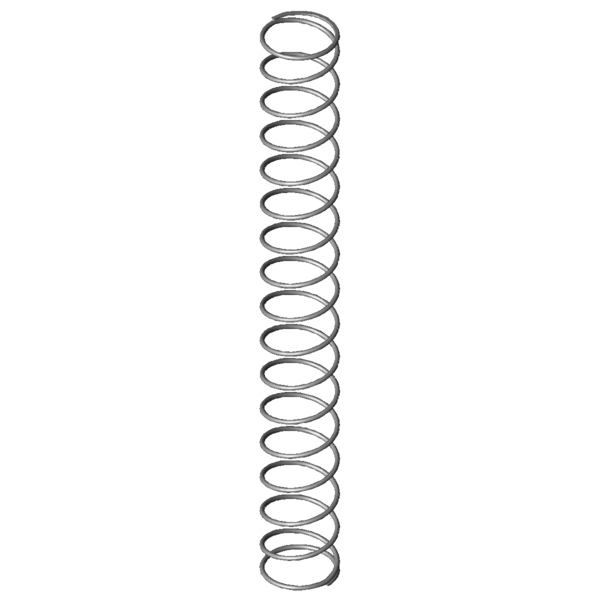

Home » Products » Compression springs » vd-339j Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J Stainless steel Ø 4.5 x 70.5 x 615 mm Scaled prices - Compression spring VD-339J Quantity Single price [EUR] 1 15.4300 EUR 2 12.3000 EUR 3 8.1000 EUR 7 6.2800 EUR 17 4.6900 EUR 37 4.0400 EUR 75 3.9700 EUR 125 3.9700 EUR 175 3.9700 EUR 250 3.9700 EUR 350 3.9700 EUR Compression spring Buy Product image Compression spring VD-339J Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 70.5 mm Mean coil diameter De 75 mm Outer coil diameter Dd 64.1 mm maximum diameter of mandrel Dh 79 mm minimum diameter of bush L0 615 mm unstressed spring length Lk 516.3 mm buckling length Fn 332.691 N maximum force in static use Ln 111.4 mm Minimum length in static use sn 503.6 mm Maximum spring deflection in static use Fndyn 321.906 N maximum force in dynamic use Lndyn 127.73 mm Minimum length in dynamic use shdyn 106.17 mm Maximum stroke in dynamic use S 39.387 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.661 N/mm Spring rate Weight 487.2731 g weight of one spring Fntol 21.59 N (+/-) tolerance of maximum force in static use Fndtol 21.4 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 20.52 mm (+/-) tolerance of unstressed spring length Price group #AO - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J Stainless steel Ø 4.5 x 70.5 x 615 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J Stainless steel Ø 4.5 x 70.5 x 615 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J Stainless steel Ø 4.5 x 70.5 x 615 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J Stainless steel Ø 4.5 x 70.5 x 615 mm force-path-calculation Compression spring VD-339J Inquiry formular Compression spring VD-339J Stainless steel Ø 4.5 x 70.5 x 615 mm Inquiry formular Compression spring VD-339J Customs tariff number: 73202081; Compression spring VD-339J Country of origin: DE, German; Compression spring VD-339J Product image - Compression springs VD-339J QR-Code: Compression spring VD-339J
