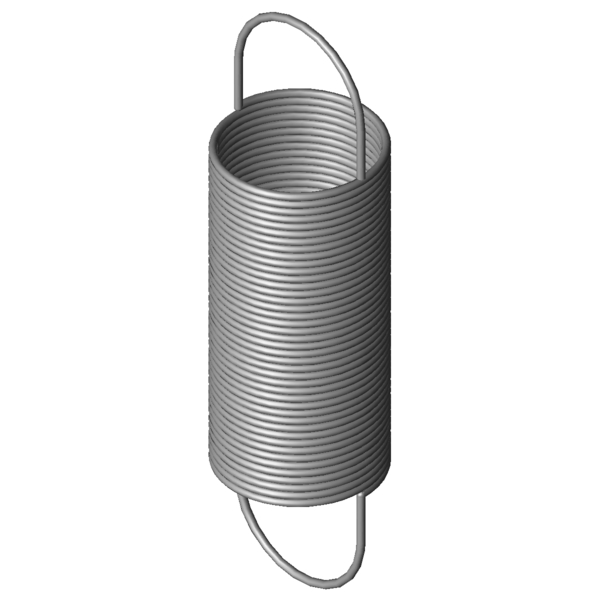

Home » Products » Extension Springs » rz-036aci Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-036ACI Stainless steel Ø 0.5 x 10 x 36.5 mm / 180° Scaled prices - Extension Spring RZ-036ACI Quantity Single price [EUR] 1 6.3400 EUR 2 3.9900 EUR 3 2.6300 EUR 7 2.1900 EUR 17 1.1200 EUR 37 0.7600 EUR 75 0.5700 EUR 125 0.5339 EUR 175 0.5280 EUR 250 0.5147 EUR 350 0.4963 EUR 450 0.4768 EUR Extension Spring Buy Product image Extension Spring RZ-036ACI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-036ACI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 0.5 mm Wire diameter D mm mean coil diameter De 10 mm outer coil diameter Dh 11.1 mm minimum bush diameter L0 36.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 21.75 mm length of unstressed spring body Ln 325.8 mm maximum spring length, inner loop to inner loop sn 289.3 mm Maximum spring deflection Fn 4.351 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 7.37 mm distance of inner edge of loop from the spring body R 0.015 N/mm Spring rate F0 0.011 N initial tension Fntol 0.39 N (+/-) tolerance of maximum spring force L0tol 0.9 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 71 degree (+/-) tolerance of loop position Weight 2.0504 g weight of one spring Price group ZH - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-036ACI Stainless steel Ø 0.5 x 10 x 36.5 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-036ACI Stainless steel Ø 0.5 x 10 x 36.5 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-036ACI Stainless steel Ø 0.5 x 10 x 36.5 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-036ACI Stainless steel Ø 0.5 x 10 x 36.5 mm / 180° force-path-calculation Extension Spring RZ-036ACI Inquiry formular Extension Spring RZ-036ACI Stainless steel Ø 0.5 x 10 x 36.5 mm / 180° Inquiry formular Extension Spring RZ-036ACI Similar extension springs to Extension Spring RZ-036ACI Stainless steel Ø 0.5 x 10 x 36.5 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-036ACI 1.4310 0.5 10 36.5 4.351 325.8 289.3 0.015 100.0 | 100.0 | 100.0 | 100.0 Z-036ACI EN 10270-1 0.5 10 36.5 5.401 344.19 307.69 0.017 91.0 | 100.0 | 87.3 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-036A-01I 10 42 0.012 1.4310 4.351 399.3 357.3 89.0 | 95.6 | 90.5 | 81.0 RZ-036ACI 10 36.5 0.015 1.4310 4.351 325.8 289.3 100.0 | 100.0 | 100.0 | 100.0 RZ-054I 8.6 37.6 0.069 1.4310 9.861 171.47 133.87 51.0 | 87.5 | 45.2 | 20.4 RZ-063E-11I 10 40.4 0.072 1.4310 11.53 192.24 151.84 50.7 | 87.3 | 45.1 | 19.8 RZ-063E-20I 10 31.4 0.111 1.4310 11.53 129.2 97.8 44.8 | 85.8 | 35.8 | 12.8 RZ-066JI 8 39.3 0.137 1.4310 14.3 136.96 97.66 41.3 | 81.4 | 32.1 | 10.3 RZ-068I 10.8 35.5 0.146 1.4310 15.67 135.97 100.47 41.7 | 84.1 | 31.2 | 9.6 RZ-081H-01I 10 43 0.242 1.4310 23.6 133.9 90.9 37.0 | 80.1 | 24.9 | 5.8 RZ-071I 8.8 32.3 0.286 1.4310 19.09 94.88 62.58 35.6 | 79.7 | 22.2 | 4.9 RZ-081HI 10 36.5 0.311 1.4310 23.6 107.21 70.71 37.0 | 85.2 | 21.4 | 4.5 RZ-086I 11 40.4 0.357 1.4310 28.97 114.75 74.35 33.8 | 77.1 | 20.4 | 3.9 RZ-081GI 10 28.4 0.491 1.4310 23.6 73.13 44.73 32.5 | 77.8 | 16.9 | 2.9 RZ-088I 9.4 38 0.603 1.4310 33.65 89.28 51.28 32.5 | 80.0 | 15.3 | 2.3 RZ-081KBI 8.5 31.6 0.608 1.4310 27.55 73.2 41.6 31.0 | 75.7 | 15.1 | 2.3 RZ-100GI 12 34.4 0.638 1.4310 34.95 85.38 50.98 30.5 | 74.3 | 15.0 | 2.2 RZ-092I 9 37.2 0.698 1.4310 35.06 83.02 45.82 31.8 | 79.4 | 14.1 | 2.0 RZ-115E-10I 11.3 42.1 1.282 1.4310 59.25 84.7 42.6 27.8 | 71.2 | 11.0 | 1.1 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring RZ-036ACI Country of origin: DE, German; Extension Spring RZ-036ACI Product image - Extension Springs RZ-036ACI QR-Code: Extension Spring RZ-036ACI
