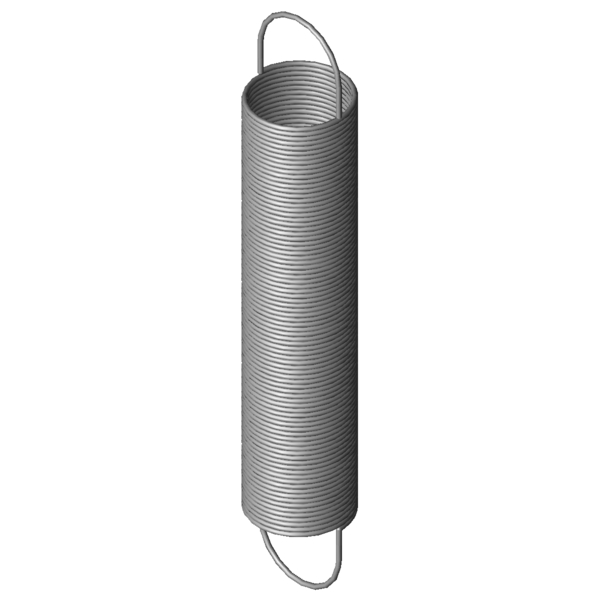

Home » Products » Extension Springs » rz-036aei Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-036AEI Stainless steel Ø 0.5 x 10 x 58.5 mm / 180° Scaled prices - Extension Spring RZ-036AEI Quantity Single price [EUR] 1 6.3400 EUR 2 3.9900 EUR 3 2.6300 EUR 7 2.1900 EUR 17 1.1200 EUR 37 0.7600 EUR 75 0.5700 EUR 125 0.5339 EUR 175 0.5280 EUR 250 0.5147 EUR 350 0.4963 EUR 450 0.4768 EUR Extension Spring Buy Product image Extension Spring RZ-036AEI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-036AEI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 0.5 mm Wire diameter D mm mean coil diameter De 10 mm outer coil diameter Dh 11.1 mm minimum bush diameter L0 58.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 43.75 mm length of unstressed spring body Ln 647.31 mm maximum spring length, inner loop to inner loop sn 588.81 mm Maximum spring deflection Fn 4.351 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 7.37 mm distance of inner edge of loop from the spring body R 0.007 N/mm Spring rate F0 0.011 N initial tension Fntol 0.36 N (+/-) tolerance of maximum spring force L0tol 1.3 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 101 degree (+/-) tolerance of loop position Weight 4.0892 g weight of one spring Price group ZH - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-036AEI Stainless steel Ø 0.5 x 10 x 58.5 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-036AEI Stainless steel Ø 0.5 x 10 x 58.5 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-036AEI Stainless steel Ø 0.5 x 10 x 58.5 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-036AEI Stainless steel Ø 0.5 x 10 x 58.5 mm / 180° force-path-calculation Extension Spring RZ-036AEI Inquiry formular Extension Spring RZ-036AEI Stainless steel Ø 0.5 x 10 x 58.5 mm / 180° Inquiry formular Extension Spring RZ-036AEI Similar extension springs to Extension Spring RZ-036AEI Stainless steel Ø 0.5 x 10 x 58.5 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-036AEI 1.4310 0.5 10 58.5 4.351 647.31 588.81 0.007 100.0 | 100.0 | 100.0 | 100.0 Z-036AEI EN 10270-1 0.5 10 58.5 5.401 684.74 626.24 0.009 91.0 | 100.0 | 87.3 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-036AEI 10 58.5 0.007 1.4310 4.351 647.31 588.81 100.0 | 100.0 | 100.0 | 100.0 RZ-036ADI 10 47.5 0.01 1.4310 4.351 486.55 439.05 85.2 | 93.7 | 87.3 | 74.6 RZ-063E-12I 10 64.4 0.037 1.4310 11.53 357.68 293.28 50.0 | 87.4 | 43.8 | 18.8 RZ-063E-22I 10 49.1 0.054 1.4310 11.53 250.9 201.8 44.7 | 85.1 | 36.0 | 12.9 RZ-069AI 10.8 58.7 0.067 1.4310 15.67 278.1 219.4 42.6 | 84.9 | 32.5 | 10.3 RZ-072CI 8.8 61.9 0.114 1.4310 19.09 219 157.1 37.5 | 81.7 | 24.7 | 6.1 RZ-081KI 10 68 0.128 1.4310 23.6 239.72 171.72 36.6 | 80.5 | 23.8 | 5.4 RZ-072BI 8.8 55.5 0.131 1.4310 19.09 192.16 136.66 36.7 | 81.8 | 23.0 | 5.3 RZ-072F-03I 8 60 0.159 1.4310 20.91 182.87 122.87 35.1 | 80.0 | 20.8 | 4.3 RZ-087AI 11 62.4 0.188 1.4310 28.97 203.52 141.12 33.8 | 78.2 | 19.5 | 3.6 RZ-081JI 10 50 0.193 1.4310 23.6 164 114 34.3 | 80.3 | 18.9 | 3.6 RZ-087I 11 55.4 0.222 1.4310 28.97 175.28 119.88 33.1 | 78.5 | 17.7 | 3.1 RZ-081K-02I 8.5 61.1 0.24 1.4310 27.55 166.68 105.58 32.8 | 78.8 | 16.9 | 2.8 RZ-087GI 10 60 0.264 1.4310 31.73 170.6 110.6 33.8 | 82.5 | 16.2 | 2.6 RZ-087FI 10 50 0.338 1.4310 31.73 136.3 86.3 31.6 | 78.5 | 14.2 | 2.0 RZ-093AI 9 59.2 0.368 1.4310 35.06 146.16 86.96 31.7 | 79.6 | 13.6 | 1.8 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring RZ-036AEI Country of origin: DE, German; Extension Spring RZ-036AEI Product image - Extension Springs RZ-036AEI QR-Code: Extension Spring RZ-036AEI
