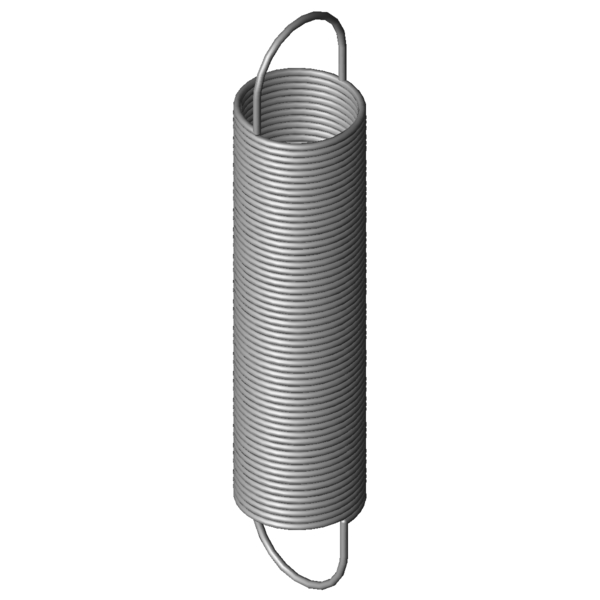

Home » Products » Extension Springs » rz-036lx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-036LX Stainless steel Ø 0.45 x 7.5 x 38 mm / 270° Scaled prices - Extension Spring RZ-036LX Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6356 EUR 175 0.6220 EUR 250 0.6172 EUR 350 0.5899 EUR 450 0.5461 EUR Extension Spring Buy Product image Extension Spring RZ-036LX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-036LX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 0.45 mm Wire diameter D mm mean coil diameter De 7.5 mm outer coil diameter Dh 8.6 mm minimum bush diameter L0 38 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 27.34 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 236.69 mm Maximum spring deflection Fn 4.271 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 5.33 mm distance of inner edge of loop from the spring body R 0.017 N/mm Spring rate F0 0.211 N initial tension Fntol 0.34 N (+/-) tolerance of maximum spring force L0tol 0.9 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 69 degree (+/-) tolerance of loop position Weight 1.7131 g weight of one spring Price group ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-036LX Stainless steel Ø 0.45 x 7.5 x 38 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-036LX Stainless steel Ø 0.45 x 7.5 x 38 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-036LX Stainless steel Ø 0.45 x 7.5 x 38 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-036LX Stainless steel Ø 0.45 x 7.5 x 38 mm / 270° force-path-calculation Extension Spring RZ-036LX Inquiry formular Extension Spring RZ-036LX Stainless steel Ø 0.45 x 7.5 x 38 mm / 270° Inquiry formular Extension Spring RZ-036LX Customs tariff number: 73202085; Extension Spring RZ-036LX Country of origin: DE, German; Extension Spring RZ-036LX Product image - Extension Springs RZ-036LX QR-Code: Extension Spring RZ-036LX
