Extension Spring RZ-045HX Stainless steel Ø 0.5 x 4 x 30 mm / 270°

Scaled prices - Extension Spring RZ-045HX

Quantity Single price [EUR]
1 6.2300 EUR
2 3.9200 EUR
3 2.5300 EUR
7 2.1100 EUR
17 1.0500 EUR
37 0.6800 EUR
75 0.5300 EUR
125 0.4970 EUR
175 0.4834 EUR
250 0.4713 EUR
350 0.4452 EUR
450 0.4355 EUR

Extension Spring Buy

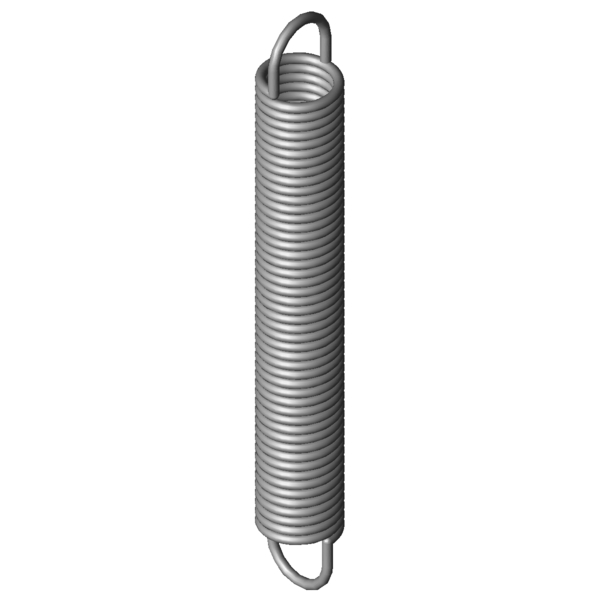

Product image Extension Spring RZ-045HX
Product image Extension Spring RZ-045HX
Quantity: Add to shopping cart

Technical Data - Extension Spring RZ-045HX

Formula symbols Value Unit Description
Material 1.4310 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 0.5 mm Wire diameter
D mm mean coil diameter
De 4 mm outer coil diameter
Dh 4.9 mm minimum bush diameter
L0 30 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 24.88 mm length of unstressed spring body
Ln 67.13 mm maximum spring length, inner loop to inner loop
sn 37.13 mm Maximum spring deflection
Fn 10.52 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 2.56 mm distance of inner edge of loop from the spring body
R 0.262 N/mm Spring rate
F0 0.811 N initial tension
Fntol 0.8 N (+/-) tolerance of maximum spring force
L0tol 0.8 mm (+/-) tolerance of unstressed length
Detol 0.15 mm (+/-) tolerance of outer coil diameter
Oesttol 39 degree (+/-) tolerance of loop position
Weight 0.8623 g weight of one spring
Price group ZG - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring RZ-045HX Stainless steel Ø 0.5 x 4 x 30 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring RZ-045HX Stainless steel Ø 0.5 x 4 x 30 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring RZ-045HX Stainless steel Ø 0.5 x 4 x 30 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring RZ-045HX Stainless steel Ø 0.5 x 4 x 30 mm / 270°

force-path-calculation Extension Spring RZ-045HX

Inquiry formular Extension Spring RZ-045HX Stainless steel Ø 0.5 x 4 x 30 mm / 270°

Inquiry formular Extension Spring RZ-045HX

Similar extension springs to Extension Spring RZ-045HX Stainless steel Ø 0.5 x 4 x 30 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
RZ-045HX 1.4310 0.5 4 30 10.52 67.13 37.13 0.262 100.0 | 100.0 | 100.0 | 100.0
Z-045HX EN 10270-1 0.5 4 30 13.05 69.55 39.55 0.305 91.0 | 100.0 | 87.2 | 85.9
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
RZ-021EX 3.52 29.9 0.036 1.4310 3.331 117.27 87.37 44.8 | 83.9 | 37.1 | 13.5
RZ-021DX 3.52 27.3 0.04 1.4310 3.331 105.68 78.38 45.2 | 81.0 | 39.5 | 15.0
RZ-030DX 4.4 34.2 0.05 1.4310 5.101 130.54 96.34 49.5 | 86.2 | 43.5 | 18.7
RZ-024XX 4 27.2 0.051 1.4310 4.131 104.46 77.26 50.0 | 87.6 | 43.7 | 18.9
RZ-030CX 4.4 31 0.057 1.4310 5.101 116.29 85.29 52.1 | 89.2 | 46.0 | 21.1
RZ-030BX 4.4 27.8 0.065 1.4310 5.101 102.04 74.24 53.8 | 87.9 | 49.3 | 24.3
RZ-030AX 4.4 25 0.075 1.4310 5.101 89.57 64.57 55.2 | 84.7 | 53.0 | 27.9
RZ-033DX 3.6 32.9 0.098 1.4310 6.181 91.45 58.55 61.8 | 87.1 | 61.1 | 37.3
RZ-033CX 3.6 29.7 0.111 1.4310 6.181 81.54 51.84 65.6 | 89.7 | 65.2 | 42.1
RZ-033BX 3.6 26.5 0.127 1.4310 6.181 71.62 45.12 68.3 | 86.1 | 70.5 | 48.4
RZ-042KX 5 30 0.131 1.4310 8.531 90.36 60.36 71.5 | 93.3 | 71.3 | 49.9
RZ-045BX 4.5 33.1 0.159 1.4310 9.421 87.91 54.81 77.5 | 93.2 | 78.6 | 60.7
RZ-045AX 4.5 29.6 0.183 1.4310 9.421 77.27 47.67 83.1 | 95.9 | 83.7 | 69.8
RZ-045X 4.5 26.1 0.215 1.4310 9.421 66.64 40.54 88.2 | 92.0 | 90.6 | 82.0
RZ-045HX 4 30 0.262 1.4310 10.52 67.13 37.13 100.0 | 100.0 | 100.0 | 100.0
RZ-048CX 3.7 35.8 0.27 1.4310 11.31 74.39 38.59 94.5 | 92.1 | 94.6 | 96.7
RZ-036XX 3.2 31.3 0.289 1.4310 9.611 61.56 30.26 88.1 | 88.6 | 86.4 | 89.2
RZ-048BX 3.7 31.8 0.31 1.4310 11.31 65.39 33.59 90.5 | 95.6 | 91.7 | 84.1
RZ-051PX 4 38.2 0.326 1.4310 13.81 76.76 38.56 85.1 | 89.8 | 86.2 | 79.1
RZ-045GX 4 25 0.329 1.4310 10.52 54.5 29.5 87.9 | 94.4 | 89.7 | 79.5
RZ-048AX 3.7 28.3 0.357 1.4310 11.31 57.52 29.22 84.9 | 95.6 | 85.9 | 73.2
RZ-048X 3.7 24.8 0.42 1.4310 11.31 49.64 24.84 78.0 | 91.7 | 80.0 | 62.2
RZ-060E-03X 5 30 0.449 1.4310 16.53 64 34 74.1 | 86.5 | 77.6 | 58.3
RZ-051OX 4 27.2 0.491 1.4310 13.81 52.81 25.61 73.0 | 93.9 | 72.6 | 52.5
RZ-063X 4.6 31.2 0.554 1.4310 17.86 60.88 29.68 68.0 | 87.5 | 69.4 | 47.1
RZ-051TX 3.5 26.4 0.785 1.4310 15.59 44.35 17.95 59.8 | 88.8 | 57.9 | 32.6
RZ-066AX 3.8 34.3 0.926 1.4310 21.21 55.48 21.18 56.3 | 87.3 | 53.3 | 28.3
RZ-066X 3.8 29.9 1.089 1.4310 21.21 47.91 18.01 54.8 | 91.3 | 49.1 | 24.1
RZ-066YX 3.5 32.1 2.407 1.4310 30.41 43.6 11.5 42.5 | 84.1 | 32.8 | 10.7
RZ-081SX 4.5 27.7 4.97 1.4310 48.85 36.58 8.88 35.6 | 78.9 | 22.7 | 5.2
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring RZ-045HX
