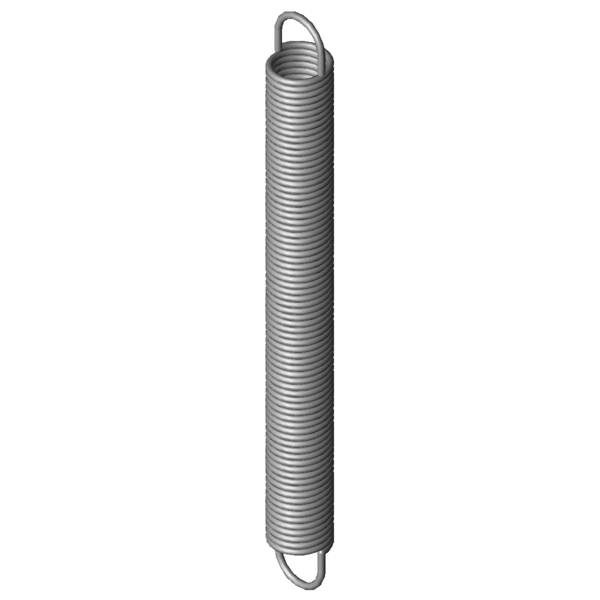

Home » Products » Extension Springs » rz-130k-06i Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Extension Spring RZ-130K-06I Stainless steel Ø 1.8 x 16 x 159 mm / 180° Scaled prices - Extension Spring RZ-130K-06I Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 2.1500 EUR 37 1.6600 EUR 75 1.5600 EUR 125 1.4694 EUR 175 1.4104 EUR 250 1.3742 EUR 350 1.3257 EUR 450 1.2285 EUR Extension Spring Buy Product image Extension Spring RZ-130K-06I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-130K-06I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm prestressed spring deflection F2 - N loaded spring force L2 - mm loaded spring length s2 - mm loaded spring deflection Eyelet position 180 ° Eyelet position d 1.8 mm Wire diameter D - mm mean coil diameter De 16 mm outer coil diameter Dh 19 mm minimum bush diameter L0 159 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 137.7 mm length of unstressed spring body Ln - mm maximum spring length, inner loop to inner loop sn 228.61 mm Maximum spring deflection Fn 105 N Maximum spring force n - pc. Number of aktive coils nt - pc. total number of coils Lh 10.65 mm distance of inner edge of loop from the spring body R 0.425 N/mm Spring rate F0 7.911 N initial tension Fntol 5.99 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 50 degree (+/-) tolerance of loop position Weight 69.341 g weight of one spring Price group ZR - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-130K-06I Stainless steel Ø 1.8 x 16 x 159 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-130K-06I Stainless steel Ø 1.8 x 16 x 159 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-130K-06I Stainless steel Ø 1.8 x 16 x 159 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-130K-06I Stainless steel Ø 1.8 x 16 x 159 mm / 180° force-path-calculation Extension Spring RZ-130K-06I Inquiry formular Extension Spring RZ-130K-06I Stainless steel Ø 1.8 x 16 x 159 mm / 180° Inquiry formular Extension Spring RZ-130K-06I Customs tariff number: 73202085; Extension Spring RZ-130K-06I Country of origin: DE, German; Extension Spring RZ-130K-06I Product image - Extension Springs RZ-130K-06I QR-Code: Extension Spring RZ-130K-06I
