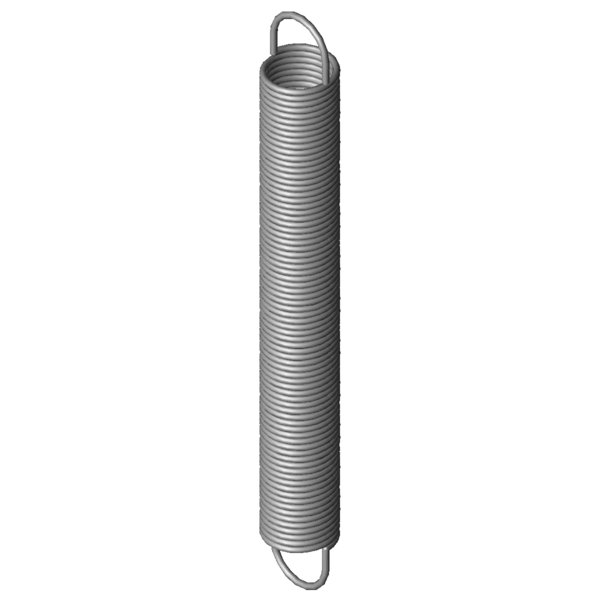

Home » Products » Extension Springs » rz-136ei Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-136EI Stainless steel Ø 2 x 22 x 186 mm / 180° Scaled prices - Extension Spring RZ-136EI Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 2.1500 EUR 37 1.6600 EUR 75 1.5600 EUR 125 1.4694 EUR 175 1.4104 EUR 250 1.3742 EUR 350 1.3257 EUR 450 1.2285 EUR Extension Spring Buy Product image Extension Spring RZ-136EI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-136EI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 22 mm outer coil diameter Dh 25.5 mm minimum bush diameter L0 186 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 157 mm length of unstressed spring body Ln 612.49 mm maximum spring length, inner loop to inner loop sn 426.49 mm Maximum spring deflection Fn 103.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.5 mm distance of inner edge of loop from the spring body R 0.226 N/mm Spring rate F0 7.101 N initial tension Fntol 5.58 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 57 degree (+/-) tolerance of loop position Weight 123.6937 g weight of one spring Price group ZR - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-136EI Stainless steel Ø 2 x 22 x 186 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-136EI Stainless steel Ø 2 x 22 x 186 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-136EI Stainless steel Ø 2 x 22 x 186 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-136EI Stainless steel Ø 2 x 22 x 186 mm / 180° force-path-calculation Extension Spring RZ-136EI Inquiry formular Extension Spring RZ-136EI Stainless steel Ø 2 x 22 x 186 mm / 180° Inquiry formular Extension Spring RZ-136EI Similar extension springs to Extension Spring RZ-136EI Stainless steel Ø 2 x 22 x 186 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-136EI 1.4310 2 22 186 103.4 612.49 426.49 0.226 80.5 | 90.6 | 82.6 | 68.3 Z-136EI EN 10270-1 2 22 186 123.3 621.36 435.36 0.263 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-118DI 21.6 172 0.082 1.4310 56.93 827.8 655.8 53.5 | 86.4 | 49.6 | 24.4 RZ-130E-15I 24 178 0.107 1.4310 73.5 830.7 652.7 59.9 | 91.7 | 56.4 | 31.7 RZ-130K-02I 20 170 0.194 1.4310 84.95 579.3 409.3 74.3 | 87.6 | 76.9 | 58.5 RZ-136EI 22 186 0.226 1.4310 103.4 612.49 426.49 80.5 | 90.6 | 82.6 | 68.3 RZ-136DI 22 170 0.252 1.4310 103.4 552.46 382.46 85.6 | 93.4 | 87.3 | 76.1 RZ-136CI 22 154 0.285 1.4310 103.4 492.44 338.44 89.4 | 91.8 | 90.4 | 86.0 RZ-147KI 24 166 0.333 1.4310 123.7 514.4 348.4 100.0 | 100.0 | 100.0 | 100.0 RZ-141EI 18 180 0.441 1.4310 125.1 442.2 262.2 71.9 | 92.9 | 72.1 | 50.8 RZ-156DI 22.5 205 0.615 1.4310 186.1 485.02 280.02 62.2 | 89.5 | 60.6 | 36.5 RZ-156CI 22.5 185 0.695 1.4310 186.1 432.79 247.79 68.9 | 90.5 | 68.8 | 47.3 RZ-156BI 22.5 165 0.799 1.4310 186.1 380.55 215.55 66.3 | 93.7 | 64.2 | 41.1 RZ-162K-03I 25 199 0.84 1.4310 229.9 452.08 253.08 62.8 | 86.0 | 63.2 | 39.1 RZ-156NI 20 211 0.868 1.4310 207.8 432.11 221.11 54.3 | 86.4 | 50.8 | 25.8 RZ-156MI 20 203.5 0.905 1.4310 207.8 415.59 212.09 54.0 | 87.4 | 49.7 | 24.7 RZ-156LI 20 191 0.974 1.4310 207.8 388.05 197.05 53.5 | 89.4 | 48.0 | 23.0 RZ-162K-02I 25 171 1.014 1.4310 229.9 380.82 209.82 60.0 | 90.5 | 57.0 | 32.4 RZ-156KI 20 163.5 1.17 1.4310 207.8 327.45 163.95 57.1 | 89.9 | 53.3 | 28.0 RZ-159CI 18.5 179 1.357 1.4310 223.4 330.38 151.38 48.0 | 86.8 | 40.9 | 16.4 RZ-162U-34I 24 193 1.43 1.4310 287.9 378.92 185.92 52.5 | 86.4 | 48.2 | 22.9 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring RZ-136EI Country of origin: DE, German; Extension Spring RZ-136EI Product image - Extension Springs RZ-136EI QR-Code: Extension Spring RZ-136EI
