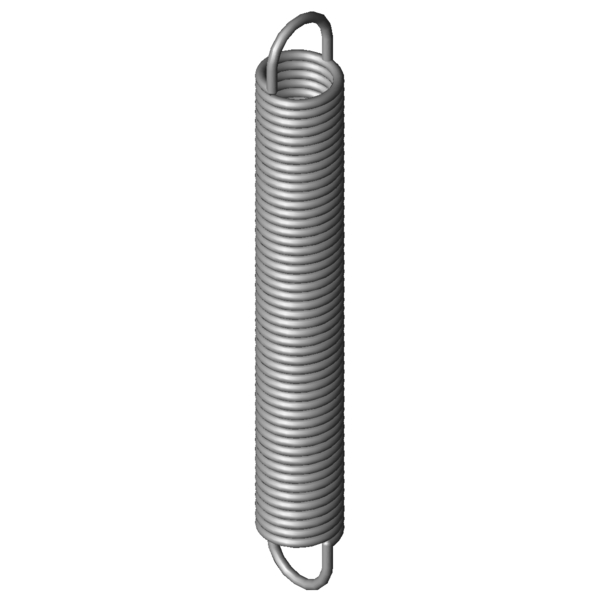

Home » Products » Extension Springs » rz-141hx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-141HX Stainless steel Ø 2 x 16 x 121 mm / 270° Scaled prices - Extension Spring RZ-141HX Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 1.5300 EUR 37 1.2300 EUR 75 1.0500 EUR 125 1.0500 EUR 175 1.0500 EUR 250 1.0500 EUR 350 1.0500 EUR 450 1.0500 EUR Extension Spring Buy Product image Extension Spring RZ-141HX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-141HX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 16 mm outer coil diameter Dh 19.3 mm minimum bush diameter L0 121 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 101.5 mm length of unstressed spring body Ln 245.97 mm maximum spring length, inner loop to inner loop sn 124.97 mm Maximum spring deflection Fn 139.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 9.75 mm distance of inner edge of loop from the spring body R 1.026 N/mm Spring rate F0 11.6 N initial tension Fntol 8.79 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 40 degree (+/-) tolerance of loop position Weight 56.267 g weight of one spring Price group #ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-141HX Stainless steel Ø 2 x 16 x 121 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-141HX Stainless steel Ø 2 x 16 x 121 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-141HX Stainless steel Ø 2 x 16 x 121 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-141HX Stainless steel Ø 2 x 16 x 121 mm / 270° force-path-calculation Extension Spring RZ-141HX Inquiry formular Extension Spring RZ-141HX Stainless steel Ø 2 x 16 x 121 mm / 270° Inquiry formular Extension Spring RZ-141HX Similar extension springs to Extension Spring RZ-141HX Stainless steel Ø 2 x 16 x 121 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-141HX 1.4310 2 16 121 139.7 245.97 124.97 1.026 100.0 | 100.0 | 100.0 | 100.0 Z-141HX EN 10270-1 2 16 121 166.7 248.48 127.48 1.194 92.1 | 100.0 | 90.9 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115V-27X 15 125.5 0.258 1.4310 67.55 367.24 241.74 54.5 | 88.4 | 50.0 | 25.0 RZ-121BX 17.6 111 0.26 1.4310 69.37 358.16 247.16 54.3 | 87.5 | 50.1 | 25.1 RZ-115V-26X 15 113.5 0.292 1.4310 67.55 327.52 214.02 56.4 | 87.5 | 53.4 | 28.2 RZ-121NX 15.5 133 0.306 1.4310 78.31 369.84 236.84 57.8 | 89.3 | 54.4 | 29.6 RZ-115V-25X 15 101.5 0.335 1.4310 67.55 287.79 186.29 58.1 | 84.2 | 57.7 | 32.4 RZ-121MX 15.5 120 0.346 1.4310 78.31 329.67 209.67 61.1 | 92.0 | 57.8 | 33.4 RZ-121LX 15.5 107.5 0.397 1.4310 78.31 290.01 182.51 63.1 | 88.6 | 62.3 | 38.4 RZ-124DX 14.1 131 0.421 1.4310 85.63 319.47 188.47 63.8 | 86.8 | 63.8 | 40.6 RZ-121KX 15.5 96 0.457 1.4310 78.31 254.74 158.74 65.6 | 85.4 | 67.4 | 44.1 RZ-124CX 14.1 118 0.475 1.4310 85.63 284.86 166.86 67.5 | 88.5 | 68.1 | 45.9 RZ-130K-05X 16 134 0.52 1.4310 105 320.97 186.97 71.6 | 93.4 | 71.0 | 50.2 RZ-141BX 18 132 0.636 1.4310 125.1 313.9 181.9 78.1 | 93.5 | 79.1 | 61.5 RZ-130K-04X 16 109 0.658 1.4310 105 256.61 147.61 79.0 | 93.4 | 79.9 | 63.6 RZ-141AX 18 118 0.731 1.4310 125.1 276.28 158.28 83.5 | 95.5 | 84.3 | 70.7 RZ-141HX 16 121 1.026 1.4310 139.7 245.97 124.97 100.0 | 100.0 | 100.0 | 100.0 RZ-144BX 14.5 126 1.334 1.4310 153 230.81 104.81 86.6 | 95.6 | 87.6 | 76.6 RZ-144AX 14.5 112 1.533 1.4310 153 203.16 91.16 81.0 | 94.4 | 82.1 | 66.6 RZ-159X 18.5 124 2.099 1.4310 223.4 221.85 97.85 69.1 | 88.0 | 70.4 | 49.0 RZ-147OX 15 107 2.459 1.4310 192.2 178.42 71.42 65.8 | 91.0 | 64.9 | 41.5 RZ-162AX 15 136 3.743 1.4310 269.8 201.83 65.83 55.7 | 87.6 | 52.2 | 27.3 RZ-162X 15 118 4.402 1.4310 269.8 173.97 55.97 54.0 | 90.4 | 48.3 | 23.2 RZ-162U-41X 18 123.5 6.222 1.4310 373.9 177.97 54.47 47.1 | 84.5 | 40.5 | 16.3 RZ-162TX 14 128 9.631 1.4310 386.7 164.35 36.35 42.5 | 84.5 | 32.6 | 10.5 RZ-177SX 18 111 19.886 1.4310 617.1 139.15 28.15 35.5 | 78.7 | 22.6 | 5.1 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring RZ-141HX Country of origin: DE, German; Extension Spring RZ-141HX Product image - Extension Springs RZ-141HX QR-Code: Extension Spring RZ-141HX
