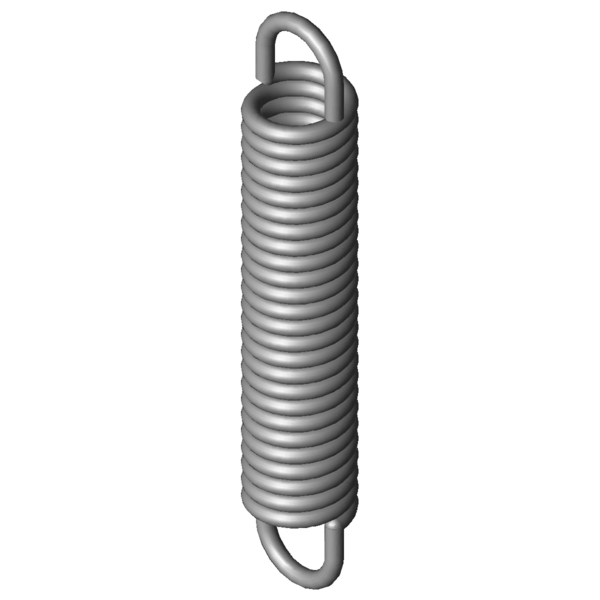

Home » Products » Extension Springs » rz-146ai Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-146AI Stainless steel Ø 2 x 12 x 66.8 mm / 180° Scaled prices - Extension Spring RZ-146AI Quantity Single price [EUR] 1 6.5600 EUR 2 4.1300 EUR 3 2.9300 EUR 7 2.5000 EUR 17 1.2300 EUR 37 0.9300 EUR 75 0.7600 EUR 125 0.7600 EUR 175 0.7600 EUR 250 0.7600 EUR 350 0.7600 EUR 450 0.7600 EUR Extension Spring Buy Product image Extension Spring RZ-146AI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-146AI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 12 mm outer coil diameter Dh 15.3 mm minimum bush diameter L0 66.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 53 mm length of unstressed spring body Ln 97 mm maximum spring length, inner loop to inner loop sn 30.2 mm Maximum spring deflection Fn 181.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 6.9 mm distance of inner edge of loop from the spring body R 5.49 N/mm Spring rate F0 15.7 N initial tension Fntol 17.94 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.25 mm (+/-) tolerance of outer coil diameter Oesttol 27 degree (+/-) tolerance of loop position Weight 21.266 g weight of one spring Price group #ZK - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-146AI Stainless steel Ø 2 x 12 x 66.8 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-146AI Stainless steel Ø 2 x 12 x 66.8 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-146AI Stainless steel Ø 2 x 12 x 66.8 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-146AI Stainless steel Ø 2 x 12 x 66.8 mm / 180° force-path-calculation Extension Spring RZ-146AI Inquiry formular Extension Spring RZ-146AI Stainless steel Ø 2 x 12 x 66.8 mm / 180° Inquiry formular Extension Spring RZ-146AI Similar extension springs to Extension Spring RZ-146AI Stainless steel Ø 2 x 12 x 66.8 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-146AI 1.4310 2 12 66.8 181.5 97 30.2 5.49 100.0 | 100.0 | 100.0 | 100.0 Z-146AI EN 10270-1 2 12 66.8 216.4 97.58 30.78 6.392 92.2 | 100.0 | 91.0 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-106FI 12.7 71.3 0.335 1.4310 47.55 202.22 130.92 38.1 | 83.6 | 24.6 | 6.0 RZ-109AI 11.2 74 0.466 1.4310 53.56 180.3 106.3 39.8 | 82.0 | 29.0 | 8.4 RZ-115E-12I 11.3 75.5 0.549 1.4310 59.25 175 99.5 41.3 | 82.5 | 31.5 | 9.9 RZ-109I 11.2 61.2 0.594 1.4310 53.56 144.64 83.44 42.0 | 82.5 | 32.9 | 10.7 RZ-109HI 10 72 0.686 1.4310 59.56 152.27 80.27 42.4 | 79.5 | 35.2 | 12.3 RZ-115E-11I 11.3 59 0.769 1.4310 59.25 130.1 71.1 44.6 | 82.5 | 37.6 | 13.9 RZ-115V-33I 12 77 0.945 1.4310 83.35 159.11 82.11 48.5 | 87.3 | 41.4 | 16.9 RZ-115V-32I 12 66.5 1.142 1.4310 83.35 134.42 67.92 52.4 | 91.5 | 45.2 | 20.4 RZ-124FI 12.7 68 1.31 1.4310 94.45 135 67 54.3 | 90.9 | 48.6 | 23.5 RZ-115PI 10 68.9 1.338 1.4310 81.51 123.93 55.03 52.7 | 83.4 | 49.9 | 24.6 RZ-115V-31I 12 57.5 1.391 1.4310 83.35 113.26 55.76 54.0 | 87.0 | 50.0 | 24.9 RZ-127I 11.6 79 1.452 1.4310 102.6 144.28 65.28 54.9 | 87.1 | 51.4 | 26.2 RZ-126I 11.6 55 2.341 1.4310 102.6 95.49 40.49 64.7 | 86.3 | 65.6 | 42.2 RZ-130NI 12 60.2 3.533 1.4310 137 95.88 35.68 79.1 | 93.4 | 80.1 | 63.9 RZ-146AI 12 66.8 5.49 1.4310 181.5 97 30.2 100.0 | 100.0 | 100.0 | 100.0 RZ-146I 12 54.8 7.179 1.4310 181.5 77.89 23.09 86.2 | 94.0 | 88.2 | 76.5 RZ-147SI 11 67.8 12.277 1.4310 251.8 86.28 18.48 68.1 | 93.7 | 66.6 | 44.1 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring RZ-146AI Country of origin: DE, German; Extension Spring RZ-146AI Product image - Extension Springs RZ-146AI QR-Code: Extension Spring RZ-146AI
