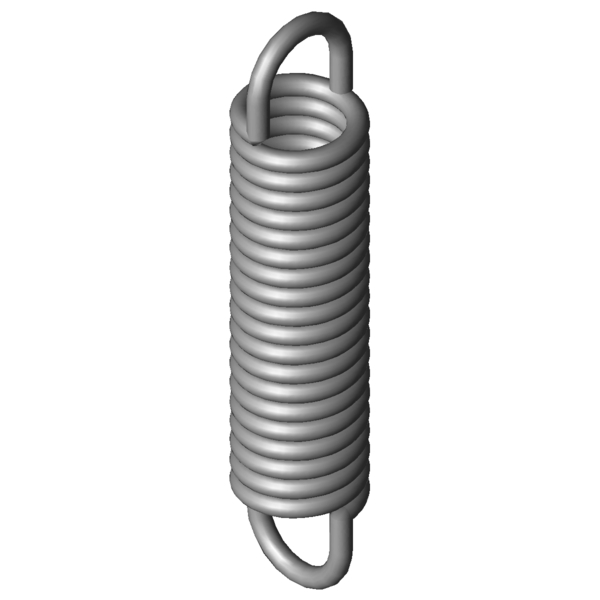

Home » Products » Extension Springs » rz-146x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-146X Stainless steel Ø 2 x 12 x 54.8 mm / 270° Scaled prices - Extension Spring RZ-146X Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6900 EUR 175 0.6900 EUR 250 0.6900 EUR 350 0.6900 EUR 450 0.6900 EUR Extension Spring Buy Product image Extension Spring RZ-146X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-146X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 12 mm outer coil diameter Dh 15.3 mm minimum bush diameter L0 54.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 41.5 mm length of unstressed spring body Ln 78.19 mm maximum spring length, inner loop to inner loop sn 23.39 mm Maximum spring deflection Fn 181.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 6.65 mm distance of inner edge of loop from the spring body R 7.089 N/mm Spring rate F0 15.7 N initial tension Fntol 18.97 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.25 mm (+/-) tolerance of outer coil diameter Oesttol 24 degree (+/-) tolerance of loop position Weight 16.7786 g weight of one spring Price group #ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-146X Stainless steel Ø 2 x 12 x 54.8 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-146X Stainless steel Ø 2 x 12 x 54.8 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-146X Stainless steel Ø 2 x 12 x 54.8 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-146X Stainless steel Ø 2 x 12 x 54.8 mm / 270° force-path-calculation Extension Spring RZ-146X Inquiry formular Extension Spring RZ-146X Stainless steel Ø 2 x 12 x 54.8 mm / 270° Inquiry formular Extension Spring RZ-146X Similar extension springs to Extension Spring RZ-146X Stainless steel Ø 2 x 12 x 54.8 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-146X 1.4310 2 12 54.8 181.5 78.19 23.39 7.089 100.0 | 100.0 | 100.0 | 100.0 Z-146X EN 10270-1 2 12 54.8 216.4 78.34 23.54 8.253 92.0 | 100.0 | 91.6 | 84.4 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-106E-11X 12.7 50.2 0.553 1.4310 47.55 129.5 79.3 39.5 | 82.9 | 27.8 | 7.7 RZ-109X 11.2 61.2 0.59 1.4310 53.56 145.21 84.01 39.6 | 81.8 | 28.7 | 8.2 RZ-115E-11X 11.3 59 0.763 1.4310 59.25 130.6 71.6 42.4 | 84.0 | 32.7 | 10.7 RZ-109GX 10 59.5 0.868 1.4310 59.56 122.94 63.44 42.1 | 79.3 | 34.8 | 12.1 RZ-108X 11.2 46.5 0.876 1.4310 53.56 103.08 56.58 42.6 | 80.2 | 35.4 | 12.2 RZ-115V-32X 12 66.5 1.134 1.4310 83.35 134.93 68.43 47.2 | 85.8 | 40.1 | 15.7 RZ-123X 14.1 59 1.186 1.4310 85.63 125.88 66.88 47.9 | 86.0 | 41.1 | 16.5 RZ-115V-31X 12 57.5 1.379 1.4310 83.35 113.76 56.26 51.0 | 90.1 | 43.7 | 19.1 RZ-124F-02X 12.7 52 1.928 1.4310 94.45 97.5 45.5 56.1 | 89.8 | 51.7 | 26.8 RZ-126X 11.6 55 2.317 1.4310 102.6 95.91 40.91 60.4 | 92.1 | 56.9 | 32.3 RZ-130NX 12 60.2 3.497 1.4310 137 96.24 36.04 71.0 | 93.7 | 70.2 | 49.0 RZ-129X 9.6 51.8 4.525 1.4310 121.7 76.6 24.8 76.3 | 84.8 | 80.7 | 63.2 RZ-146AX 12 66.8 5.437 1.4310 181.5 97.3 30.5 86.3 | 94.0 | 88.3 | 76.7 RZ-130MX 12 44 5.496 1.4310 137 66.94 22.94 84.6 | 90.1 | 86.8 | 77.0 RZ-146X 12 54.8 7.089 1.4310 181.5 78.19 23.39 100.0 | 100.0 | 100.0 | 100.0 RZ-147E-03X 10 57.6 12.019 1.4310 212 73.29 15.69 75.5 | 92.8 | 76.3 | 57.4 RZ-147RX 11 48 19.097 1.4310 251.8 59.88 11.88 62.7 | 90.1 | 61.4 | 36.6 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring RZ-146X Country of origin: DE, German; Extension Spring RZ-146X Product image - Extension Springs RZ-146X QR-Code: Extension Spring RZ-146X
