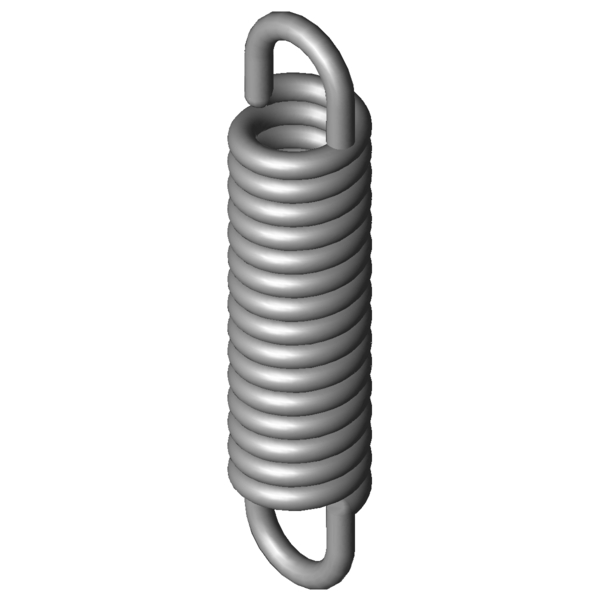

Home » Products » Extension Springs » rz-147ri Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-147RI Stainless steel Ø 2.2 x 11 x 48 mm / 180° Scaled prices - Extension Spring RZ-147RI Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6900 EUR 175 0.6900 EUR 250 0.6900 EUR 350 0.6900 EUR 450 0.6900 EUR Extension Spring Buy Product image Extension Spring RZ-147RI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-147RI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2.2 mm Wire diameter D mm mean coil diameter De 11 mm outer coil diameter Dh 14.7 mm minimum bush diameter L0 48 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 36.3 mm length of unstressed spring body Ln 59.69 mm maximum spring length, inner loop to inner loop sn 11.69 mm Maximum spring deflection Fn 251.8 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 5.85 mm distance of inner edge of loop from the spring body R 19.405 N/mm Spring rate F0 25 N initial tension Fntol 37.11 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 14.3343 g weight of one spring Price group #ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-147RI Stainless steel Ø 2.2 x 11 x 48 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-147RI Stainless steel Ø 2.2 x 11 x 48 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-147RI Stainless steel Ø 2.2 x 11 x 48 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-147RI Stainless steel Ø 2.2 x 11 x 48 mm / 180° force-path-calculation Extension Spring RZ-147RI Inquiry formular Extension Spring RZ-147RI Stainless steel Ø 2.2 x 11 x 48 mm / 180° Inquiry formular Extension Spring RZ-147RI Similar extension springs to Extension Spring RZ-147RI Stainless steel Ø 2.2 x 11 x 48 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-147RI 1.4310 2.2 11 48 251.8 59.69 11.69 19.405 100.0 | 100.0 | 100.0 | 100.0 Z-147RI EN 10270-1 2.2 11 48 301.2 59.95 11.95 22.593 92.1 | 100.0 | 90.7 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-100HI 12 44.3 0.404 1.4310 34.95 124.89 80.59 31.4 | 78.0 | 14.2 | 2.0 RZ-106E-11I 12.7 50.2 0.558 1.4310 47.55 128.8 78.6 33.1 | 79.7 | 16.9 | 2.8 RZ-115E-11I 11.3 59 0.769 1.4310 59.25 130.1 71.1 34.4 | 79.3 | 20.0 | 3.9 RZ-108I 11.2 46.5 0.885 1.4310 53.56 102.51 56.01 36.5 | 84.0 | 21.1 | 4.4 RZ-109FI 10 47 1.203 1.4310 59.56 92.74 45.74 37.5 | 81.9 | 24.6 | 6.0 RZ-115E-10I 11.3 42.1 1.282 1.4310 59.25 84.7 42.6 37.8 | 81.4 | 25.5 | 6.5 RZ-111I 9.2 43.3 1.735 1.4310 64.34 77.26 33.96 38.6 | 76.9 | 30.0 | 8.8 RZ-124F-02I 12.7 52 1.95 1.4310 94.45 97 45 41.8 | 83.9 | 31.7 | 9.7 RZ-115OI 10 47.9 2.157 1.4310 81.51 82.03 34.13 43.1 | 84.8 | 33.3 | 11.1 RZ-126I 11.6 55 2.341 1.4310 102.6 95.49 40.49 43.8 | 84.9 | 34.8 | 11.8 RZ-129I 9.6 51.8 4.571 1.4310 121.7 76.35 24.55 51.7 | 84.2 | 48.0 | 23.0 RZ-130MI 12 44 5.584 1.4310 137 66.57 22.57 56.6 | 88.4 | 53.1 | 28.2 RZ-146I 12 54.8 7.179 1.4310 181.5 77.89 23.09 62.6 | 90.1 | 61.4 | 36.5 RZ-147E-02I 10 41.6 18.858 1.4310 212 51.6 10 90.9 | 89.5 | 84.9 | 98.4 RZ-147RI 11 48 19.405 1.4310 251.8 59.69 11.69 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202085; Extension Spring RZ-147RI Country of origin: DE, German; Extension Spring RZ-147RI Product image - Extension Springs RZ-147RI QR-Code: Extension Spring RZ-147RI
