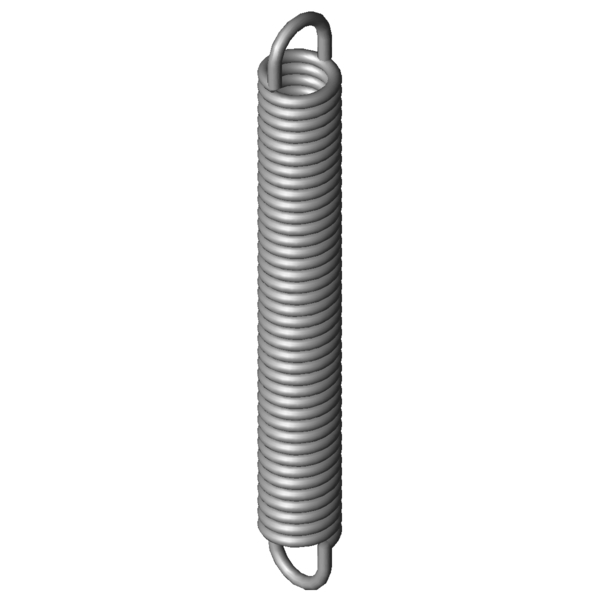

Home » Products » Extension Springs » rz-147x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-147X Stainless steel Ø 2 x 12 x 94.8 mm / 270° Scaled prices - Extension Spring RZ-147X Quantity Single price [EUR] 1 6.5600 EUR 2 4.1300 EUR 3 2.9300 EUR 7 2.5000 EUR 17 1.2300 EUR 37 0.9300 EUR 75 0.7600 EUR 125 0.7600 EUR 175 0.7600 EUR 250 0.7600 EUR 350 0.7600 EUR 450 0.7600 EUR Extension Spring Buy Product image Extension Spring RZ-147X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-147X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 12 mm outer coil diameter Dh 15.3 mm minimum bush diameter L0 94.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.5 mm length of unstressed spring body Ln 141.87 mm maximum spring length, inner loop to inner loop sn 47.07 mm Maximum spring deflection Fn 181.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 6.65 mm distance of inner edge of loop from the spring body R 3.522 N/mm Spring rate F0 15.7 N initial tension Fntol 16.48 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.25 mm (+/-) tolerance of outer coil diameter Oesttol 34 degree (+/-) tolerance of loop position Weight 32.3867 g weight of one spring Price group #ZK - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-147X Stainless steel Ø 2 x 12 x 94.8 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-147X Stainless steel Ø 2 x 12 x 94.8 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-147X Stainless steel Ø 2 x 12 x 94.8 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-147X Stainless steel Ø 2 x 12 x 94.8 mm / 270° force-path-calculation Extension Spring RZ-147X Inquiry formular Extension Spring RZ-147X Stainless steel Ø 2 x 12 x 94.8 mm / 270° Inquiry formular Extension Spring RZ-147X Similar extension springs to Extension Spring RZ-147X Stainless steel Ø 2 x 12 x 94.8 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-147X 1.4310 2 12 94.8 181.5 141.87 47.07 3.522 100.0 | 100.0 | 100.0 | 100.0 Z-147X EN 10270-1 2 12 94.8 216.4 142.76 47.96 4.101 92.2 | 100.0 | 91.0 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-124AX 14.1 94.2 0.628 1.4310 85.63 220.52 126.32 49.3 | 88.2 | 42.2 | 17.6 RZ-115V-35X 12 96.5 0.712 1.4310 83.35 205.48 108.98 51.8 | 91.1 | 44.6 | 19.8 RZ-115V-34X 12 86 0.818 1.4310 83.35 180.79 94.79 53.1 | 88.6 | 47.8 | 22.8 RZ-115QX 10 96.9 0.884 1.4310 81.51 180.14 83.24 53.3 | 83.7 | 50.7 | 25.4 RZ-124GX 12.7 92 0.897 1.4310 94.45 189.88 97.88 55.2 | 90.5 | 50.1 | 25.0 RZ-115V-33X 12 77 0.939 1.4310 83.35 159.62 82.62 54.3 | 85.4 | 51.4 | 26.2 RZ-127BX 11.6 104 1.029 1.4310 102.6 196.14 92.14 57.3 | 89.3 | 53.8 | 28.9 RZ-127AX 11.6 93.6 1.176 1.4310 102.6 174.17 80.57 60.8 | 91.8 | 57.5 | 33.0 RZ-127X 11.6 79 1.443 1.4310 102.6 144.7 65.7 63.8 | 86.7 | 64.1 | 40.5 RZ-144X 14.5 98.8 1.803 1.4310 153 176.37 77.57 72.2 | 92.9 | 72.5 | 51.2 RZ-130BX 9.6 98.2 2.084 1.4310 121.7 152.07 53.87 73.8 | 85.5 | 77.2 | 58.6 RZ-130OX 12 87.2 2.178 1.4310 137 145.09 57.89 77.9 | 94.0 | 78.4 | 61.4 RZ-147AX 12 108 2.995 1.4310 181.5 163.36 55.36 91.2 | 95.9 | 92.5 | 85.0 RZ-147AAX 12 96.8 3.436 1.4310 181.5 145.06 48.26 98.5 | 99.3 | 98.8 | 97.5 RZ-147X 12 94.8 3.522 1.4310 181.5 141.87 47.07 100.0 | 100.0 | 100.0 | 100.0 RZ-147TX 11 101 7.567 1.4310 251.8 130.98 29.98 68.6 | 92.1 | 67.9 | 45.9 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring RZ-147X Country of origin: DE, German; Extension Spring RZ-147X Product image - Extension Springs RZ-147X QR-Code: Extension Spring RZ-147X
