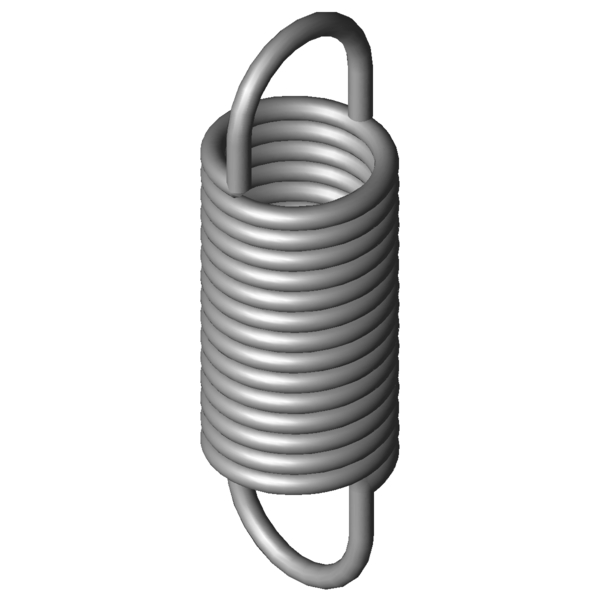

Home » Products » Extension Springs » rz-156fx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-156FX Stainless steel Ø 2.5 x 20 x 63.5 mm / 270° Scaled prices - Extension Spring RZ-156FX Quantity Single price [EUR] 1 6.7100 EUR 2 4.2300 EUR 3 3.0800 EUR 7 2.6300 EUR 17 1.3800 EUR 37 1.0500 EUR 75 0.8600 EUR 125 0.8600 EUR 175 0.8600 EUR 250 0.8600 EUR 350 0.8600 EUR 450 0.8600 EUR Extension Spring Buy Product image Extension Spring RZ-156FX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-156FX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 20 mm outer coil diameter Dh 24.1 mm minimum bush diameter L0 63.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 39.38 mm length of unstressed spring body Ln 107.87 mm maximum spring length, inner loop to inner loop sn 44.37 mm Maximum spring deflection Fn 207.8 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 12.06 mm distance of inner edge of loop from the spring body R 4.323 N/mm Spring rate F0 16 N initial tension Fntol 16.32 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 35.2138 g weight of one spring Price group #ZL - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-156FX Stainless steel Ø 2.5 x 20 x 63.5 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-156FX Stainless steel Ø 2.5 x 20 x 63.5 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-156FX Stainless steel Ø 2.5 x 20 x 63.5 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-156FX Stainless steel Ø 2.5 x 20 x 63.5 mm / 270° force-path-calculation Extension Spring RZ-156FX Inquiry formular Extension Spring RZ-156FX Stainless steel Ø 2.5 x 20 x 63.5 mm / 270° Inquiry formular Extension Spring RZ-156FX Similar extension springs to Extension Spring RZ-156FX Stainless steel Ø 2.5 x 20 x 63.5 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-156FX 1.4310 2.5 20 63.5 207.8 107.87 44.37 4.323 100.0 | 100.0 | 100.0 | 100.0 Z-156FX EN 10270-1 2.5 20 63.5 249.9 109.14 45.64 5.034 91.9 | 100.0 | 90.2 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115V-10X 20 48.9 0.509 1.4310 51.22 143.27 94.37 42.1 | 79.0 | 35.8 | 11.6 RZ-130E-11X 24 64.2 0.533 1.4310 73.5 195.1 130.9 43.8 | 84.7 | 34.6 | 12.0 RZ-120X 17.6 64.6 0.566 1.4310 69.37 178.41 113.81 44.2 | 83.4 | 36.2 | 13.0 RZ-130HX 20 73 0.616 1.4310 84.95 202.05 129.05 46.0 | 86.3 | 37.6 | 14.1 RZ-135AX 22 72.8 0.843 1.4310 103.4 186.99 114.19 49.9 | 86.0 | 44.3 | 19.3 RZ-135X 22 70.8 0.886 1.4310 103.4 179.49 108.69 50.8 | 86.9 | 45.3 | 20.3 RZ-130GX 20 56.8 0.967 1.4310 84.95 138.92 82.12 52.2 | 87.1 | 47.5 | 22.1 RZ-130K-21X 16 63 1.41 1.4310 105 131.9 68.9 57.9 | 83.7 | 57.5 | 32.5 RZ-134X 22 54.8 1.489 1.4310 103.4 119.4 64.6 59.7 | 85.7 | 59.2 | 34.2 RZ-137X 18.6 65 1.55 1.4310 121.3 137.79 72.79 61.8 | 90.2 | 59.7 | 35.6 RZ-147K-21X 20 75.5 1.671 1.4310 147.2 156.6 81.1 64.1 | 90.7 | 62.8 | 38.8 RZ-140X 18 64.4 1.731 1.4310 125.1 131.27 66.87 64.3 | 89.5 | 63.3 | 39.9 RZ-147K-20X 20 51.5 3.381 1.4310 147.2 91.6 40.1 82.9 | 89.7 | 80.6 | 78.4 RZ-154X 22.5 60.5 3.636 1.4310 186.1 107.84 47.34 90.1 | 94.7 | 91.6 | 83.9 RZ-156FX 20 63.5 4.323 1.4310 207.8 107.87 44.37 100.0 | 100.0 | 100.0 | 100.0 RZ-157AX 18.5 62 5.657 1.4310 223.4 98.31 36.31 86.8 | 96.7 | 87.4 | 76.1 RZ-156E-10X 20 51 6.54 1.4310 207.8 80.3 29.3 80.8 | 93.4 | 83.0 | 66.0 RZ-162MX 20 70.6 6.711 1.4310 282.9 109.49 38.89 79.3 | 93.1 | 80.6 | 64.4 RZ-157X 18.5 54.1 7.101 1.4310 223.4 83.02 28.92 77.4 | 92.6 | 79.1 | 60.6 RZ-172X 23.2 68.4 9.761 1.4310 356.7 102.5 34.1 66.0 | 85.7 | 67.6 | 44.8 RZ-162LX 20 53.8 10.841 1.4310 282.9 77.87 24.07 65.0 | 91.3 | 63.9 | 39.8 RZ-162U-38X 18 60.5 16.471 1.4310 373.9 81.08 20.58 55.4 | 89.5 | 51.0 | 25.8 RZ-175X 19.2 62 19.064 1.4310 422.9 82.28 20.28 53.5 | 90.6 | 47.4 | 22.5 RZ-177QX 18 56.9 50.481 1.4310 617.1 67.99 11.09 40.3 | 83.0 | 29.3 | 8.4 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring RZ-156FX Country of origin: DE, German; Extension Spring RZ-156FX Product image - Extension Springs RZ-156FX QR-Code: Extension Spring RZ-156FX
