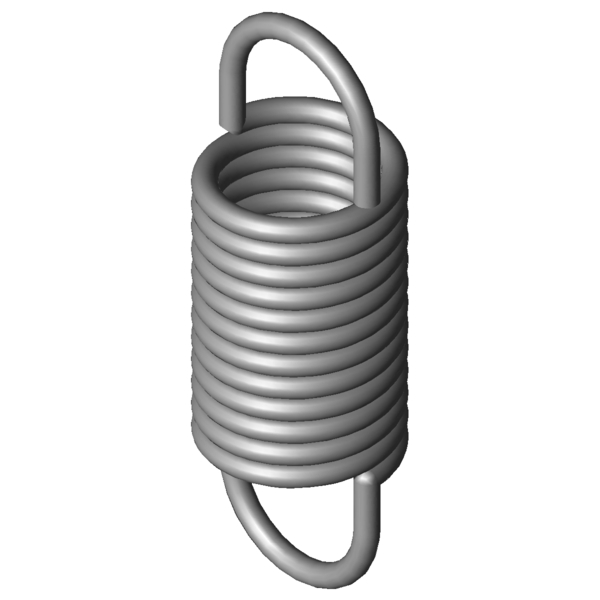

Home » Products » Extension Springs » rz-162u-28i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162U-28I Stainless steel Ø 3 x 24 x 69 mm / 180° Scaled prices - Extension Spring RZ-162U-28I Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring RZ-162U-28I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162U-28I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 24 mm outer coil diameter Dh 28.9 mm minimum bush diameter L0 69 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 40.5 mm length of unstressed spring body Ln 112.4 mm maximum spring length, inner loop to inner loop sn 43.4 mm Maximum spring deflection Fn 287.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.25 mm distance of inner edge of loop from the spring body R 6.122 N/mm Spring rate F0 22 N initial tension Fntol 20.5 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 52.5454 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162U-28I Stainless steel Ø 3 x 24 x 69 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162U-28I Stainless steel Ø 3 x 24 x 69 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162U-28I Stainless steel Ø 3 x 24 x 69 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162U-28I Stainless steel Ø 3 x 24 x 69 mm / 180° force-path-calculation Extension Spring RZ-162U-28I Inquiry formular Extension Spring RZ-162U-28I Stainless steel Ø 3 x 24 x 69 mm / 180° Inquiry formular Extension Spring RZ-162U-28I Similar extension springs to Extension Spring RZ-162U-28I Stainless steel Ø 3 x 24 x 69 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162U-28I 1.4310 3 24 69 287.9 112.4 43.4 6.122 100.0 | 100.0 | 100.0 | 100.0 Z-162U-28I EN 10270-1 3 24 69 348.5 114.03 45.03 7.13 91.7 | 100.0 | 89.5 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-135I 22 70.8 0.897 1.4310 103.4 178.11 107.31 46.0 | 85.3 | 38.2 | 14.5 RZ-147E-20I 30 67 1.004 1.4310 104.3 167.4 100.4 46.3 | 83.5 | 39.7 | 15.7 RZ-147GI 24 68.8 1.276 1.4310 123.7 159.6 90.8 52.3 | 91.0 | 45.4 | 20.5 RZ-134I 22 54.8 1.522 1.4310 103.4 118.09 63.29 52.0 | 79.3 | 52.2 | 24.6 RZ-137I 18.6 65 1.57 1.4310 121.3 136.86 71.86 52.1 | 79.5 | 51.3 | 25.4 RZ-147K-21I 20 75.5 1.69 1.4310 147.2 155.7 80.2 54.3 | 82.7 | 52.6 | 27.7 RZ-151AI 27.5 71 1.75 1.4310 153.7 152.59 81.59 57.0 | 89.3 | 53.3 | 28.4 RZ-151I 27.5 68.5 1.902 1.4310 153.7 143.56 75.06 58.8 | 90.0 | 55.6 | 30.9 RZ-147FI 24 55.6 2.083 1.4310 123.7 111.25 55.65 59.5 | 84.6 | 60.5 | 33.5 RZ-162FI 30 69.8 2.813 1.4310 193.3 133.56 63.76 68.0 | 90.7 | 67.6 | 45.7 RZ-154I 22.5 60.5 3.715 1.4310 186.1 106.83 46.33 76.0 | 88.3 | 79.2 | 60.6 RZ-156FI 20 63.5 4.398 1.4310 207.8 107.12 43.62 81.3 | 86.2 | 85.8 | 71.8 RZ-162K-20I 25 65 4.682 1.4310 229.9 110.4 45.4 86.2 | 94.5 | 87.7 | 76.3 RZ-169I 28.2 76.4 5.106 1.4310 297.5 130.99 54.59 86.7 | 89.7 | 88.1 | 82.2 RZ-162U-28I 24 69 6.122 1.4310 287.9 112.4 43.4 100.0 | 100.0 | 100.0 | 100.0 RZ-162MI 20 70.6 6.819 1.4310 282.9 108.87 38.27 91.5 | 91.5 | 93.2 | 89.7 RZ-172I 23.2 68.4 9.973 1.4310 356.7 101.73 33.33 79.1 | 96.5 | 78.8 | 62.0 RZ-177LI 25 68.1 15.785 1.4310 463.3 95.67 27.57 65.0 | 92.7 | 62.8 | 39.5 RZ-175I 19.2 62 19.478 1.4310 422.9 81.85 19.85 58.6 | 87.9 | 56.9 | 31.1 RZ-202I 24 85.6 20.741 1.4310 643.3 113.97 28.37 56.5 | 85.2 | 55.1 | 29.3 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring RZ-162U-28I Country of origin: DE, German; Extension Spring RZ-162U-28I Product image - Extension Springs RZ-162U-28I QR-Code: Extension Spring RZ-162U-28I
