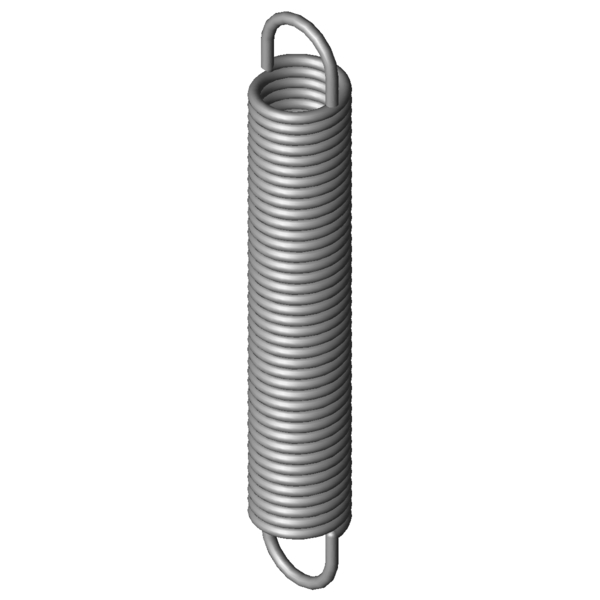

Home » Products » Extension Springs » rz-162u-32i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162U-32I Stainless steel Ø 3 x 24 x 154 mm / 180° Scaled prices - Extension Spring RZ-162U-32I Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 3.3200 EUR 37 3.3200 EUR 75 3.3200 EUR 125 3.3200 EUR 175 3.3200 EUR 250 3.3200 EUR 350 3.3200 EUR 450 3.3200 EUR Extension Spring Buy Product image Extension Spring RZ-162U-32I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162U-32I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 24 mm outer coil diameter Dh 28.9 mm minimum bush diameter L0 154 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 124.5 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 140.74 mm Maximum spring deflection Fn 287.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.75 mm distance of inner edge of loop from the spring body R 1.89 N/mm Spring rate F0 22 N initial tension Fntol 18.26 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 36 degree (+/-) tolerance of loop position Weight 155.7926 g weight of one spring Price group ###ZR - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162U-32I Stainless steel Ø 3 x 24 x 154 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162U-32I Stainless steel Ø 3 x 24 x 154 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162U-32I Stainless steel Ø 3 x 24 x 154 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162U-32I Stainless steel Ø 3 x 24 x 154 mm / 180° force-path-calculation Extension Spring RZ-162U-32I Inquiry formular Extension Spring RZ-162U-32I Stainless steel Ø 3 x 24 x 154 mm / 180° Inquiry formular Extension Spring RZ-162U-32I Customs tariff number: 73202085; Extension Spring RZ-162U-32I Country of origin: DE, German; Extension Spring RZ-162U-32I Product image - Extension Springs RZ-162U-32I QR-Code: Extension Spring RZ-162U-32I
