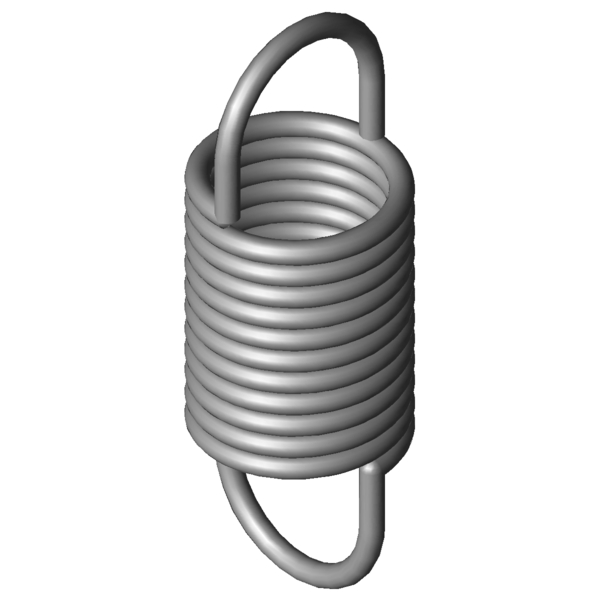

Home » Products » Extension Springs » rz-169x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-169X Stainless steel Ø 3.2 x 28.2 x 76.4 mm / 270° Scaled prices - Extension Spring RZ-169X Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 2.9500 EUR 37 2.9500 EUR 75 2.9500 EUR 125 2.9500 EUR 175 2.9500 EUR 250 2.9500 EUR 350 2.9500 EUR 450 2.9500 EUR Extension Spring Buy Product image Extension Spring RZ-169X Quantity: Add to shopping cart Technical Data - Extension Spring RZ-169X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 28.2 mm outer coil diameter Dh 33.4 mm minimum bush diameter L0 76.4 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 40.8 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 55.77 mm Maximum spring deflection Fn 297.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 17.8 mm distance of inner edge of loop from the spring body R 4.997 N/mm Spring rate F0 18.8 N initial tension Fntol 22.8 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 67.4267 g weight of one spring Price group ###ZN - price group CAD drawing Extension Spring RZ-169X Datasheet Extension Spring RZ-169X Stainless steel Ø 3.2 x 28.2 x 76.4 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-169X Stainless steel Ø 3.2 x 28.2 x 76.4 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-169X Stainless steel Ø 3.2 x 28.2 x 76.4 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-169X Stainless steel Ø 3.2 x 28.2 x 76.4 mm / 270° force-path-calculation Extension Spring RZ-169X Similar Extension Spring Z-169I Spring steel Ø 3.2 x 28.2 x 76.4 mm / 180° Similar Extension Spring Z-169I Customs tariff number: 73202085; Extension Spring RZ-169X Country of origin: DE, German; Extension Spring RZ-169X Product image - Extension Springs RZ-169X QR-Code: Extension Spring RZ-169X
