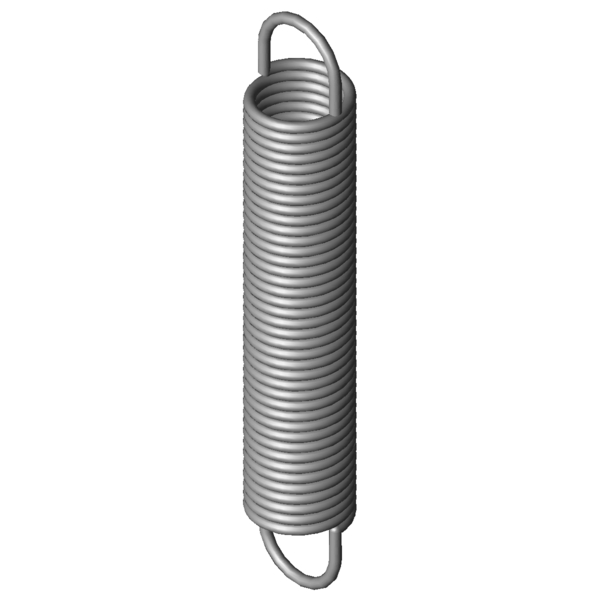

Home » Products » Extension Springs » rz-188i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-188I Stainless steel Ø 4 x 36 x 212 mm / 180° Scaled prices - Extension Spring RZ-188I Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 5.4200 EUR 37 5.4200 EUR 75 5.4200 EUR 125 5.4200 EUR 175 5.4200 EUR 250 5.4200 EUR 350 5.4200 EUR Extension Spring Buy Product image Extension Spring RZ-188I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-188I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 4 mm Wire diameter D mm mean coil diameter De 36 mm outer coil diameter Dh 42.5 mm minimum bush diameter L0 212 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 166 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 246.57 mm Maximum spring deflection Fn 443.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23 mm distance of inner edge of loop from the spring body R 1.688 N/mm Spring rate F0 27.5 N initial tension Fntol 25.03 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 422.0413 g weight of one spring Price group ###AL - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-188I Stainless steel Ø 4 x 36 x 212 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-188I Stainless steel Ø 4 x 36 x 212 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-188I Stainless steel Ø 4 x 36 x 212 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-188I Stainless steel Ø 4 x 36 x 212 mm / 180° force-path-calculation Extension Spring RZ-188I Inquiry formular Extension Spring RZ-188I Stainless steel Ø 4 x 36 x 212 mm / 180° Inquiry formular Extension Spring RZ-188I Customs tariff number: 73202085; Extension Spring RZ-188I Country of origin: DE, German; Extension Spring RZ-188I Product image - Extension Springs RZ-188I QR-Code: Extension Spring RZ-188I
