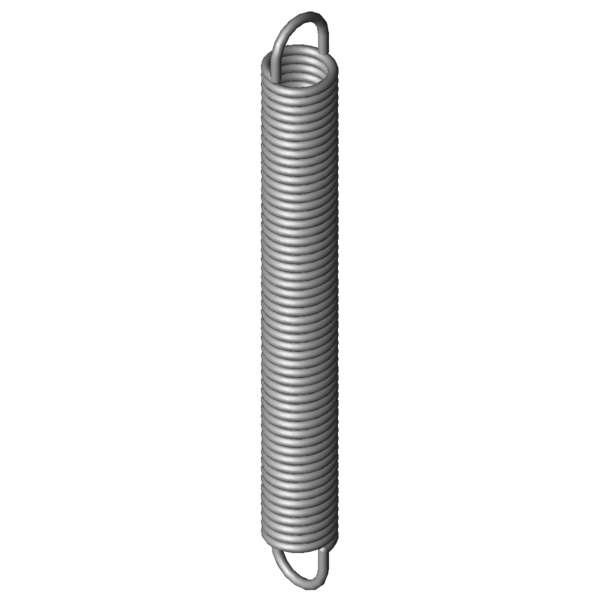

Home » Products » Extension Springs » rz-198x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-198X Stainless steel Ø 4 x 29 x 253 mm / 270° Scaled prices - Extension Spring RZ-198X Quantity Single price [EUR] 1 14.9000 EUR 2 11.8700 EUR 3 7.7300 EUR 7 5.7700 EUR 17 5.7700 EUR 37 5.7700 EUR 75 5.7700 EUR 125 5.7700 EUR 175 5.7700 EUR 250 5.7700 EUR 350 5.7700 EUR Extension Spring Buy Product image Extension Spring RZ-198X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-198X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 4 mm Wire diameter D mm mean coil diameter De 29 mm outer coil diameter Dh 35.4 mm minimum bush diameter L0 253 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 219 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 190.25 mm Maximum spring deflection Fn 542.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 17 mm distance of inner edge of loop from the spring body R 2.667 N/mm Spring rate F0 35.2 N initial tension Fntol 34.76 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 40 degree (+/-) tolerance of loop position Weight 433.123 g weight of one spring Price group ###AM - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-198X Stainless steel Ø 4 x 29 x 253 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-198X Stainless steel Ø 4 x 29 x 253 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-198X Stainless steel Ø 4 x 29 x 253 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-198X Stainless steel Ø 4 x 29 x 253 mm / 270° force-path-calculation Extension Spring RZ-198X Inquiry formular Extension Spring RZ-198X Stainless steel Ø 4 x 29 x 253 mm / 270° Inquiry formular Extension Spring RZ-198X Customs tariff number: 73202085; Extension Spring RZ-198X Country of origin: DE, German; Extension Spring RZ-198X Product image - Extension Springs RZ-198X QR-Code: Extension Spring RZ-198X
