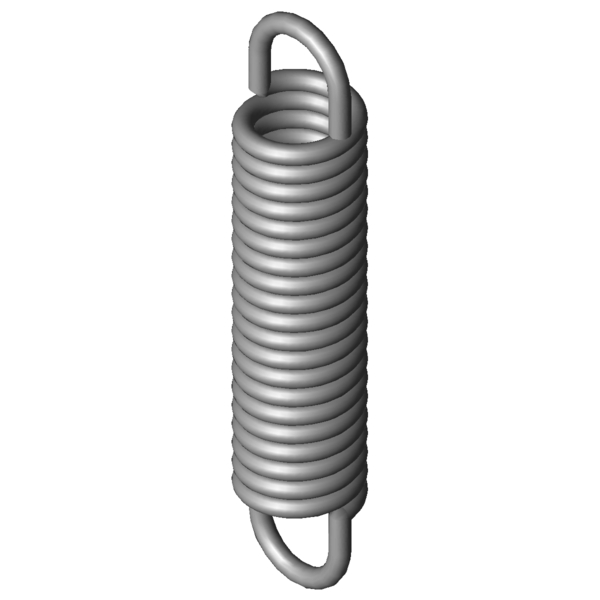

Home » Products » Extension Springs » rz-202ai Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-202AI Stainless steel Ø 4 x 24 x 113.5 mm / 180° Scaled prices - Extension Spring RZ-202AI Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 3.9100 EUR 37 3.9100 EUR 75 3.9100 EUR 125 3.9100 EUR 175 3.9100 EUR 250 3.9100 EUR 350 3.9100 EUR Extension Spring Buy Product image Extension Spring RZ-202AI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-202AI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 4 mm Wire diameter D mm mean coil diameter De 24 mm outer coil diameter Dh 30.4 mm minimum bush diameter L0 113.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 86 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 43.1 mm Maximum spring deflection Fn 643.3 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 13.75 mm distance of inner edge of loop from the spring body R 13.659 N/mm Spring rate F0 55 N initial tension Fntol 58.9 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 23 degree (+/-) tolerance of loop position Weight 138.9115 g weight of one spring Price group ###AE - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-202AI Stainless steel Ø 4 x 24 x 113.5 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-202AI Stainless steel Ø 4 x 24 x 113.5 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-202AI Stainless steel Ø 4 x 24 x 113.5 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-202AI Stainless steel Ø 4 x 24 x 113.5 mm / 180° force-path-calculation Extension Spring RZ-202AI Inquiry formular Extension Spring RZ-202AI Stainless steel Ø 4 x 24 x 113.5 mm / 180° Inquiry formular Extension Spring RZ-202AI Customs tariff number: 73202085; Extension Spring RZ-202AI Country of origin: DE, German; Extension Spring RZ-202AI Product image - Extension Springs RZ-202AI QR-Code: Extension Spring RZ-202AI
