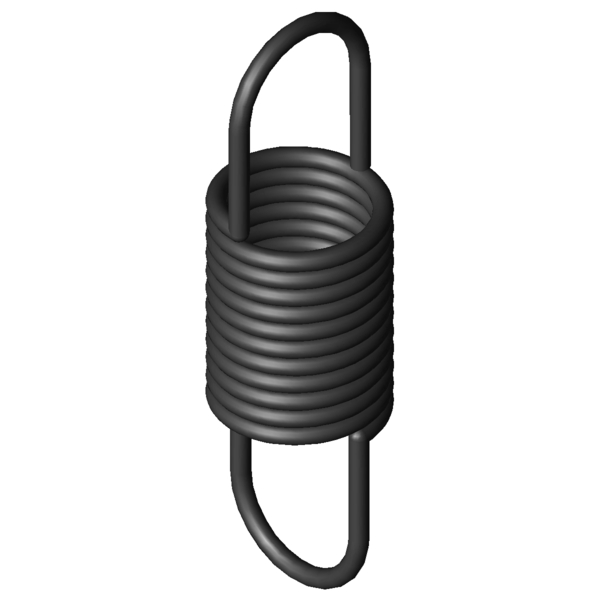

Home » Products » Extension Springs » z-058x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-058X Spring steel Ø 0.63 x 5.6 x 15.1 mm / 270° Scaled prices - Extension Spring Z-058X Quantity Single price [EUR] 1 5.9800 EUR 2 3.7700 EUR 3 2.1900 EUR 7 1.8300 EUR 17 0.8300 EUR 37 0.5500 EUR 75 0.3300 EUR 125 0.3142 EUR 175 0.3080 EUR 250 0.3019 EUR 350 0.2956 EUR 450 0.2885 EUR Extension Spring Buy Product image Extension Spring Z-058X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-058X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 0.63 mm Wire diameter D mm mean coil diameter De 5.6 mm outer coil diameter Dh 6.8 mm minimum bush diameter L0 15.1 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 8.03 mm length of unstressed spring body Ln 30.32 mm maximum spring length, inner loop to inner loop sn 15.22 mm Maximum spring deflection Fn 18.3 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 3.53 mm distance of inner edge of loop from the spring body R 1.113 N/mm Spring rate F0 1.371 N initial tension Fntol 1.42 N (+/-) tolerance of maximum spring force L0tol 0.5 mm (+/-) tolerance of unstressed length Detol 0.2 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 0.5264 g weight of one spring Price group ZD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-058X Spring steel Ø 0.63 x 5.6 x 15.1 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-058X Spring steel Ø 0.63 x 5.6 x 15.1 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-058X Spring steel Ø 0.63 x 5.6 x 15.1 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-058X Spring steel Ø 0.63 x 5.6 x 15.1 mm / 270° force-path-calculation Extension Spring Z-058X Inquiry formular Extension Spring Z-058X Spring steel Ø 0.63 x 5.6 x 15.1 mm / 270° Inquiry formular Extension Spring Z-058X Similar extension springs to Extension Spring Z-058X Spring steel Ø 0.63 x 5.6 x 15.1 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-058X EN 10270-1 0.63 5.6 15.1 18.3 30.32 15.22 1.113 100.0 | 100.0 | 100.0 | 100.0 RZ-058X 1.4310 0.63 5.6 15.1 14.87 29.5 14.4 0.956 91.3 | 100.0 | 87.9 | 85.9 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-024NX 6 12.4 0.098 EN 10270-1 3.501 46.49 34.09 39.3 | 77.5 | 31.9 | 8.5 Z-025X 5.4 12.5 0.178 EN 10270-1 5.231 40.34 27.84 46.1 | 80.9 | 41.6 | 15.6 Z-037X 6.8 15.7 0.217 EN 10270-1 7.871 50.2 34.5 49.5 | 86.0 | 43.6 | 19.0 Z-025AX 5.4 11.8 0.238 EN 10270-1 5.231 32.5 20.7 50.5 | 79.4 | 51.1 | 21.0 Z-036OX 5 14.2 0.282 EN 10270-1 7.871 40.59 26.39 53.4 | 84.9 | 50.3 | 24.8 Z-042GX 5 17.4 0.337 EN 10270-1 10.57 46.52 29.12 56.8 | 85.1 | 55.0 | 30.2 Z-051GX 6 17.2 0.366 EN 10270-1 11.66 46.68 29.48 60.0 | 89.5 | 57.7 | 32.9 Z-040AX 5.5 14.2 0.4 EN 10270-1 9.651 36.71 22.51 62.1 | 90.5 | 60.2 | 35.7 Z-040X 5.5 13.7 0.434 EN 10270-1 9.651 34.45 20.75 63.7 | 89.4 | 63.0 | 38.7 Z-051FX 6 13.9 0.591 EN 10270-1 11.66 32.15 18.25 72.5 | 90.9 | 73.6 | 53.1 Z-057EAX 6.3 15.5 0.819 EN 10270-1 16.37 34.05 18.55 84.9 | 95.4 | 85.8 | 73.4 Z-055AX 6.9 14.8 0.84 EN 10270-1 15 31.49 16.69 84.8 | 93.1 | 86.6 | 74.7 Z-051E-20X 6 12.4 0.853 EN 10270-1 11.66 25.03 12.63 79.2 | 87.6 | 73.3 | 76.8 Z-057KX 6 15.3 0.964 EN 10270-1 17.15 31.7 16.4 92.5 | 97.3 | 93.3 | 87.0 Z-058X 5.6 15.1 1.113 EN 10270-1 18.3 30.32 15.22 100.0 | 100.0 | 100.0 | 100.0 Z-060EAX 5 16.2 1.304 EN 10270-1 20.35 30.6 14.4 90.5 | 94.2 | 92.3 | 85.1 Z-066RX 5 17.7 1.953 EN 10270-1 27.3 30.26 12.56 72.8 | 88.2 | 74.8 | 55.3 Z-076X 5.8 17.9 2.618 EN 10270-1 34.46 29.83 11.93 64.6 | 86.6 | 65.7 | 41.6 Z-066QX 5 13.5 3.155 EN 10270-1 27.3 21.28 7.78 61.0 | 89.6 | 59.1 | 34.3 Z-081LX 6.3 17.1 4.354 EN 10270-1 44.12 25.27 8.17 50.7 | 82.4 | 47.6 | 22.3 Z-079X 4.8 15.5 5.549 EN 10270-1 40.84 22.2 6.7 50.5 | 87.3 | 44.4 | 19.7 Z-081QX 4.5 14.2 14.694 EN 10270-1 59.21 17.83 3.63 38.7 | 81.5 | 27.4 | 7.4 Z-100QX 5.5 17.4 17.959 EN 10270-1 85.36 21.66 4.26 37.2 | 80.8 | 24.7 | 6.0 Z-115E-01X 5.5 17.3 37.028 EN 10270-1 119.4 20.22 2.92 32.9 | 78.6 | 17.3 | 2.9 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring Z-058X Country of origin: DE, German; Extension Spring Z-058X Product image - Extension Springs Z-058X QR-Code: Extension Spring Z-058X
