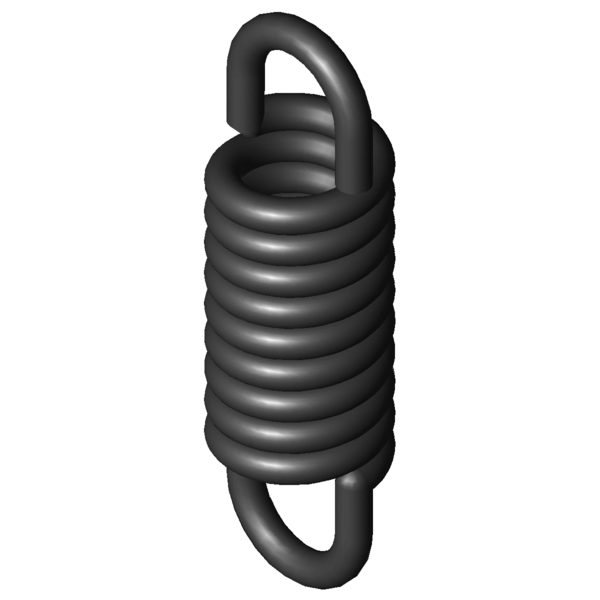

Home » Products » Extension Springs » z-100qi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-100QI Spring steel Ø 1.1 x 5.5 x 17.4 mm / 180° Scaled prices - Extension Spring Z-100QI Quantity Single price [EUR] 1 6.0900 EUR 2 3.8400 EUR 3 2.2300 EUR 7 1.8600 EUR 17 0.9400 EUR 37 0.5800 EUR 75 0.4000 EUR 125 0.3775 EUR 175 0.3713 EUR 250 0.3676 EUR 350 0.3582 EUR 450 0.3516 EUR Extension Spring Buy Product image Extension Spring Z-100QI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-100QI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 1.1 mm Wire diameter D mm mean coil diameter De 5.5 mm outer coil diameter Dh 7.5 mm minimum bush diameter L0 17.4 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 11.55 mm length of unstressed spring body Ln 21.55 mm maximum spring length, inner loop to inner loop sn 4.15 mm Maximum spring deflection Fn 85.36 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 2.92 mm distance of inner edge of loop from the spring body R 18.431 N/mm Spring rate F0 8.881 N initial tension Fntol 13.68 N (+/-) tolerance of maximum spring force L0tol 0.6 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 16 degree (+/-) tolerance of loop position Weight 1.193 g weight of one spring Price group ZE - price group Technical drawing Extension Spring Datasheet Extension Spring Z-100QI Spring steel Ø 1.1 x 5.5 x 17.4 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-100QI Spring steel Ø 1.1 x 5.5 x 17.4 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-100QI Spring steel Ø 1.1 x 5.5 x 17.4 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-100QI Spring steel Ø 1.1 x 5.5 x 17.4 mm / 180° force-path-calculation Extension Spring Z-100QI Inquiry formular Extension Spring Z-100QI Spring steel Ø 1.1 x 5.5 x 17.4 mm / 180° Inquiry formular Extension Spring Z-100QI Similar extension springs to Extension Spring Z-100QI Spring steel Ø 1.1 x 5.5 x 17.4 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-100QI EN 10270-1 1.1 5.5 17.4 85.36 21.55 4.15 18.431 100.0 | 100.0 | 100.0 | 100.0 RZ-100QI 1.4310 1.1 5.5 17.4 71.06 21.44 4.04 15.831 91.9 | 100.0 | 90.3 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-057LI 6 19.8 0.592 EN 10270-1 17.15 46.5 26.7 33.3 | 78.9 | 17.8 | 3.1 Z-057EAI 6.3 15.5 0.838 EN 10270-1 16.37 33.6 18.1 34.4 | 77.9 | 21.1 | 4.4 Z-060E-01I 5 20 0.938 EN 10270-1 20.35 40.02 20.02 32.9 | 74.0 | 20.6 | 4.1 Z-057KI 6 15.3 0.987 EN 10270-1 17.15 31.33 16.03 35.7 | 79.0 | 23.0 | 5.2 Z-058I 5.6 15.1 1.137 EN 10270-1 18.3 29.99 14.89 37.1 | 80.8 | 24.7 | 6.0 Z-060EAI 5 16.2 1.326 EN 10270-1 20.35 30.36 14.16 38.0 | 80.4 | 26.6 | 7.0 Z-075E-01I 6.4 18.7 1.901 EN 10270-1 31.46 33.73 15.03 42.1 | 83.9 | 32.2 | 10.2 Z-066RI 5 17.7 1.985 EN 10270-1 27.3 30.06 12.36 42.6 | 84.3 | 32.8 | 10.7 Z-075K-01I 6 18.8 2.198 EN 10270-1 33.4 32.58 13.78 44.0 | 85.6 | 34.6 | 11.8 Z-076I 5.8 17.9 2.671 EN 10270-1 34.46 29.6 11.7 46.8 | 88.3 | 37.9 | 14.3 Z-081LI 6.3 17.1 4.468 EN 10270-1 44.12 26.03 8.93 54.1 | 89.1 | 49.1 | 24.0 Z-079AI 4.8 17.9 4.497 EN 10270-1 40.84 26.17 8.27 52.9 | 85.7 | 49.0 | 24.0 Z-079I 4.8 15.5 5.67 EN 10270-1 40.84 22.06 6.56 56.3 | 83.0 | 55.6 | 30.3 Z-098I 6 19.4 7.087 EN 10270-1 61.21 27.29 7.89 63.5 | 90.8 | 62.2 | 37.7 Z-100QI 5.5 17.4 18.431 EN 10270-1 85.36 21.55 4.15 100.0 | 100.0 | 100.0 | 100.0 Z-115E-01I 5.5 17.3 38.117 EN 10270-1 119.4 20.14 2.84 71.6 | 95.8 | 70.0 | 48.9 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring Z-100QI Country of origin: DE, German; Extension Spring Z-100QI Product image - Extension Springs Z-100QI QR-Code: Extension Spring Z-100QI
