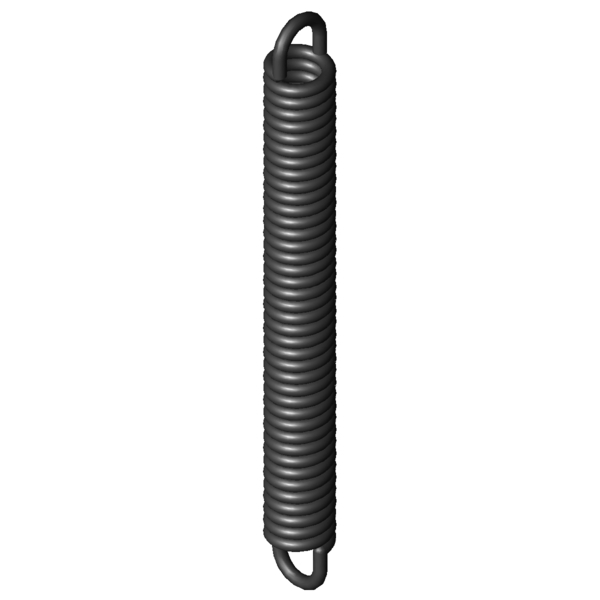

Home » Products » Extension Springs » z-100tx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-100TX Spring steel Ø 1.1 x 5.5 x 50.4 mm / 270° Scaled prices - Extension Spring Z-100TX Quantity Single price [EUR] 1 6.0900 EUR 2 3.8400 EUR 3 2.2300 EUR 7 1.8600 EUR 17 0.9400 EUR 37 0.5800 EUR 75 0.4000 EUR 125 0.3775 EUR 175 0.3713 EUR 250 0.3676 EUR 350 0.3582 EUR 450 0.3516 EUR Extension Spring Buy Product image Extension Spring Z-100TX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-100TX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 1.1 mm Wire diameter D mm mean coil diameter De 5.5 mm outer coil diameter Dh 7.5 mm minimum bush diameter L0 50.4 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 44.83 mm length of unstressed spring body Ln 67.76 mm maximum spring length, inner loop to inner loop sn 17.36 mm Maximum spring deflection Fn 85.36 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 2.78 mm distance of inner edge of loop from the spring body R 4.405 N/mm Spring rate F0 8.881 N initial tension Fntol 9.37 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 33 degree (+/-) tolerance of loop position Weight 4.337 g weight of one spring Price group ZE - price group Technical drawing Extension Spring Datasheet Extension Spring Z-100TX Spring steel Ø 1.1 x 5.5 x 50.4 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-100TX Spring steel Ø 1.1 x 5.5 x 50.4 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-100TX Spring steel Ø 1.1 x 5.5 x 50.4 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-100TX Spring steel Ø 1.1 x 5.5 x 50.4 mm / 270° force-path-calculation Extension Spring Z-100TX Inquiry formular Extension Spring Z-100TX Spring steel Ø 1.1 x 5.5 x 50.4 mm / 270° Inquiry formular Extension Spring Z-100TX Similar extension springs to Extension Spring Z-100TX Spring steel Ø 1.1 x 5.5 x 50.4 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-100TX EN 10270-1 1.1 5.5 50.4 85.36 67.76 17.36 4.405 100.0 | 100.0 | 100.0 | 100.0 RZ-100TX 1.4310 1.1 5.5 50.4 71.06 67.32 16.92 3.783 91.9 | 100.0 | 90.4 | 85.4 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-075GX 6.4 49.2 0.468 EN 10270-1 31.46 110.25 61.05 42.9 | 85.4 | 32.6 | 10.5 Z-066UX 5 48.5 0.515 EN 10270-1 27.3 96.15 47.65 43.2 | 83.6 | 34.2 | 11.7 Z-078CX 5.8 57.1 0.541 EN 10270-1 34.46 114.88 57.78 44.2 | 85.3 | 35.2 | 12.1 Z-075NX 6 50 0.563 EN 10270-1 33.4 103.84 53.84 45.4 | 87.9 | 35.7 | 12.6 Z-078BX 5.8 50.7 0.621 EN 10270-1 34.46 101 50.3 46.8 | 89.0 | 37.4 | 13.9 Z-078AX 5.8 45.1 0.714 EN 10270-1 34.46 88.85 43.75 47.2 | 85.7 | 40.0 | 16.0 Z-078X 5.8 40.3 0.819 EN 10270-1 34.46 78.43 38.13 47.9 | 82.5 | 42.9 | 18.4 Z-081O-01X 6.3 53.1 0.853 EN 10270-1 44.12 99.86 46.76 50.5 | 88.0 | 44.4 | 19.2 Z-081CX 4.8 55.5 1.056 EN 10270-1 40.84 90.73 35.23 51.9 | 83.6 | 48.6 | 23.6 Z-081BX 4.8 49.1 1.213 EN 10270-1 40.84 79.76 30.66 55.0 | 85.8 | 52.2 | 27.1 Z-081AX 4.8 43.5 1.395 EN 10270-1 40.84 70.17 26.67 56.6 | 82.1 | 56.5 | 31.1 Z-100AX 6 54.4 1.743 EN 10270-1 61.21 86.45 32.05 64.5 | 91.7 | 62.9 | 38.8 Z-100AAX 6 48.4 2 EN 10270-1 61.21 76.34 27.94 68.1 | 92.9 | 66.9 | 44.6 Z-100X 6 47.4 2.05 EN 10270-1 61.21 74.65 27.25 68.5 | 92.2 | 67.7 | 45.7 Z-100TX 5.5 50.4 4.405 EN 10270-1 85.36 67.76 17.36 100.0 | 100.0 | 100.0 | 100.0 Z-115E-04X 5.5 58.8 7.76 EN 10270-1 119.4 72.73 13.93 74.8 | 91.2 | 75.9 | 57.4 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring Z-100TX Country of origin: DE, German; Extension Spring Z-100TX Product image - Extension Springs Z-100TX QR-Code: Extension Spring Z-100TX
