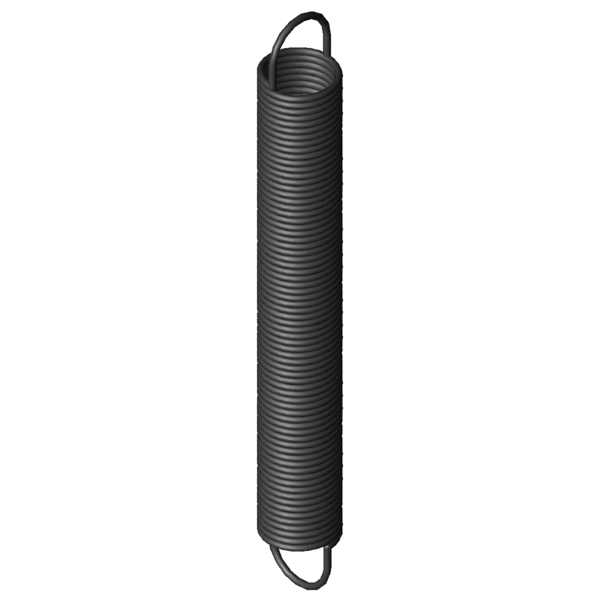

Home » Products » Extension Springs » z-106dx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-106DX Spring steel Ø 1.25 x 13.7 x 108.7 mm / 270° Scaled prices - Extension Spring Z-106DX Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6356 EUR 175 0.6220 EUR 250 0.6172 EUR 350 0.5899 EUR 450 0.5461 EUR Extension Spring Buy Product image Extension Spring Z-106DX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-106DX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 1.25 mm Wire diameter D mm mean coil diameter De 13.7 mm outer coil diameter Dh 16.9 mm minimum bush diameter L0 108.7 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 90.94 mm length of unstressed spring body Ln 380.71 mm maximum spring length, inner loop to inner loop sn 272.01 mm Maximum spring deflection Fn 52.74 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 8.88 mm distance of inner edge of loop from the spring body R 0.18 N/mm Spring rate F0 3.881 N initial tension Fntol 2.63 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 55 degree (+/-) tolerance of loop position Weight 27.82 g weight of one spring Price group ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-106DX Spring steel Ø 1.25 x 13.7 x 108.7 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-106DX Spring steel Ø 1.25 x 13.7 x 108.7 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-106DX Spring steel Ø 1.25 x 13.7 x 108.7 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-106DX Spring steel Ø 1.25 x 13.7 x 108.7 mm / 270° force-path-calculation Extension Spring Z-106DX Inquiry formular Extension Spring Z-106DX Spring steel Ø 1.25 x 13.7 x 108.7 mm / 270° Inquiry formular Extension Spring Z-106DX Similar extension springs to Extension Spring Z-106DX Spring steel Ø 1.25 x 13.7 x 108.7 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-106DX EN 10270-1 1.25 13.7 108.7 52.74 380.71 272.01 0.18 100.0 | 100.0 | 100.0 | 100.0 RZ-106DX 1.4310 1.25 13.7 108.7 44.22 375.24 266.54 0.154 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-100E-14X 14 86.4 0.116 EN 10270-1 34.48 363.81 277.41 78.1 | 88.4 | 81.7 | 64.1 Z-106EX 13.7 118.7 0.162 EN 10270-1 52.74 421.04 302.34 94.0 | 97.2 | 95.0 | 90.0 Z-106DX 13.7 108.7 0.18 EN 10270-1 52.74 380.71 272.01 100.0 | 100.0 | 100.0 | 100.0 Z-106HX 12.7 121 0.2 EN 10270-1 56.71 380.93 259.93 92.4 | 94.2 | 94.3 | 88.9 Z-106CX 13.7 98.7 0.202 EN 10270-1 52.74 340.39 241.69 93.4 | 96.9 | 94.4 | 88.9 Z-106BX 13.7 88.7 0.231 EN 10270-1 52.74 300.06 211.36 86.8 | 93.9 | 88.9 | 77.7 Z-115LX 15 105 0.26 EN 10270-1 66.08 337.89 232.89 81.2 | 92.4 | 82.7 | 68.3 Z-106GX 12.7 96.3 0.264 EN 10270-1 56.71 293.41 197.11 81.3 | 93.8 | 82.7 | 67.4 Z-109EX 11.2 112 0.329 EN 10270-1 63.88 291.02 179.02 73.8 | 92.9 | 74.2 | 54.3 Z-115V-26X 15 113.5 0.339 EN 10270-1 79.83 329.7 216.2 71.8 | 90.1 | 72.8 | 52.5 Z-115V-25X 15 101.5 0.39 EN 10270-1 79.83 289.69 188.19 67.6 | 89.3 | 67.6 | 45.7 Z-121LX 15.5 107.5 0.463 EN 10270-1 92.71 291.9 184.4 63.1 | 88.5 | 62.3 | 38.6 Z-124CX 14.1 118 0.554 EN 10270-1 101.3 286.62 168.62 59.5 | 89.1 | 57.0 | 32.3 Z-124BX 14.1 105 0.636 EN 10270-1 101.3 251.88 146.88 57.3 | 90.6 | 53.0 | 28.1 Z-115V-37X 12 120.5 0.639 EN 10270-1 98.5 263.34 142.84 56.1 | 87.0 | 53.0 | 28.1 Z-115V-36X 12 108.5 0.721 EN 10270-1 98.5 235.1 126.6 55.1 | 90.2 | 50.0 | 24.9 Z-124AX 14.1 94.2 0.731 EN 10270-1 101.3 221.99 127.79 53.8 | 87.3 | 49.5 | 24.5 Z-130K-04X 16 109 0.766 EN 10270-1 124.8 259.02 150.02 50.5 | 87.8 | 44.4 | 19.5 Number of similar metal springs: 17 Customs tariff number: 73202085; Extension Spring Z-106DX Country of origin: DE, German; Extension Spring Z-106DX Product image - Extension Springs Z-106DX QR-Code: Extension Spring Z-106DX
