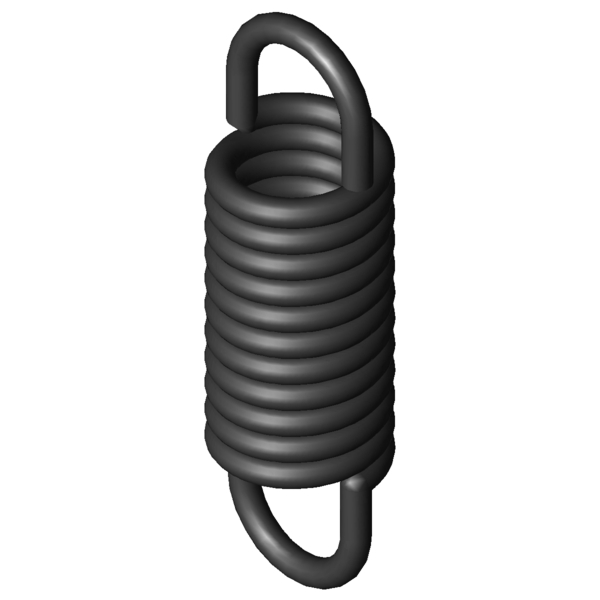

Home » Products » Extension Springs » z-113i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-113I Spring steel Ø 1.25 x 7.5 x 24.3 mm / 180° Scaled prices - Extension Spring Z-113I Quantity Single price [EUR] 1 5.9800 EUR 2 3.7700 EUR 3 2.1900 EUR 7 1.8300 EUR 17 0.8300 EUR 37 0.5500 EUR 75 0.3300 EUR 125 0.3142 EUR 175 0.3080 EUR 250 0.3019 EUR 350 0.2956 EUR 450 0.2885 EUR Extension Spring Buy Product image Extension Spring Z-113I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-113I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 1.25 mm Wire diameter D mm mean coil diameter De 7.5 mm outer coil diameter Dh 9.6 mm minimum bush diameter L0 24.3 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 15.63 mm length of unstressed spring body Ln 33.77 mm maximum spring length, inner loop to inner loop sn 9.47 mm Maximum spring deflection Fn 92.22 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 4.33 mm distance of inner edge of loop from the spring body R 8.859 N/mm Spring rate F0 8.331 N initial tension Fntol 10.14 N (+/-) tolerance of maximum spring force L0tol 0.6 mm (+/-) tolerance of unstressed length Detol 0.2 mm (+/-) tolerance of outer coil diameter Oesttol 18 degree (+/-) tolerance of loop position Weight 2.564 g weight of one spring Price group ZD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-113I Spring steel Ø 1.25 x 7.5 x 24.3 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-113I Spring steel Ø 1.25 x 7.5 x 24.3 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-113I Spring steel Ø 1.25 x 7.5 x 24.3 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-113I Spring steel Ø 1.25 x 7.5 x 24.3 mm / 180° force-path-calculation Extension Spring Z-113I Inquiry formular Extension Spring Z-113I Spring steel Ø 1.25 x 7.5 x 24.3 mm / 180° Inquiry formular Extension Spring Z-113I Similar extension springs to Extension Spring Z-113I Spring steel Ø 1.25 x 7.5 x 24.3 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-113I EN 10270-1 1.25 7.5 24.3 92.22 33.77 9.47 8.859 100.0 | 100.0 | 100.0 | 100.0 RZ-113I 1.4310 1.25 7.5 24.3 77.33 33.59 9.29 7.606 92.2 | 100.0 | 91.0 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-066MI 7.5 21.7 0.502 EN 10270-1 18.66 56.01 34.31 37.1 | 81.8 | 23.9 | 5.6 Z-072FI 8 26.5 0.604 EN 10270-1 25.5 65.76 39.26 38.6 | 83.1 | 25.9 | 6.7 Z-074I 7.1 29.6 0.681 EN 10270-1 28.55 68.09 38.49 38.6 | 80.3 | 27.8 | 7.6 Z-072GI 7.8 22.5 0.839 EN 10270-1 26.12 51.39 28.89 41.4 | 84.2 | 30.6 | 9.3 Z-072EAI 8 20 1.065 EN 10270-1 25.5 42.29 22.29 42.3 | 80.0 | 35.1 | 11.7 Z-081KAI 8.5 23.5 1.218 EN 10270-1 33.39 48.64 25.14 45.4 | 85.6 | 36.9 | 13.6 Z-075KI 6 25 1.38 EN 10270-1 33.4 46.94 21.94 45.2 | 80.4 | 39.7 | 15.6 Z-073I 7.1 19.2 1.451 EN 10270-1 28.55 37.27 18.07 45.7 | 79.2 | 41.7 | 16.2 Z-091I 9 24 1.73 EN 10270-1 42.22 46.16 22.16 50.4 | 87.4 | 44.3 | 19.6 Z-081MI 6.3 22.5 2.739 EN 10270-1 44.12 37.07 14.57 56.8 | 82.9 | 56.4 | 31.1 Z-093GI 8 21 3.126 EN 10270-1 47.15 34.73 13.73 60.7 | 86.7 | 60.1 | 35.3 Z-095I 7.3 21.4 3.543 EN 10270-1 51.3 34.57 13.17 64.1 | 88.5 | 63.8 | 40.0 Z-100MI 7.5 27.2 3.671 EN 10270-1 65.14 43.44 16.24 66.0 | 92.4 | 64.5 | 41.2 Z-100LI 7.5 20.6 5.989 EN 10270-1 65.14 30.55 9.95 80.4 | 90.9 | 82.9 | 67.2 Z-113I 7.5 24.3 8.859 EN 10270-1 92.22 33.77 9.47 100.0 | 100.0 | 100.0 | 100.0 Z-115W-19I 8 23 22.094 EN 10270-1 141.7 28.75 5.75 64.3 | 90.6 | 62.9 | 39.5 Z-115RI 7 22.1 23.458 EN 10270-1 132.1 26.98 4.88 62.6 | 91.2 | 60.7 | 36.0 Z-130E-01I 8 23.6 29.963 EN 10270-1 168.4 28.63 5.03 57.6 | 89.7 | 53.9 | 29.1 Number of similar metal springs: 17 Customs tariff number: 73202085; Extension Spring Z-113I Country of origin: DE, German; Extension Spring Z-113I Product image - Extension Springs Z-113I QR-Code: Extension Spring Z-113I
