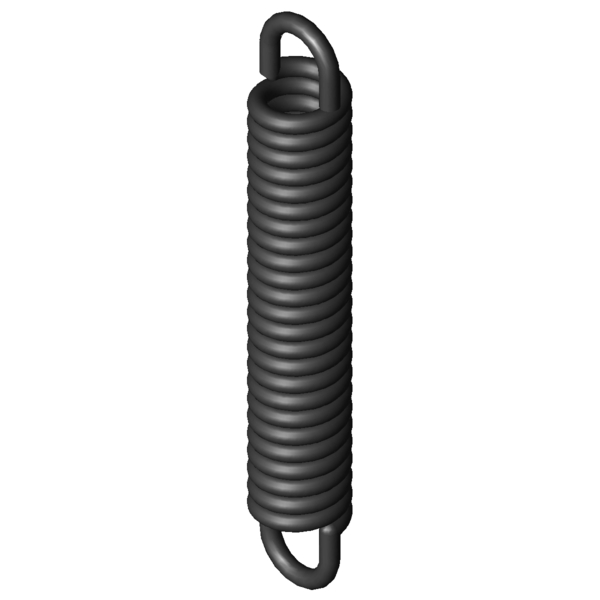

Home » Products » Extension Springs » z-115ti Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-115TI Spring steel Ø 1.4 x 7 x 43.1 mm / 180° Scaled prices - Extension Spring Z-115TI Quantity Single price [EUR] 1 6.1600 EUR 2 3.8800 EUR 3 2.3500 EUR 7 1.9600 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4700 EUR 125 0.4277 EUR 175 0.4107 EUR 250 0.4020 EUR 350 0.3892 EUR 450 0.3771 EUR Extension Spring Buy Product image Extension Spring Z-115TI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-115TI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 1.4 mm Wire diameter D mm mean coil diameter De 7 mm outer coil diameter Dh 9.4 mm minimum bush diameter L0 43.1 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 35.7 mm length of unstressed spring body Ln 55.66 mm maximum spring length, inner loop to inner loop sn 12.56 mm Maximum spring deflection Fn 132.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 3.7 mm distance of inner edge of loop from the spring body R 9.096 N/mm Spring rate F0 17.77 N initial tension Fntol 15.6 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 26 degree (+/-) tolerance of loop position Weight 5.674 g weight of one spring Price group ZF - price group Technical drawing Extension Spring Datasheet Extension Spring Z-115TI Spring steel Ø 1.4 x 7 x 43.1 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-115TI Spring steel Ø 1.4 x 7 x 43.1 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-115TI Spring steel Ø 1.4 x 7 x 43.1 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-115TI Spring steel Ø 1.4 x 7 x 43.1 mm / 180° force-path-calculation Extension Spring Z-115TI Inquiry formular Extension Spring Z-115TI Spring steel Ø 1.4 x 7 x 43.1 mm / 180° Inquiry formular Extension Spring Z-115TI Similar extension springs to Extension Spring Z-115TI Spring steel Ø 1.4 x 7 x 43.1 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-115TI EN 10270-1 1.4 7 43.1 132.1 55.66 12.56 9.096 100.0 | 100.0 | 100.0 | 100.0 RZ-115TI 1.4310 1.4 7 43.1 111.3 55.55 12.45 7.813 92.2 | 100.0 | 91.7 | 85.0 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-075BI 7.1 52.8 0.312 EN 10270-1 28.55 136.85 84.05 33.5 | 79.1 | 18.3 | 3.2 Z-072F-01I 8 40 0.315 EN 10270-1 25.5 115.34 75.34 33.5 | 79.2 | 18.0 | 3.2 Z-075AI 7.1 47.2 0.359 EN 10270-1 28.55 120.26 73.06 35.2 | 82.3 | 19.4 | 3.7 Z-075I 7.1 41.6 0.422 EN 10270-1 28.55 103.66 62.06 36.5 | 84.1 | 20.9 | 4.4 Z-075GI 6.4 49.2 0.471 EN 10270-1 31.46 109.95 60.75 35.3 | 78.7 | 22.2 | 4.9 Z-075FI 6.4 36.4 0.689 EN 10270-1 31.46 77.9 41.5 37.3 | 77.7 | 27.0 | 7.2 Z-078AI 5.8 45.1 0.718 EN 10270-1 34.46 88.61 43.51 37.8 | 78.5 | 27.5 | 7.5 Z-075MI 6 40 0.751 EN 10270-1 33.4 80.32 40.32 38.2 | 78.6 | 28.2 | 7.9 Z-078I 5.8 40.3 0.824 EN 10270-1 34.46 78.2 37.9 38.7 | 77.8 | 29.6 | 8.6 Z-094I 8 42 0.974 EN 10270-1 47.15 86 44 42.6 | 85.5 | 32.1 | 10.2 Z-097I 7.3 49.4 1.031 EN 10270-1 51.3 94.63 45.23 43.0 | 84.9 | 33.3 | 10.8 Z-081OI 6.3 44.1 1.075 EN 10270-1 44.12 81.24 37.14 43.0 | 84.0 | 33.6 | 11.3 Z-100NI 7.5 37.1 2.322 EN 10270-1 65.14 62.77 25.67 53.1 | 86.0 | 49.1 | 24.1 Z-114I 7.5 40.5 4.158 EN 10270-1 92.22 60.68 20.18 67.2 | 92.2 | 66.0 | 43.5 Z-115TI 7 43.1 9.096 EN 10270-1 132.1 55.66 12.56 100.0 | 100.0 | 100.0 | 100.0 Z-130E-03I 8 46 11.319 EN 10270-1 168.4 59.31 13.31 86.4 | 89.6 | 86.4 | 83.1 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring Z-115TI Country of origin: DE, German; Extension Spring Z-115TI Product image - Extension Springs Z-115TI QR-Code: Extension Spring Z-115TI
