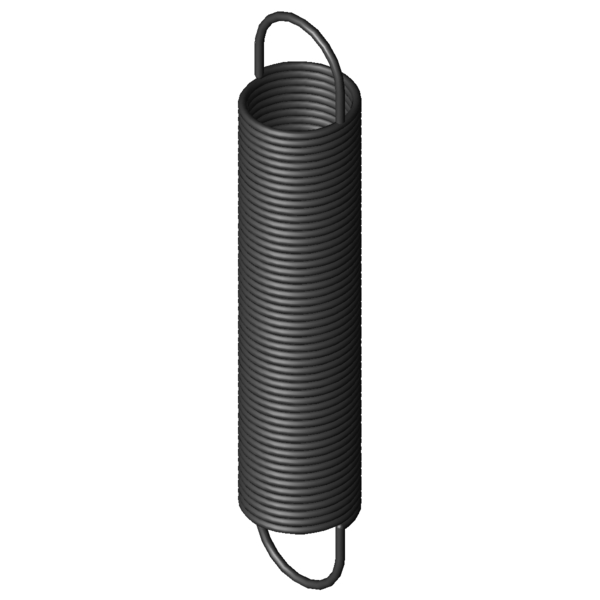

Home » Products » Extension Springs » z-115v-15i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-115V-15I Spring steel Ø 1.5 x 20 x 109 mm / 180° Scaled prices - Extension Spring Z-115V-15I Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6356 EUR 175 0.6220 EUR 250 0.6172 EUR 350 0.5899 EUR 450 0.5461 EUR Extension Spring Buy Product image Extension Spring Z-115V-15I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-115V-15I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 1.5 mm Wire diameter D mm mean coil diameter De 20 mm outer coil diameter Dh 22.7 mm minimum bush diameter L0 109 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.75 mm length of unstressed spring body Ln 480.42 mm maximum spring length, inner loop to inner loop sn 371.42 mm Maximum spring deflection Fn 60.54 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 13.62 mm distance of inner edge of loop from the spring body R 0.152 N/mm Spring rate F0 3.991 N initial tension Fntol 3.21 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 54 degree (+/-) tolerance of loop position Weight 44.78 g weight of one spring Price group ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-115V-15I Spring steel Ø 1.5 x 20 x 109 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-115V-15I Spring steel Ø 1.5 x 20 x 109 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-115V-15I Spring steel Ø 1.5 x 20 x 109 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-115V-15I Spring steel Ø 1.5 x 20 x 109 mm / 180° force-path-calculation Extension Spring Z-115V-15I Inquiry formular Extension Spring Z-115V-15I Spring steel Ø 1.5 x 20 x 109 mm / 180° Inquiry formular Extension Spring Z-115V-15I Similar extension springs to Extension Spring Z-115V-15I Spring steel Ø 1.5 x 20 x 109 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-115V-15I EN 10270-1 1.5 20 109 60.54 480.42 371.42 0.152 100.0 | 100.0 | 100.0 | 100.0 RZ-115V-15I 1.4310 1.5 20 109 51.22 476.18 367.18 0.131 92.4 | 100.0 | 91.7 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-115F-14I 20 114.5 0.102 EN 10270-1 49.5 576.26 461.76 81.0 | 96.2 | 81.1 | 65.8 Z-115V-17I 20 133 0.117 EN 10270-1 60.54 615.49 482.49 86.5 | 94.0 | 88.5 | 77.0 Z-115V-16I 20 121 0.132 EN 10270-1 60.54 547.95 426.95 92.4 | 96.7 | 93.5 | 87.0 Z-115V-15I 20 109 0.152 EN 10270-1 60.54 480.42 371.42 100.0 | 100.0 | 100.0 | 100.0 Z-115F-13I 20 86.3 0.154 EN 10270-1 49.5 392.85 306.55 90.7 | 90.8 | 82.1 | 99.1 Z-118AI 21.6 117 0.156 EN 10270-1 67.4 523.5 406.5 94.0 | 93.2 | 90.6 | 98.3 Z-115V-14I 20 99 0.175 EN 10270-1 60.54 421.82 322.82 92.4 | 96.9 | 93.5 | 86.9 Z-115V-13I 20 90 0.201 EN 10270-1 60.54 371.17 281.17 85.9 | 94.2 | 87.9 | 75.7 Z-118I 21.6 95 0.211 EN 10270-1 67.4 395.13 300.13 83.0 | 91.2 | 85.3 | 72.6 Z-130E-13I 24 107.5 0.247 EN 10270-1 84.2 432 324.5 77.0 | 88.4 | 79.6 | 62.8 Z-121BI 17.6 111 0.305 EN 10270-1 82.12 359.8 248.8 71.0 | 93.3 | 70.4 | 49.4 Z-121AI 17.6 99.8 0.351 EN 10270-1 82.12 316.3 216.5 66.7 | 91.1 | 66.0 | 43.0 Z-130JI 20 100 0.449 EN 10270-1 100.9 309.45 209.45 61.2 | 91.7 | 58.2 | 33.8 Z-136I 22 110 0.516 EN 10270-1 123.3 331.89 221.89 57.4 | 88.3 | 54.4 | 29.3 Z-130K-04I 16 109 0.77 EN 10270-1 124.8 258.25 149.25 50.5 | 87.8 | 44.3 | 19.5 Z-141AI 18 118 0.856 EN 10270-1 149.2 278.64 160.64 48.4 | 85.8 | 41.9 | 17.5 Z-147K-03I 20 134 0.872 EN 10270-1 176.1 319 185 47.5 | 83.2 | 42.1 | 17.1 Z-141I 18 104 1.007 EN 10270-1 149.2 240.46 136.46 46.8 | 86.8 | 38.7 | 14.9 Z-137AI 18.6 95 1.033 EN 10270-1 144.7 224.6 129.6 46.0 | 85.1 | 38.4 | 14.6 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring Z-115V-15I Country of origin: DE, German; Extension Spring Z-115V-15I Product image - Extension Springs Z-115V-15I QR-Code: Extension Spring Z-115V-15I
