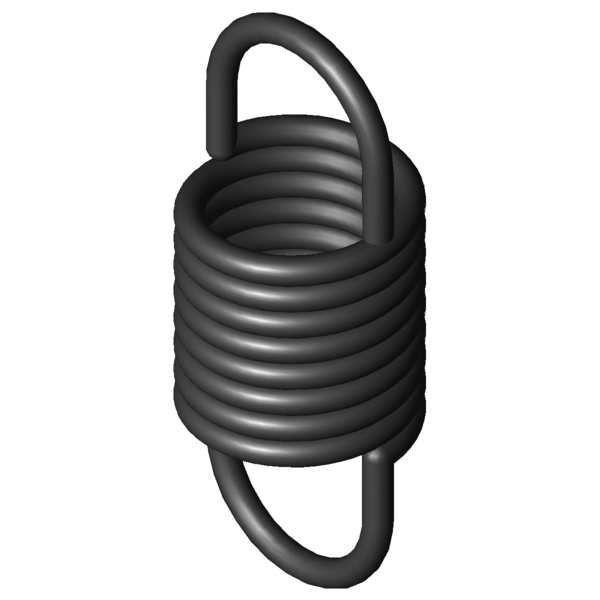

Home » Products » Extension Springs » z-115v-29i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-115V-29I Spring steel Ø 1.5 x 12 x 29 mm / 180° Scaled prices - Extension Spring Z-115V-29I Quantity Single price [EUR] 1 6.0900 EUR 2 3.8400 EUR 3 2.2300 EUR 7 1.8600 EUR 17 0.9400 EUR 37 0.5800 EUR 75 0.4000 EUR 125 0.3775 EUR 175 0.3713 EUR 250 0.3676 EUR 350 0.3582 EUR 450 0.3516 EUR Extension Spring Buy Product image Extension Spring Z-115V-29I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-115V-29I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 1.5 mm Wire diameter D mm mean coil diameter De 12 mm outer coil diameter Dh 14.6 mm minimum bush diameter L0 29 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 14.25 mm length of unstressed spring body Ln 46.42 mm maximum spring length, inner loop to inner loop sn 17.42 mm Maximum spring deflection Fn 98.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 7.38 mm distance of inner edge of loop from the spring body R 5.241 N/mm Spring rate F0 7.221 N initial tension Fntol 6.47 N (+/-) tolerance of maximum spring force L0tol 0.8 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 17 degree (+/-) tolerance of loop position Weight 4.724 g weight of one spring Price group ZE - price group Technical drawing Extension Spring Datasheet Extension Spring Z-115V-29I Spring steel Ø 1.5 x 12 x 29 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-115V-29I Spring steel Ø 1.5 x 12 x 29 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-115V-29I Spring steel Ø 1.5 x 12 x 29 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-115V-29I Spring steel Ø 1.5 x 12 x 29 mm / 180° force-path-calculation Extension Spring Z-115V-29I Inquiry formular Extension Spring Z-115V-29I Spring steel Ø 1.5 x 12 x 29 mm / 180° Inquiry formular Extension Spring Z-115V-29I Similar extension springs to Extension Spring Z-115V-29I Spring steel Ø 1.5 x 12 x 29 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-115V-29I EN 10270-1 1.5 12 29 98.5 46.42 17.42 5.241 100.0 | 100.0 | 100.0 | 100.0 RZ-115V-29I 1.4310 1.5 12 29 83.35 46.23 17.23 4.502 92.4 | 100.0 | 91.8 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-082I 13.5 31.4 0.454 EN 10270-1 28.63 90.62 59.22 40.1 | 82.6 | 29.2 | 8.5 Z-081GI 10 28.4 0.572 EN 10270-1 28.59 74.89 46.49 41.5 | 80.4 | 33.2 | 10.9 Z-100E-10I 14 31.2 0.731 EN 10270-1 34.48 75.2 44 45.1 | 84.0 | 37.3 | 13.9 Z-100GI 12 34.4 0.743 EN 10270-1 41.95 86.84 52.44 46.0 | 85.9 | 37.9 | 14.1 Z-085I 11 27.4 0.886 EN 10270-1 34.88 63.4 36 47.8 | 84.3 | 41.9 | 17.1 Z-104I 13.7 34.2 1.121 EN 10270-1 52.74 77.8 43.6 51.1 | 85.2 | 46.7 | 21.4 Z-100FI 12 27.8 1.212 EN 10270-1 41.95 59.94 32.14 53.7 | 89.7 | 48.4 | 23.1 Z-087KI 9.4 26 1.375 EN 10270-1 40.52 52.97 26.97 52.6 | 78.2 | 52.9 | 26.6 Z-106E-10I 12.7 32.7 1.441 EN 10270-1 56.71 68.83 36.13 56.5 | 88.8 | 52.9 | 27.8 Z-107I 11.2 30.2 2.196 EN 10270-1 63.88 57.02 26.82 66.0 | 90.9 | 64.9 | 42.1 Z-109E-10I 10 32 2.56 EN 10270-1 71.04 57.53 25.53 68.4 | 85.8 | 70.2 | 49.2 Z-115V-30I 12 36.5 3.3 EN 10270-1 98.5 64.16 27.66 79.2 | 93.2 | 81.5 | 63.0 Z-124F-01I 12.7 36 4.245 EN 10270-1 111.8 60.37 24.37 83.5 | 89.6 | 79.8 | 81.1 Z-110I 9.2 27 4.304 EN 10270-1 76.72 43.25 16.25 84.5 | 84.4 | 85.6 | 83.5 Z-115V-29I 12 29 5.241 EN 10270-1 98.5 46.42 17.42 100.0 | 100.0 | 100.0 | 100.0 Z-125I 11.6 34.2 5.806 EN 10270-1 121.5 53.44 19.24 89.0 | 91.7 | 85.8 | 89.5 Z-115MI 10 26.9 6.477 EN 10270-1 96.67 40.3 13.4 85.2 | 89.8 | 87.5 | 78.4 Z-130LI 12 33.2 10.608 EN 10270-1 162.8 47.25 14.05 69.9 | 90.2 | 70.6 | 48.8 Z-128I 9.6 31 11.339 EN 10270-1 144.1 42.66 11.66 67.5 | 89.1 | 67.6 | 45.8 Z-145I 12 38.3 14.174 EN 10270-1 216.4 52.18 13.88 60.8 | 83.6 | 62.6 | 36.3 Z-130QI 9 28.4 30.16 EN 10270-1 209 34.39 5.99 47.5 | 85.4 | 40.8 | 16.2 Z-147QI 11 34.8 36.863 EN 10270-1 301.2 42.12 7.32 44.1 | 81.1 | 37.4 | 13.7 Z-147E-01I 10 29.6 37.454 EN 10270-1 252.9 35.57 5.97 45.1 | 85.4 | 36.6 | 13.3 Number of similar metal springs: 22 Customs tariff number: 73202085; Extension Spring Z-115V-29I Country of origin: DE, German; Extension Spring Z-115V-29I Product image - Extension Springs Z-115V-29I QR-Code: Extension Spring Z-115V-29I
