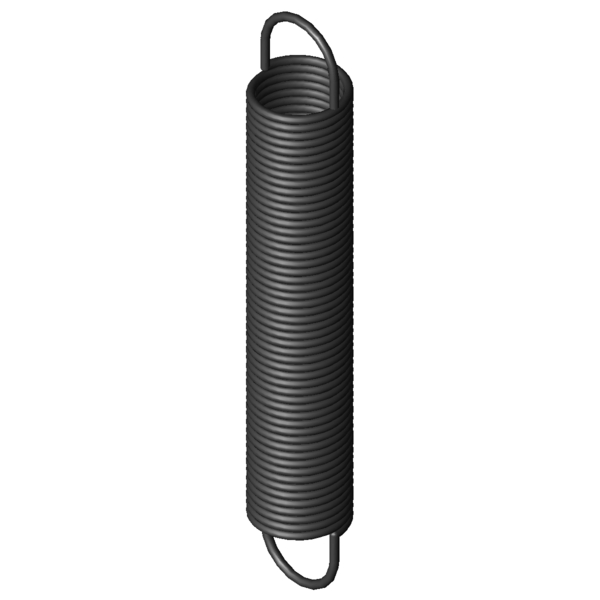

Home » Products » Extension Springs » z-136bi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-136BI Spring steel Ø 2 x 22 x 138 mm / 180° Scaled prices - Extension Spring Z-136BI Quantity Single price [EUR] 1 6.7100 EUR 2 4.2300 EUR 3 3.0800 EUR 7 2.6300 EUR 17 1.3800 EUR 37 1.0500 EUR 75 0.8600 EUR 125 0.7979 EUR 175 0.7848 EUR 250 0.7607 EUR 350 0.7408 EUR 450 0.6532 EUR Extension Spring Buy Product image Extension Spring Z-136BI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-136BI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 22 mm outer coil diameter Dh 25.5 mm minimum bush diameter L0 138 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 109 mm length of unstressed spring body Ln 438.54 mm maximum spring length, inner loop to inner loop sn 300.54 mm Maximum spring deflection Fn 123.3 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.5 mm distance of inner edge of loop from the spring body R 0.381 N/mm Spring rate F0 8.881 N initial tension Fntol 6.05 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 47 degree (+/-) tolerance of loop position Weight 86.1 g weight of one spring Price group ZL - price group Technical drawing Extension Spring Datasheet Extension Spring Z-136BI Spring steel Ø 2 x 22 x 138 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-136BI Spring steel Ø 2 x 22 x 138 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-136BI Spring steel Ø 2 x 22 x 138 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-136BI Spring steel Ø 2 x 22 x 138 mm / 180° force-path-calculation Extension Spring Z-136BI Inquiry formular Extension Spring Z-136BI Spring steel Ø 2 x 22 x 138 mm / 180° Inquiry formular Extension Spring Z-136BI Similar extension springs to Extension Spring Z-136BI Spring steel Ø 2 x 22 x 138 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-136BI EN 10270-1 2 22 138 123.3 438.54 300.54 0.381 100.0 | 100.0 | 100.0 | 100.0 RZ-136BI 1.4310 2 22 138 103.4 432.41 294.41 0.327 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-115V-17I 20 133 0.117 EN 10270-1 60.54 615.49 482.49 57.9 | 87.4 | 55.7 | 30.6 Z-115V-16I 20 121 0.132 EN 10270-1 60.54 547.95 426.95 59.6 | 84.5 | 59.7 | 34.6 Z-118AI 21.6 117 0.156 EN 10270-1 67.4 523.5 406.5 64.1 | 87.7 | 64.3 | 40.4 Z-130E-14I 24 143.5 0.164 EN 10270-1 84.2 632.3 488.8 66.5 | 92.6 | 64.9 | 42.0 Z-121DI 17.6 136 0.235 EN 10270-1 82.12 459.6 323.6 75.9 | 86.2 | 79.7 | 61.9 Z-130K-01I 20 145 0.275 EN 10270-1 100.9 487.01 342.01 82.9 | 92.0 | 84.9 | 71.9 Z-136DI 22 170 0.293 EN 10270-1 123.3 560.42 390.42 86.4 | 93.7 | 88.5 | 77.0 Z-130KI 20 136 0.298 EN 10270-1 100.9 451.2 315.2 86.6 | 93.2 | 88.6 | 78.0 Z-136CI 22 154 0.331 EN 10270-1 123.3 499.48 345.48 92.3 | 96.5 | 93.5 | 87.0 Z-136BI 22 138 0.381 EN 10270-1 123.3 438.54 300.54 100.0 | 100.0 | 100.0 | 100.0 Z-136AI 22 124 0.438 EN 10270-1 123.3 385.22 261.22 92.3 | 96.6 | 93.5 | 86.9 Z-136I 22 110 0.516 EN 10270-1 123.3 331.89 221.89 84.7 | 93.2 | 86.9 | 73.8 Z-147JI 24 122 0.583 EN 10270-1 148 359.08 237.08 79.0 | 90.3 | 81.1 | 65.7 Z-138I 18.6 147 0.589 EN 10270-1 144.7 374.38 227.38 79.2 | 92.8 | 80.4 | 64.5 Z-147K-04I 20 156 0.723 EN 10270-1 176.1 379.15 223.15 71.4 | 90.1 | 72.1 | 52.0 Z-141BI 18 132 0.744 EN 10270-1 149.2 316.83 184.83 71.8 | 92.5 | 72.1 | 50.8 Z-147K-03I 20 134 0.872 EN 10270-1 176.1 319 185 67.3 | 93.0 | 65.8 | 43.1 Z-156BI 22.5 165 0.93 EN 10270-1 223.8 386.69 221.69 64.1 | 87.1 | 64.4 | 40.6 Z-156AI 22.5 148 1.07 EN 10270-1 223.8 340.69 192.69 61.8 | 90.3 | 59.6 | 35.3 Z-156I 22.5 130 1.259 EN 10270-1 223.8 293.68 163.68 58.5 | 90.7 | 54.8 | 30.0 Z-162K-01I 25 143 1.487 EN 10270-1 277.6 315.17 172.17 53.9 | 85.3 | 50.9 | 25.4 Z-156JI 20 123.5 1.929 EN 10270-1 249.9 242.57 119.07 50.3 | 86.8 | 44.5 | 19.5 Z-159AI 18.5 141 2.089 EN 10270-1 268.6 258.76 117.76 49.3 | 87.3 | 42.5 | 18.0 Z-162U-32I 24 154 2.2 EN 10270-1 348.5 299.94 145.94 47.3 | 82.6 | 42.0 | 17.2 Z-162U-31I 24 133 2.66 EN 10270-1 348.5 253.71 120.71 45.6 | 84.9 | 37.8 | 14.2 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-136BI Country of origin: DE, German; Extension Spring Z-136BI Product image - Extension Springs Z-136BI QR-Code: Extension Spring Z-136BI
