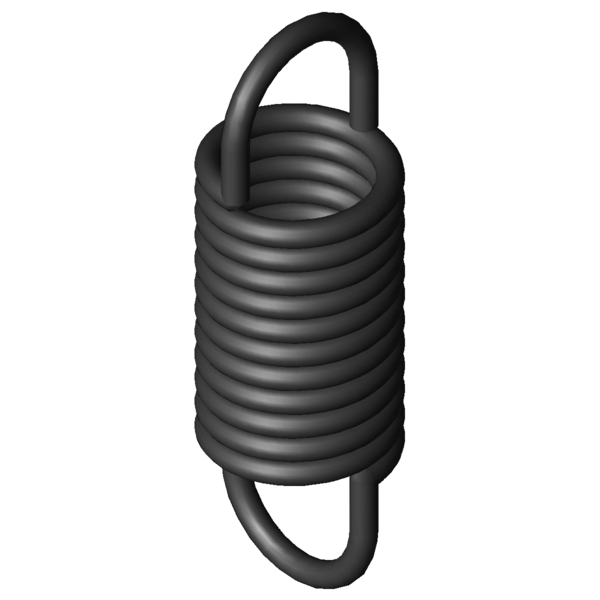

Home » Products » Extension Springs » z-142x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-142X Spring steel Ø 2 x 14.5 x 42.8 mm / 270° Scaled prices - Extension Spring Z-142X Quantity Single price [EUR] 1 6.0900 EUR 2 3.8400 EUR 3 2.2300 EUR 7 1.8600 EUR 17 0.9400 EUR 37 0.5800 EUR 75 0.4000 EUR 125 0.4000 EUR 175 0.4000 EUR 250 0.4000 EUR 350 0.4000 EUR 450 0.4000 EUR Extension Spring Buy Product image Extension Spring Z-142X Quantity: Add to shopping cart Technical Data - Extension Spring Z-142X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 14.5 mm outer coil diameter Dh 17.8 mm minimum bush diameter L0 42.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 25.5 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 23.35 mm Maximum spring deflection Fn 182.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 8.65 mm distance of inner edge of loop from the spring body R 7.103 N/mm Spring rate F0 16.7 N initial tension Fntol 14.9 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 19 degree (+/-) tolerance of loop position Weight 13.35 g weight of one spring Price group #ZE - price group CAD drawing Extension Spring Z-142X Datasheet Extension Spring Z-142X Spring steel Ø 2 x 14.5 x 42.8 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-142X Spring steel Ø 2 x 14.5 x 42.8 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-142X Spring steel Ø 2 x 14.5 x 42.8 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-142X Spring steel Ø 2 x 14.5 x 42.8 mm / 270° force-path-calculation Extension Spring Z-142X Similar Extension Spring RZ-142I Stainless steel Ø 2 x 14.5 x 42.8 mm / 180° Similar Extension Spring RZ-142I Customs tariff number: 73202085; Extension Spring Z-142X Country of origin: DE, German; Extension Spring Z-142X Product image - Extension Springs Z-142X QR-Code: Extension Spring Z-142X
