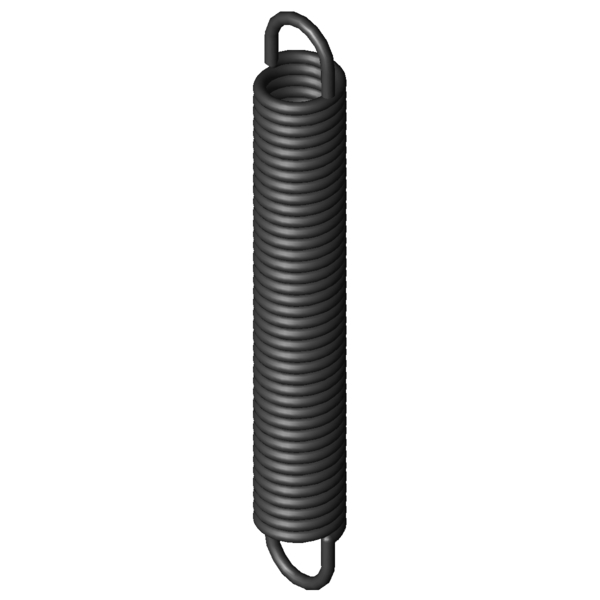

Home » Products » Extension Springs » z-147oi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-147OI Spring steel Ø 2.2 x 15 x 107 mm / 180° Scaled prices - Extension Spring Z-147OI Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6900 EUR 175 0.6900 EUR 250 0.6900 EUR 350 0.6900 EUR 450 0.6900 EUR Extension Spring Buy Product image Extension Spring Z-147OI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-147OI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2.2 mm Wire diameter D mm mean coil diameter De 15 mm outer coil diameter Dh 18.6 mm minimum bush diameter L0 107 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 89.1 mm length of unstressed spring body Ln 179.6 mm maximum spring length, inner loop to inner loop sn 72.6 mm Maximum spring deflection Fn 229.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 8.95 mm distance of inner edge of loop from the spring body R 2.881 N/mm Spring rate F0 20.81 N initial tension Fntol 15.23 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 34 degree (+/-) tolerance of loop position Weight 49.97 g weight of one spring Price group #ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-147OI Spring steel Ø 2.2 x 15 x 107 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-147OI Spring steel Ø 2.2 x 15 x 107 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-147OI Spring steel Ø 2.2 x 15 x 107 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-147OI Spring steel Ø 2.2 x 15 x 107 mm / 180° force-path-calculation Extension Spring Z-147OI Inquiry formular Extension Spring Z-147OI Spring steel Ø 2.2 x 15 x 107 mm / 180° Inquiry formular Extension Spring Z-147OI Similar extension springs to Extension Spring Z-147OI Spring steel Ø 2.2 x 15 x 107 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-147OI EN 10270-1 2.2 15 107 229.9 179.6 72.6 2.881 100.0 | 100.0 | 100.0 | 100.0 RZ-147OI 1.4310 2.2 15 107 192.2 177.97 70.97 2.474 92.1 | 100.0 | 90.7 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-115V-23I 15 82 0.518 EN 10270-1 79.83 223.8 141.8 47.4 | 81.6 | 43.0 | 17.8 Z-121KI 15.5 96 0.535 EN 10270-1 92.71 255.58 159.58 49.2 | 86.4 | 42.9 | 18.3 Z-124CI 14.1 118 0.556 EN 10270-1 101.3 286.02 168.02 49.5 | 85.8 | 43.6 | 19.0 Z-121JI 15.5 86.5 0.614 EN 10270-1 92.71 225.55 139.05 50.3 | 83.4 | 46.3 | 21.1 Z-124BI 14.1 105 0.639 EN 10270-1 101.3 251.19 146.19 52.3 | 88.3 | 46.9 | 21.9 Z-115V-36I 12 108.5 0.724 EN 10270-1 98.5 234.57 126.07 52.4 | 82.3 | 50.2 | 24.7 Z-124AI 14.1 94.2 0.735 EN 10270-1 101.3 221.3 127.1 53.6 | 84.9 | 50.6 | 25.2 Z-130K-04I 16 109 0.77 EN 10270-1 124.8 258.25 149.25 56.4 | 91.2 | 51.5 | 26.4 Z-124HI 12.7 115 0.807 EN 10270-1 111.8 243.25 128.25 54.5 | 83.5 | 52.6 | 27.5 Z-141I 18 104 1.007 EN 10270-1 149.2 240.46 136.46 61.4 | 90.5 | 59.1 | 34.5 Z-141HI 16 121 1.2 EN 10270-1 166.7 247.84 126.84 65.8 | 91.0 | 64.9 | 41.5 Z-144BI 14.5 126 1.56 EN 10270-1 182.5 232.34 106.34 73.0 | 90.8 | 73.8 | 54.2 Z-144AI 14.5 112 1.795 EN 10270-1 182.5 204.42 92.42 78.6 | 94.4 | 79.0 | 62.4 Z-144I 14.5 98.8 2.113 EN 10270-1 182.5 177.31 78.51 84.2 | 93.3 | 85.9 | 73.4 Z-147OI 15 107 2.881 EN 10270-1 229.9 179.6 72.6 100.0 | 100.0 | 100.0 | 100.0 Z-147AI 12 108 3.505 EN 10270-1 216.4 164.14 56.14 86.0 | 90.0 | 85.7 | 82.2 Z-162I 15 118 5.158 EN 10270-1 324.5 175.21 57.21 74.5 | 92.9 | 74.8 | 55.8 Z-162U-40I 18 105.5 8.891 EN 10270-1 452.6 151.49 45.99 58.1 | 85.1 | 57.1 | 32.2 Z-177SI 18 111 23.39 EN 10270-1 739.6 139.55 28.55 42.6 | 80.3 | 35.2 | 12.2 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring Z-147OI Country of origin: DE, German; Extension Spring Z-147OI Product image - Extension Springs Z-147OI QR-Code: Extension Spring Z-147OI
