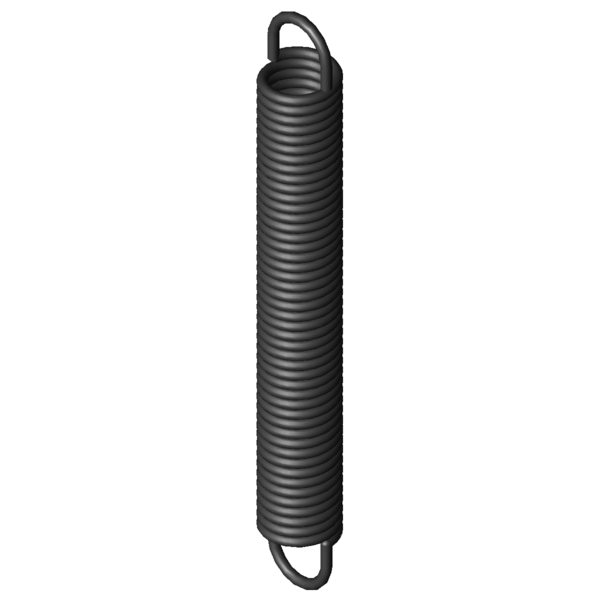

Home » Products » Extension Springs » z-174ai Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-174AI Spring steel Ø 3.2 x 23.2 x 180 mm / 180° Scaled prices - Extension Spring Z-174AI Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring Z-174AI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-174AI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 23.2 mm outer coil diameter Dh 28.4 mm minimum bush diameter L0 180 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 152 mm length of unstressed spring body Ln 319.21 mm maximum spring length, inner loop to inner loop sn 139.21 mm Maximum spring deflection Fn 430.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14 mm distance of inner edge of loop from the spring body R 2.872 N/mm Spring rate F0 30.4 N initial tension Fntol 25.1 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 30 degree (+/-) tolerance of loop position Weight 192.78 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-174AI Spring steel Ø 3.2 x 23.2 x 180 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-174AI Spring steel Ø 3.2 x 23.2 x 180 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-174AI Spring steel Ø 3.2 x 23.2 x 180 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-174AI Spring steel Ø 3.2 x 23.2 x 180 mm / 180° force-path-calculation Extension Spring Z-174AI Inquiry formular Extension Spring Z-174AI Spring steel Ø 3.2 x 23.2 x 180 mm / 180° Inquiry formular Extension Spring Z-174AI Similar extension springs to Extension Spring Z-174AI Spring steel Ø 3.2 x 23.2 x 180 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-174AI EN 10270-1 3.2 23.2 180 430.1 319.21 139.21 2.872 100.0 | 100.0 | 100.0 | 100.0 RZ-174AI 1.4310 3.2 23.2 180 356.7 314.78 134.78 2.466 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-156CI 22.5 185 0.809 EN 10270-1 223.8 439.85 254.85 57.5 | 90.8 | 53.3 | 28.4 Z-156BI 22.5 165 0.93 EN 10270-1 223.8 386.69 221.69 59.7 | 88.9 | 57.4 | 32.7 Z-162K-03I 25 199 0.978 EN 10270-1 277.6 460.62 261.62 61.2 | 90.3 | 58.9 | 34.3 Z-156AI 22.5 148 1.07 EN 10270-1 223.8 340.69 192.69 61.8 | 85.8 | 62.1 | 37.6 Z-156LI 20 191 1.134 EN 10270-1 249.9 393.67 202.67 63.2 | 86.2 | 63.4 | 39.9 Z-162K-02I 25 171 1.18 EN 10270-1 277.6 387.9 216.9 65.9 | 91.8 | 64.4 | 41.4 Z-156KI 20 163.5 1.362 EN 10270-1 249.9 332.14 168.64 67.8 | 85.1 | 70.3 | 48.0 Z-159CI 18.5 179 1.58 EN 10270-1 268.6 334.75 155.75 72.5 | 85.8 | 75.9 | 55.8 Z-162U-34I 24 193 1.665 EN 10270-1 348.5 385.78 192.78 76.6 | 94.6 | 76.6 | 58.5 Z-162U-33I 24 172 1.916 EN 10270-1 348.5 339.56 167.56 81.6 | 95.3 | 82.1 | 67.3 Z-162PI 20 194 2.068 EN 10270-1 341.5 345.81 151.81 82.4 | 88.8 | 85.6 | 72.8 Z-162U-32I 24 154 2.2 EN 10270-1 348.5 299.94 145.94 85.8 | 92.0 | 88.2 | 77.3 Z-162O-02I 20 171 2.39 EN 10270-1 341.5 302.36 131.36 86.9 | 89.6 | 86.9 | 84.1 Z-174BI 23.2 202 2.496 EN 10270-1 430.1 362.17 160.17 92.2 | 96.4 | 93.5 | 86.9 Z-174AI 23.2 180 2.872 EN 10270-1 430.1 319.21 139.21 100.0 | 100.0 | 100.0 | 100.0 Z-174I 23.2 158 3.38 EN 10270-1 430.1 276.25 118.25 91.1 | 95.9 | 92.5 | 84.9 Z-177OI 25 176 4.42 EN 10270-1 555.1 293.28 117.28 79.8 | 93.2 | 80.9 | 65.3 Z-177AI 19.2 174 5.609 EN 10270-1 510 256.83 82.83 71.7 | 93.1 | 71.9 | 50.2 Z-204I 24 193 8.049 EN 10270-1 765.7 279.58 86.58 61.4 | 90.0 | 59.2 | 34.9 Z-232I 25 182 14.475 EN 10270-1 1008 244.1 62.1 50.1 | 87.6 | 43.6 | 19.0 Z-231I 25 155 17.633 EN 10270-1 1008 205.98 50.98 46.2 | 83.3 | 39.6 | 15.6 Number of similar metal springs: 20 Customs tariff number: 73202085; Extension Spring Z-174AI Country of origin: DE, German; Extension Spring Z-174AI Product image - Extension Springs Z-174AI QR-Code: Extension Spring Z-174AI
