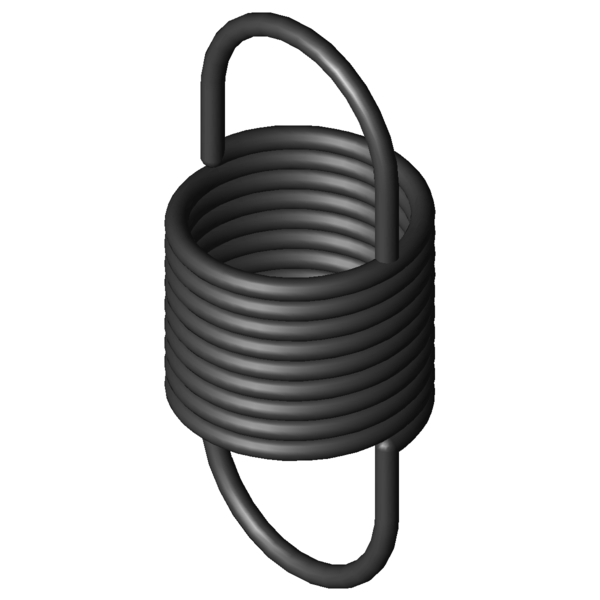

Home » Products » Extension Springs » z-177fi Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Extension Spring Z-177FI Spring steel Ø 3.6 x 40 x 92.1 mm / 180° Scaled prices - Extension Spring Z-177FI Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 3.2800 EUR 37 3.2800 EUR 75 3.2800 EUR 125 3.2800 EUR 175 3.2800 EUR 250 3.2800 EUR 350 3.2800 EUR Extension Spring Buy Product image Extension Spring Z-177FI Quantity: Add to shopping cart Technical Data - Extension Spring Z-177FI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm prestressed spring deflection F2 - N loaded spring force L2 - mm loaded spring length s2 - mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.6 mm Wire diameter D - mm mean coil diameter De 40 mm outer coil diameter Dh 46 mm minimum bush diameter L0 92.1 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 37.8 mm length of unstressed spring body Ln - mm maximum spring length, inner loop to inner loop sn 90.38 mm Maximum spring deflection Fn 357.1 N Maximum spring force n - pc. Number of aktive coils nt - pc. total number of coils Lh 27.15 mm distance of inner edge of loop from the spring body R 3.735 N/mm Spring rate F0 19.6 N initial tension Fntol 23.71 N (+/-) tolerance of maximum spring force L0tol 1.8 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 103.54 g weight of one spring Price group ###AB - price group CAD drawing Extension Spring Z-177FI Datasheet Extension Spring Z-177FI Spring steel Ø 3.6 x 40 x 92.1 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177FI Spring steel Ø 3.6 x 40 x 92.1 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-177FI Spring steel Ø 3.6 x 40 x 92.1 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177FI Spring steel Ø 3.6 x 40 x 92.1 mm / 180° force-path-calculation Extension Spring Z-177FI Similar Extension Spring RZ-177FI Stainless steel Ø 3.6 x 40 x 92.1 mm / 180° Similar Extension Spring RZ-177FI Customs tariff number: 73202085; Extension Spring Z-177FI Country of origin: DE, German; Extension Spring Z-177FI Product image - Extension Springs Z-177FI QR-Code: Extension Spring Z-177FI
