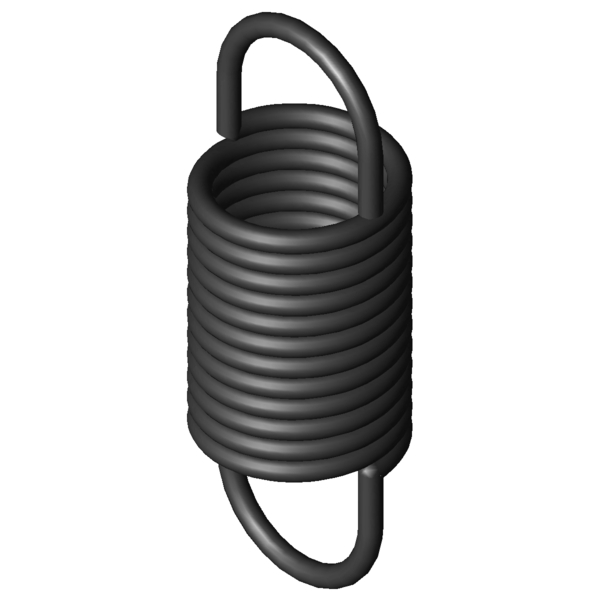

Home » Products » Extension Springs » z-177k-10i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177K-10I Spring steel Ø 3.6 x 32 x 89 mm / 180° Scaled prices - Extension Spring Z-177K-10I Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 3.4700 EUR 37 3.4700 EUR 75 3.4700 EUR 125 3.4700 EUR 175 3.4700 EUR 250 3.4700 EUR 350 3.4700 EUR Extension Spring Buy Product image Extension Spring Z-177K-10I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177K-10I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37.8 mm minimum bush diameter L0 89 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 48.6 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 68 mm Maximum spring deflection Fn 441.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 20.2 mm distance of inner edge of loop from the spring body R 5.98 N/mm Spring rate F0 35.3 N initial tension Fntol 23.8 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 102.33 g weight of one spring Price group ###AC - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177K-10I Spring steel Ø 3.6 x 32 x 89 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177K-10I Spring steel Ø 3.6 x 32 x 89 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-177K-10I Spring steel Ø 3.6 x 32 x 89 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177K-10I Spring steel Ø 3.6 x 32 x 89 mm / 180° force-path-calculation Extension Spring Z-177K-10I Inquiry formular Extension Spring Z-177K-10I Spring steel Ø 3.6 x 32 x 89 mm / 180° Inquiry formular Extension Spring Z-177K-10I Customs tariff number: 73202085; Extension Spring Z-177K-10I Country of origin: DE, German; Extension Spring Z-177K-10I Product image - Extension Springs Z-177K-10I QR-Code: Extension Spring Z-177K-10I
