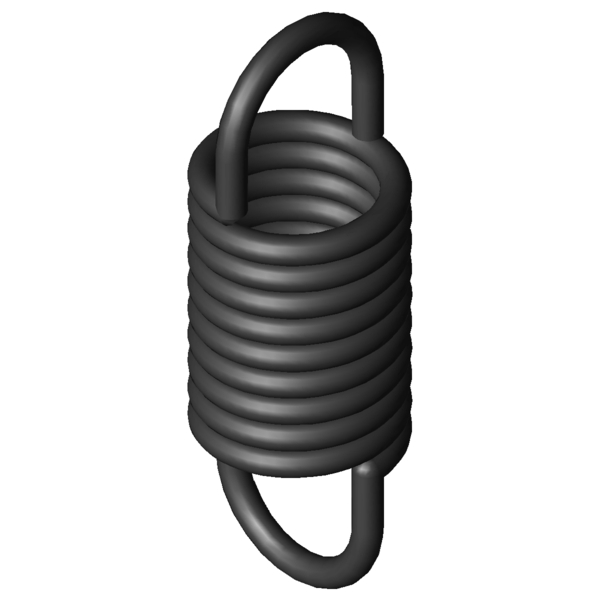

Home » Products » Extension Springs » z-177lx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177LX Spring steel Ø 3.6 x 25 x 68.1 mm / 270° Scaled prices - Extension Spring Z-177LX Quantity Single price [EUR] 1 12.3700 EUR 2 9.8500 EUR 3 5.1300 EUR 7 3.0500 EUR 17 3.0500 EUR 37 3.0500 EUR 75 3.0500 EUR 125 3.0500 EUR 175 3.0500 EUR 250 3.0500 EUR 350 3.0500 EUR Extension Spring Buy Product image Extension Spring Z-177LX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177LX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 25 mm outer coil diameter Dh 30.8 mm minimum bush diameter L0 68.1 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 38.7 mm length of unstressed spring body Ln 97.05 mm maximum spring length, inner loop to inner loop sn 28.95 mm Maximum spring deflection Fn 555.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.7 mm distance of inner edge of loop from the spring body R 17.907 N/mm Spring rate F0 36.8 N initial tension Fntol 47.69 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 17 degree (+/-) tolerance of loop position Weight 62.2264 g weight of one spring Price group ###AA - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177LX Spring steel Ø 3.6 x 25 x 68.1 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177LX Spring steel Ø 3.6 x 25 x 68.1 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177LX Spring steel Ø 3.6 x 25 x 68.1 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177LX Spring steel Ø 3.6 x 25 x 68.1 mm / 270° force-path-calculation Extension Spring Z-177LX Inquiry formular Extension Spring Z-177LX Spring steel Ø 3.6 x 25 x 68.1 mm / 270° Inquiry formular Extension Spring Z-177LX Similar extension springs to Extension Spring Z-177LX Spring steel Ø 3.6 x 25 x 68.1 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177LX EN 10270-1 3.6 25 68.1 555.1 97.05 28.95 17.907 100.0 | 100.0 | 100.0 | 100.0 RZ-177LX 1.4310 3.6 25 68.1 463.3 96.32 28.22 15.381 92.0 | 100.0 | 90.5 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-137X 18.6 65 1.804 EN 10270-1 144.7 139.23 74.23 39.3 | 75.1 | 32.5 | 10.2 Z-147K-21X 20 75.5 1.964 EN 10270-1 176.1 158.5 83 40.5 | 77.1 | 33.3 | 11.1 Z-151AX 27.5 71 1.99 EN 10270-1 184.9 156.71 85.71 43.4 | 85.4 | 33.5 | 11.3 Z-151X 27.5 68.5 2.168 EN 10270-1 184.9 147.49 78.99 44.6 | 86.6 | 35.0 | 12.2 Z-147FX 24 55.6 2.363 EN 10270-1 148 114.12 58.52 43.6 | 79.6 | 38.1 | 13.2 Z-162FX 30 69.8 3.191 EN 10270-1 233.4 137.38 67.58 48.9 | 86.2 | 42.4 | 18.0 Z-154X 22.5 60.5 4.234 EN 10270-1 223.8 109.19 48.69 52.2 | 82.8 | 49.9 | 24.0 Z-156FX 20 63.5 5.034 EN 10270-1 249.9 109.14 45.64 54.6 | 80.9 | 54.2 | 28.6 Z-162K-20X 25 65 5.32 EN 10270-1 277.6 113.1 48.1 58.8 | 91.1 | 55.1 | 30.1 Z-169X 28.2 76.4 5.818 EN 10270-1 358.7 134.02 57.62 59.6 | 88.9 | 57.4 | 32.5 Z-162U-28X 24 69 6.99 EN 10270-1 348.5 114.9 45.9 65.1 | 92.7 | 62.9 | 39.6 Z-162MX 20 70.6 7.813 EN 10270-1 341.5 110.79 40.19 65.3 | 84.7 | 66.8 | 44.3 Z-177MX 25 89.7 11.086 EN 10270-1 555.1 136.46 46.76 78.3 | 92.0 | 81.0 | 61.9 Z-172X 23.2 68.4 11.364 EN 10270-1 430.1 103.58 35.18 79.1 | 93.8 | 79.9 | 63.8 Z-177LX 25 68.1 17.907 EN 10270-1 555.1 97.05 28.95 100.0 | 100.0 | 100.0 | 100.0 Z-202X 24 85.6 23.709 EN 10270-1 765.7 115 29.4 82.5 | 88.5 | 85.5 | 73.6 Z-230HX 25 87 38.03 EN 10270-1 1008 110.6 23.6 66.4 | 86.1 | 68.3 | 44.9 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-177LX Country of origin: DE, German; Extension Spring Z-177LX Product image - Extension Springs Z-177LX QR-Code: Extension Spring Z-177LX
