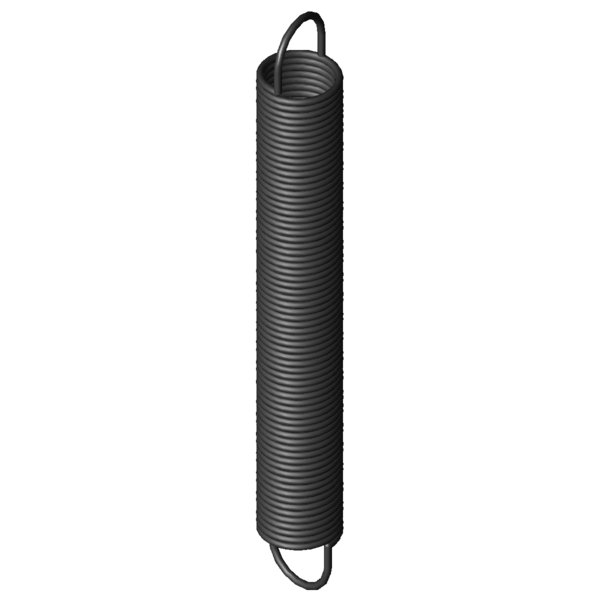

Home » Products » Extension Springs » z-276x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-276X Spring steel Ø 5.5 x 60 x 468 mm / 270° Scaled prices - Extension Spring Z-276X Quantity Single price [EUR] 1 44.4600 EUR 2 35.8800 EUR 3 35.4200 EUR 7 32.5900 EUR 17 32.5900 EUR 37 32.5900 EUR 75 32.5900 EUR 125 32.5900 EUR 175 32.5900 EUR 250 32.5900 EUR 350 32.5900 EUR Extension Spring Buy Product image Extension Spring Z-276X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-276X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 60 mm outer coil diameter Dh 69.3 mm minimum bush diameter L0 468 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 389.3 mm length of unstressed spring body Ln 1360.08 mm maximum spring length, inner loop to inner loop sn 892.08 mm Maximum spring deflection Fn 774.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 39.43 mm distance of inner edge of loop from the spring body R 0.828 N/mm Spring rate F0 38 N initial tension Fntol 34.57 N (+/-) tolerance of maximum spring force L0tol 7.02 mm (+/-) tolerance of unstressed length Detol 1 mm (+/-) tolerance of outer coil diameter Oesttol 54 degree (+/-) tolerance of loop position Weight 2300.8031 g weight of one spring Price group ###BF - price group Technical drawing Extension Spring Datasheet Extension Spring Z-276X Spring steel Ø 5.5 x 60 x 468 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-276X Spring steel Ø 5.5 x 60 x 468 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-276X Spring steel Ø 5.5 x 60 x 468 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-276X Spring steel Ø 5.5 x 60 x 468 mm / 270° force-path-calculation Extension Spring Z-276X Inquiry formular Extension Spring Z-276X Spring steel Ø 5.5 x 60 x 468 mm / 270° Inquiry formular Extension Spring Z-276X Similar extension springs to Extension Spring Z-276X Spring steel Ø 5.5 x 60 x 468 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-276X EN 10270-1 5.5 60 468 774.5 1360.08 892.08 0.828 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209KX 60 401 0.35 EN 10270-1 438 1591.3 1190.3 65.8 | 89.2 | 65.7 | 42.4 Z-209JX 60 365 0.39 EN 10270-1 438 1418.8 1053.8 68.4 | 86.6 | 70.6 | 47.9 Z-238KX 60 433 0.55 EN 10270-1 585 1450 1017 80.8 | 94.5 | 81.6 | 66.3 Z-238JX 60 393 0.62 EN 10270-1 585 1293.4 900.4 84.6 | 91.6 | 87.3 | 74.8 Z-238HX 60 353 0.71 EN 10270-1 585 1136.7 783.7 85.5 | 88.8 | 81.7 | 86.0 Z-276X 60 468 0.828 EN 10270-1 774.5 1360.08 892.08 100.0 | 100.0 | 100.0 | 100.0 Z-275X 60 424 0.933 EN 10270-1 774.5 1213.76 789.76 93.2 | 96.9 | 94.3 | 88.5 Z-305X 70 488 1.005 EN 10270-1 968.5 1406.54 918.54 86.8 | 89.6 | 88.5 | 82.3 Z-274X 60 380 1.071 EN 10270-1 774.5 1067.45 687.45 86.4 | 93.7 | 88.5 | 77.1 Z-304X 70 438 1.155 EN 10270-1 968.5 1237.54 799.54 81.8 | 88.9 | 84.8 | 71.7 Z-313X 60 522 1.486 EN 10270-1 1122 1223.34 701.34 73.5 | 92.3 | 73.8 | 54.3 Z-283X 50 452 1.517 EN 10270-1 921.2 1006.69 554.69 72.9 | 93.3 | 73.1 | 52.3 Z-312X 60 472 1.678 EN 10270-1 1122 1092.9 620.9 70.9 | 95.5 | 69.3 | 48.0 Z-341X 70 474 1.82 EN 10270-1 1287 1129.08 655.08 66.2 | 87.7 | 66.8 | 44.2 Z-311X 60 422 1.928 EN 10270-1 1122 962.46 540.46 66.4 | 92.5 | 64.8 | 41.8 Z-310X 60 377 2.217 EN 10270-1 1122 847.07 470.07 62.2 | 89.3 | 60.9 | 36.4 Z-350X 60 570 2.356 EN 10270-1 1489 1146.9 576.9 59.6 | 86.9 | 58.3 | 33.6 Z-349X 60 514 2.661 EN 10270-1 1489 1024.84 510.84 58.1 | 89.9 | 54.6 | 29.8 Z-348X 60 458 3.057 EN 10270-1 1489 902.66 444.66 56.3 | 92.1 | 50.9 | 25.9 Z-319X 50 456 3.114 EN 10270-1 1331 845.08 389.08 55.2 | 89.4 | 50.9 | 25.4 Z-347X 60 408 3.514 EN 10270-1 1489 794.75 386.75 52.9 | 88.6 | 47.7 | 22.6 Number of similar metal springs: 20 Customs tariff number: 73202085; Extension Spring Z-276X Country of origin: DE, German; Extension Spring Z-276X Product image - Extension Springs Z-276X QR-Code: Extension Spring Z-276X
