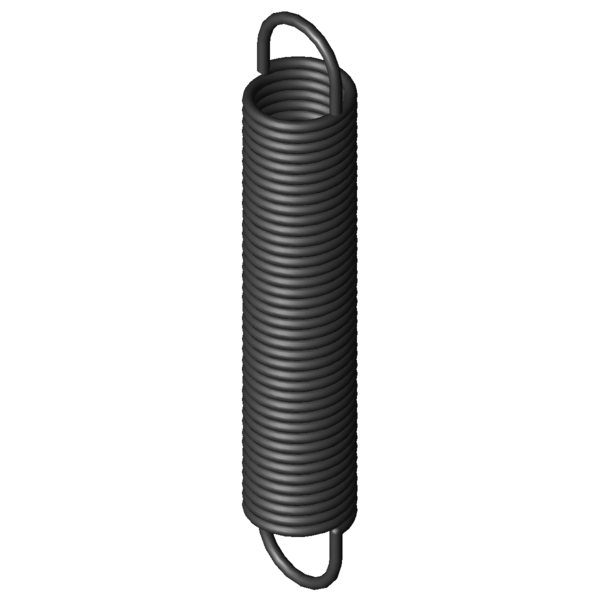

Home » Products » Extension Springs » z-279i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-279I Spring steel Ø 5.5 x 50 x 290 mm / 180° Scaled prices - Extension Spring Z-279I Quantity Single price [EUR] 1 16.0400 EUR 2 12.7700 EUR 3 8.7800 EUR 7 6.9200 EUR 17 6.9200 EUR 37 6.9200 EUR 75 6.9200 EUR 125 6.9200 EUR 175 6.9200 EUR 250 6.9200 EUR 350 6.9200 EUR Extension Spring Buy Product image Extension Spring Z-279I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-279I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 59.1 mm minimum bush diameter L0 290 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 228.25 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 322.08 mm Maximum spring deflection Fn 921.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 30.87 mm distance of inner edge of loop from the spring body R 2.612 N/mm Spring rate F0 80 N initial tension Fntol 44.9 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 0.8 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 1109.6101 g weight of one spring Price group ###AQ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-279I Spring steel Ø 5.5 x 50 x 290 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-279I Spring steel Ø 5.5 x 50 x 290 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-279I Spring steel Ø 5.5 x 50 x 290 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-279I Spring steel Ø 5.5 x 50 x 290 mm / 180° force-path-calculation Extension Spring Z-279I Inquiry formular Extension Spring Z-279I Spring steel Ø 5.5 x 50 x 290 mm / 180° Inquiry formular Extension Spring Z-279I Customs tariff number: 73202085; Extension Spring Z-279I Country of origin: DE, German; Extension Spring Z-279I Product image - Extension Springs Z-279I QR-Code: Extension Spring Z-279I
