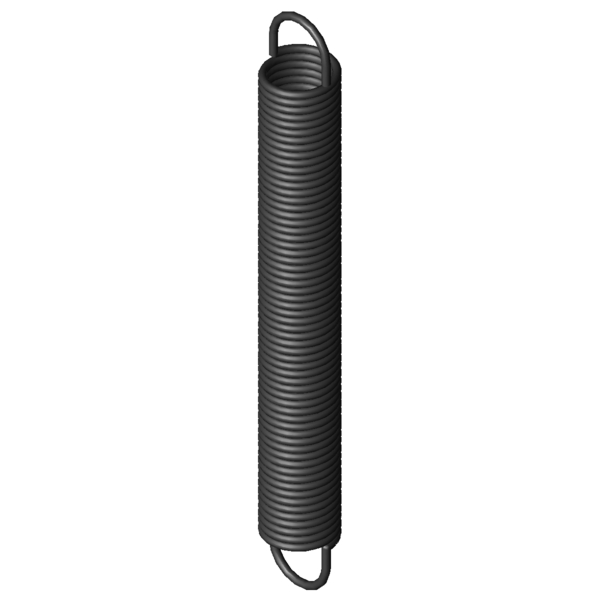

Home » Products » Extension Springs » z-282i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-282I Spring steel Ø 5.5 x 50 x 406 mm / 180° Scaled prices - Extension Spring Z-282I Quantity Single price [EUR] 1 37.1900 EUR 2 29.6300 EUR 3 28.2300 EUR 7 25.1100 EUR 17 25.1100 EUR 37 25.1100 EUR 75 25.1100 EUR 125 25.1100 EUR 175 25.1100 EUR 250 25.1100 EUR 350 25.1100 EUR Extension Spring Buy Product image Extension Spring Z-282I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-282I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 59.1 mm minimum bush diameter L0 406 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 343.75 mm length of unstressed spring body Ln 895.08 mm maximum spring length, inner loop to inner loop sn 489.08 mm Maximum spring deflection Fn 921.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 31.12 mm distance of inner edge of loop from the spring body R 1.72 N/mm Spring rate F0 80 N initial tension Fntol 42.88 N (+/-) tolerance of maximum spring force L0tol 6.06 mm (+/-) tolerance of unstressed length Detol 0.8 mm (+/-) tolerance of outer coil diameter Oesttol 46 degree (+/-) tolerance of loop position Weight 1661.1323 g weight of one spring Price group ###BD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-282I Spring steel Ø 5.5 x 50 x 406 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-282I Spring steel Ø 5.5 x 50 x 406 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-282I Spring steel Ø 5.5 x 50 x 406 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-282I Spring steel Ø 5.5 x 50 x 406 mm / 180° force-path-calculation Extension Spring Z-282I Inquiry formular Extension Spring Z-282I Spring steel Ø 5.5 x 50 x 406 mm / 180° Inquiry formular Extension Spring Z-282I Similar extension springs to Extension Spring Z-282I Spring steel Ø 5.5 x 50 x 406 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-282I EN 10270-1 5.5 50 406 921.2 895.08 489.08 1.72 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209KI 60 401 0.35 EN 10270-1 438 1587 1186 50.7 | 88.0 | 44.4 | 19.6 Z-185I 44 373 0.526 EN 10270-1 436.3 1156.22 783.22 56.2 | 84.2 | 54.9 | 29.6 Z-238JI 60 393 0.62 EN 10270-1 585 1289.7 896.7 61.3 | 90.3 | 59.0 | 34.6 Z-216I 50 382 0.638 EN 10270-1 532.3 1172.37 790.37 62.5 | 92.0 | 59.8 | 35.8 Z-215I 50 346 0.721 EN 10270-1 532.3 1045.39 699.39 64.4 | 89.0 | 63.9 | 40.4 Z-214I 50 310 0.829 EN 10270-1 532.3 918.41 608.41 67.2 | 86.1 | 69.1 | 46.5 Z-275I 60 422 0.936 EN 10270-1 774.5 1208.57 786.57 72.9 | 93.2 | 73.1 | 52.3 Z-246I 50 417 1.005 EN 10270-1 707.9 1074.38 657.38 76.3 | 96.1 | 75.6 | 57.2 Z-245I 50 377 1.136 EN 10270-1 707.9 958.71 581.71 79.9 | 94.6 | 80.5 | 64.6 Z-244I 50 337 1.306 EN 10270-1 707.9 843.04 506.04 84.1 | 91.3 | 86.7 | 74.3 Z-283I 50 450 1.522 EN 10270-1 921.2 1002.7 552.7 93.2 | 96.7 | 94.2 | 88.5 Z-282I 50 406 1.72 EN 10270-1 921.2 895.08 489.08 100.0 | 100.0 | 100.0 | 100.0 Z-311I 60 420 1.937 EN 10270-1 1122 957.95 537.95 88.6 | 89.1 | 86.5 | 90.3 Z-281I 50 362 1.977 EN 10270-1 921.2 787.46 425.46 92.3 | 96.4 | 93.5 | 87.0 Z-253I 40 401 2.137 EN 10270-1 873.5 774.71 373.71 85.4 | 89.9 | 85.6 | 80.6 Z-280I 50 324 2.275 EN 10270-1 921.2 693.79 369.79 85.6 | 93.3 | 87.8 | 75.6 Z-319I 50 454 3.127 EN 10270-1 1331 841.5 387.5 73.8 | 92.2 | 74.2 | 54.8 Z-347I 60 406 3.533 EN 10270-1 1489 790.68 384.68 68.7 | 87.3 | 70.3 | 48.7 Z-318I 50 404 3.594 EN 10270-1 1331 741.1 337.1 70.8 | 95.6 | 69.1 | 47.7 Z-289I 40 390 3.691 EN 10270-1 1134 664.75 274.75 68.8 | 92.0 | 68.7 | 45.6 Z-317I 50 360 4.136 EN 10270-1 1331 652.99 292.99 66.0 | 92.0 | 64.6 | 41.5 Z-316I 50 322 4.748 EN 10270-1 1331 577.19 255.19 61.9 | 88.9 | 60.7 | 36.1 Z-356I 50 496 5.002 EN 10270-1 1763 808.54 312.54 59.4 | 86.8 | 58.1 | 33.4 Z-355I 50 440 5.75 EN 10270-1 1763 711.88 271.88 57.7 | 90.3 | 53.9 | 29.0 Z-354I 50 391 6.616 EN 10270-1 1763 627.31 236.31 55.7 | 91.6 | 50.3 | 25.2 Z-376I 60 402 7.328 EN 10270-1 2132 660.26 258.26 51.5 | 83.7 | 48.0 | 22.8 Z-353I 50 349 7.596 EN 10270-1 1763 554.82 205.82 52.4 | 88.2 | 47.2 | 22.0 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-282I Country of origin: DE, German; Extension Spring Z-282I Product image - Extension Springs Z-282I QR-Code: Extension Spring Z-282I
