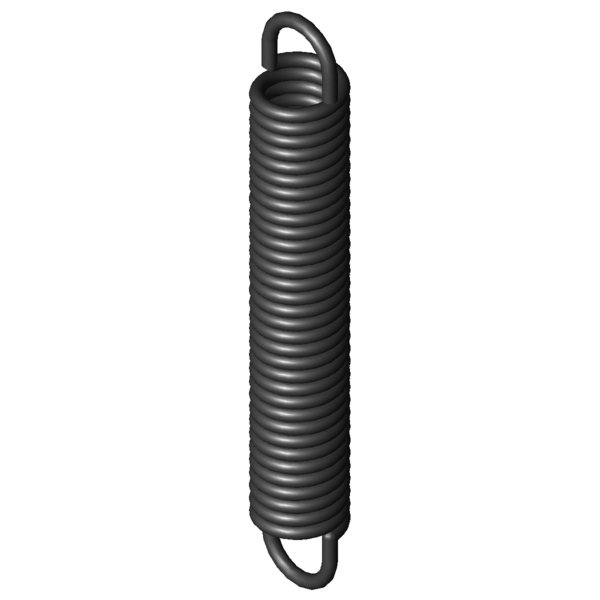

Home » Products » Extension Springs » z-322i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-322I Spring steel Ø 6.3 x 40 x 262 mm / 180° Scaled prices - Extension Spring Z-322I Quantity Single price [EUR] 1 18.8000 EUR 2 14.9700 EUR 3 11.4700 EUR 7 9.9300 EUR 17 9.9300 EUR 37 9.9300 EUR 75 9.9300 EUR 125 9.9300 EUR 175 9.9300 EUR 250 9.9300 EUR 350 9.9300 EUR Extension Spring Buy Product image Extension Spring Z-322I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-322I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 50 mm minimum bush diameter L0 262 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 217.35 mm length of unstressed spring body Ln 376.45 mm maximum spring length, inner loop to inner loop sn 114.45 mm Maximum spring deflection Fn 1632 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 22.32 mm distance of inner edge of loop from the spring body R 12.517 N/mm Spring rate F0 200 N initial tension Fntol 110 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 31 degree (+/-) tolerance of loop position Weight 919.8742 g weight of one spring Price group ###AY - price group Technical drawing Extension Spring Datasheet Extension Spring Z-322I Spring steel Ø 6.3 x 40 x 262 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-322I Spring steel Ø 6.3 x 40 x 262 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-322I Spring steel Ø 6.3 x 40 x 262 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-322I Spring steel Ø 6.3 x 40 x 262 mm / 180° force-path-calculation Extension Spring Z-322I Inquiry formular Extension Spring Z-322I Spring steel Ø 6.3 x 40 x 262 mm / 180° Inquiry formular Extension Spring Z-322I Similar extension springs to Extension Spring Z-322I Spring steel Ø 6.3 x 40 x 262 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-322I EN 10270-1 6.3 40 262 1632 376.45 114.45 12.517 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-189I 36 236 1.712 EN 10270-1 528.1 524.51 288.51 43.3 | 81.2 | 36.0 | 12.8 Z-221I 40 295 1.745 EN 10270-1 658.2 639.78 344.78 45.6 | 86.7 | 36.8 | 13.4 Z-220I 40 264 2.008 EN 10270-1 658.2 563.67 299.67 48.3 | 90.2 | 39.3 | 15.4 Z-219I 40 236 2.306 EN 10270-1 658.2 497 261 49.0 | 87.2 | 42.1 | 17.7 Z-251I 40 321 2.776 EN 10270-1 873.5 608.68 287.68 51.6 | 87.0 | 46.7 | 21.3 Z-218I 40 205 2.787 EN 10270-1 658.2 420.09 215.09 50.5 | 83.2 | 46.8 | 21.5 Z-250I 40 286 3.194 EN 10270-1 873.5 536.04 250.04 54.8 | 90.3 | 49.6 | 24.5 Z-249I 40 256 3.667 EN 10270-1 873.5 473.77 217.77 57.8 | 92.4 | 53.0 | 28.1 Z-248I 40 221 4.433 EN 10270-1 873.5 401.13 180.13 60.1 | 87.9 | 58.5 | 34.0 Z-287I 40 308 4.882 EN 10270-1 1134 515.74 207.74 63.8 | 90.8 | 62.3 | 38.3 Z-286I 40 275 5.605 EN 10270-1 1134 455.93 180.93 68.2 | 94.2 | 66.4 | 44.0 Z-285I 40 236 6.777 EN 10270-1 1134 385.66 149.66 72.9 | 92.5 | 73.0 | 53.1 Z-284I 40 203 8.255 EN 10270-1 1134 325.86 122.86 78.1 | 88.3 | 81.3 | 64.7 Z-323I 40 306 10.353 EN 10270-1 1632 444.36 138.36 89.8 | 95.2 | 91.4 | 82.7 Z-322I 40 262 12.517 EN 10270-1 1632 376.45 114.45 100.0 | 100.0 | 100.0 | 100.0 Z-321I 40 224 15.248 EN 10270-1 1632 317.95 93.95 89.4 | 95.2 | 91.0 | 82.1 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring Z-322I Country of origin: DE, German; Extension Spring Z-322I Product image - Extension Springs Z-322I QR-Code: Extension Spring Z-322I
