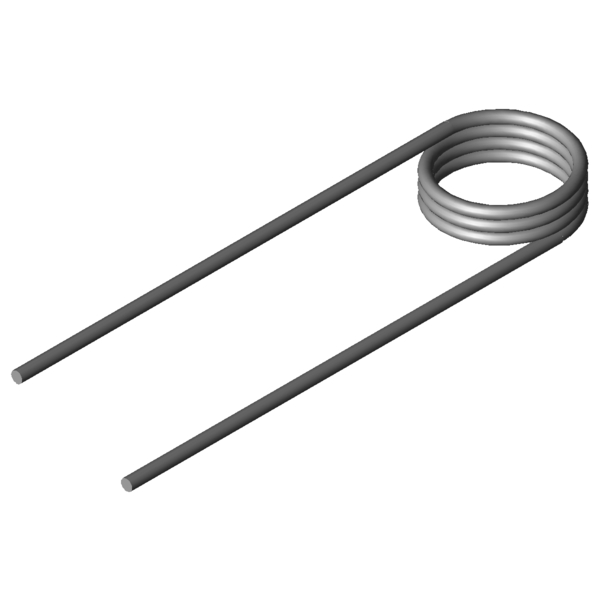

Home » Products » Torsion springs » t-16730r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16730R: Stainless steel Ø 1.4 x 12.6 x 55 mm / 180° Scaled prices - Torsion spring T-16730R Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Torsion spring Buy Product image Torsion spring T-16730R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16730R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 180 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 1.4 mm Wire diameter Di 12.6 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 6.3 mm length of spring body Ls 55 mm leg length RH mm leverage Mntol 75.16 Nmm (+/-) Tolerance maximum torque Mn 289.84 Nmm maximum torque alphan 73.28 degree maximum rotational angle nt 3.5 pc. total number of coils Ddmax 10.8 mm maximum possible mandrel diameter Ddmin 7 mm Min. possible mandrel diameter Ditol 0.3 mm (+/-) tolerance of inner coil diameter Weight 3.2031 g weight of one spring Price group J - price group Technical drawing Torsion spring Datasheet Torsion spring T-16730R: Stainless steel Ø 1.4 x 12.6 x 55 mm / 180° Datasheet download pdf file Metal spring characteristic Torsion spring T-16730R: Stainless steel Ø 1.4 x 12.6 x 55 mm / 180° Metal spring characteristic download pdf file CAD data Torsion spring T-16730R: Stainless steel Ø 1.4 x 12.6 x 55 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16730R: Stainless steel Ø 1.4 x 12.6 x 55 mm / 180° force-path-calculation Torsion spring T-16730R Inquiry formular Torsion spring T-16730R: Stainless steel Ø 1.4 x 12.6 x 55 mm / 180° Inquiry formular Torsion spring T-16730R Similar torsion springs to Torsion spring T-16730R: Stainless steel Ø 1.4 x 12.6 x 55 mm / 180° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18460R 7.2 6 61.92 155.88 1.4310 58.8 | 81.3 | 60.1 | 35.1 T-18486R 9.2 6 63.01 198.26 1.4310 37.5 | 75.1 | 29.4 | 8.0 T-18560R 9 7.5 117.41 151.38 1.4310 46.6 | 75.6 | 44.5 | 19.6 T-18585R 11.5 7.5 119.48 192.47 1.4310 45.9 | 82.2 | 39.6 | 15.7 T-18581R 11.5 4.5 119.48 103.67 1.4310 54.4 | 78.0 | 56.0 | 29.1 T-18681R 9.25 5.63 219.42 65.48 1.4310 83.8 | 84.0 | 82.5 | 84.7 T-18706R 11.25 5.63 223.16 79.27 1.4310 81.7 | 89.3 | 84.7 | 71.2 T-18702R 11.25 4.38 223.16 56.68 1.4310 86.5 | 82.7 | 77.2 | 99.5 T-18731R 14.25 5.63 226.96 99.96 1.4310 74.1 | 89.0 | 75.8 | 57.4 T-18727R 14.25 4.38 226.96 71.47 1.4310 83.5 | 82.4 | 87.9 | 80.3 T-16706R 7.5 6.3 275.27 44.24 1.4310 75.9 | 86.5 | 77.7 | 63.6 T-16718R 10.4 6.3 285.09 60.75 1.4310 89.7 | 94.2 | 90.6 | 84.3 T-16714R 10.4 4.9 285.09 43.39 1.4310 75.3 | 86.8 | 78.8 | 60.2 T-16730R 12.6 6.3 289.84 73.28 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16742R 16.2 6.3 295.06 93.78 1.4310 86.8 | 92.6 | 88.2 | 79.5 T-18802R 8.9 5.6 429.24 34.09 1.4310 56.9 | 82.3 | 57.0 | 31.4 T-18806R 8.9 7.2 429.24 47.76 1.4310 64.1 | 81.9 | 66.3 | 44.0 T-18831R 11.9 7.2 441.52 63.1 1.4310 74.1 | 89.8 | 75.9 | 56.5 T-18827R 11.9 5.6 442.58 45.18 1.4310 64.7 | 90.3 | 63.6 | 40.4 T-18852R 14.4 5.6 449.91 54.47 1.4310 68.4 | 88.0 | 69.4 | 47.9 T-18856R 14.4 7.2 449.91 76.24 1.4310 78.3 | 87.5 | 80.3 | 67.0 T-18902R 10 6.3 554.97 30.91 1.4310 51.6 | 85.7 | 47.2 | 22.0 T-18906R 10 8.1 554.97 43.28 1.4310 54.9 | 78.3 | 55.6 | 30.8 T-18914R 13.5 6.3 572.76 41.37 1.4310 57.5 | 90.4 | 53.5 | 28.6 T-18918R 13.5 8.1 572.76 57.91 1.4310 62.6 | 83.0 | 64.8 | 40.0 T-18926R 16 6.3 581.21 48.84 1.4310 59.0 | 85.5 | 58.3 | 33.2 T-19102R 11 7 798.72 32.21 1.4310 46.2 | 82.4 | 40.1 | 16.0 T-19127R 15 7 825.31 43.5 1.4310 49.8 | 81.3 | 47.2 | 20.8 T-16802R 11.5 7.88 1041.37 27.69 1.4310 40.4 | 77.8 | 32.8 | 10.5 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-16730R Country of origin: DE, German; Torsion spring T-16730R Product image - Torsion springs T-16730R QR-Code: Torsion spring T-16730R
