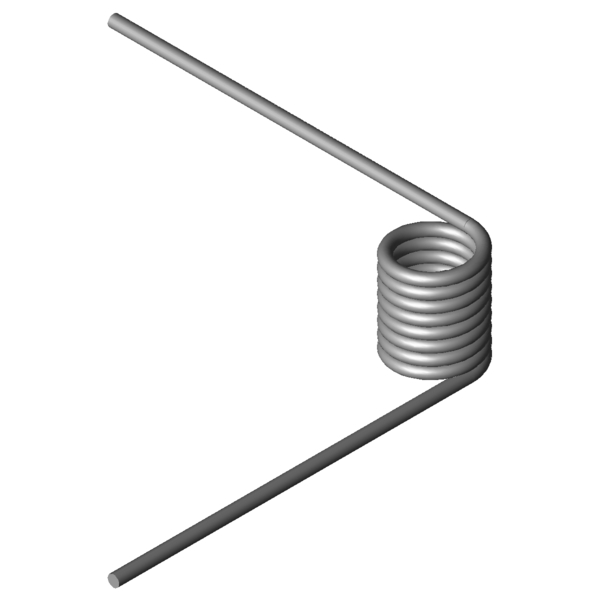

Home » Products » Torsion springs » t-16809r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16809R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 90° Scaled prices - Torsion spring T-16809R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-16809R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16809R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 90 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.25 mm Wire diameter Di 11.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 20.81 mm length of spring body Ls 70 mm leg length RH mm leverage Mntol 324.88 Nmm (+/-) Tolerance maximum torque Mn 1041.37 Nmm maximum torque alphan 91.36 degree maximum rotational angle nt 8.25 pc. total number of coils Ddmax 10.1 mm maximum possible mandrel diameter Ddmin 6.5 mm Min. possible mandrel diameter Ditol 0.3 mm (+/-) tolerance of inner coil diameter Weight 15.5583 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-16809R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 90° Datasheet download pdf file Metal spring characteristic Torsion spring T-16809R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 90° Metal spring characteristic download pdf file CAD data Torsion spring T-16809R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 90° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16809R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 90° force-path-calculation Torsion spring T-16809R Inquiry formular Torsion spring T-16809R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 90° Inquiry formular Torsion spring T-16809R Similar torsion springs to Torsion spring T-16809R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 90° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18584R 11.5 6.25 119.48 155.45 1.4310 33.3 | 58.2 | 35.1 | 6.7 T-18709R 11.25 7.81 223.16 118.95 1.4310 43.1 | 63.6 | 49.1 | 16.5 T-16721R 10.4 8.75 285.09 91.13 1.4310 52.0 | 64.9 | 63.6 | 27.4 T-16733R 12.6 8.75 289.84 109.92 1.4310 47.9 | 65.2 | 55.5 | 23.1 T-18834R 11.9 10 442.58 94.97 1.4310 60.7 | 71.9 | 69.3 | 40.9 T-18909R 10 11.25 554.97 64.92 1.4310 70.3 | 73.7 | 62.2 | 75.0 T-18921R 13.5 11.25 572.76 86.87 1.4310 68.7 | 73.1 | 75.0 | 57.8 T-19109R 11 12.5 798.72 67.65 1.4310 84.5 | 81.5 | 75.4 | 96.5 T-19105R 11 8.5 798.72 41.83 1.4310 65.4 | 75.1 | 61.2 | 59.7 T-19134R 15 12.5 825.31 91.34 1.4310 81.4 | 75.2 | 89.6 | 79.3 T-16809R 11.5 20.81 1041.37 91.36 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16819R 15.5 20.81 1076.95 121.97 1.4310 84.9 | 91.4 | 85.8 | 77.5 T-16829R 18.5 20.81 1094.7 144.94 1.4310 77.6 | 87.4 | 79.1 | 66.3 T-19205R 10 23.13 1422.19 74.61 1.4310 75.4 | 89.0 | 77.4 | 59.8 T-19201R 10 10.63 1422.19 29.34 1.4310 50.7 | 76.0 | 52.7 | 23.5 T-19225R 13.5 23.13 1481.57 99.12 1.4310 82.0 | 88.4 | 81.2 | 76.3 T-19221R 13.5 10.63 1481.57 39.12 1.4310 54.0 | 75.4 | 56.6 | 30.1 T-19245R 17.5 23.13 1524.2 127.75 1.4310 82.4 | 81.9 | 69.9 | 95.5 T-16909R 11.5 25.9 1888.38 71.84 1.4310 65.7 | 86.9 | 66.9 | 43.4 T-16905R 11.5 11.9 1888.38 28.3 1.4310 46.4 | 79.2 | 43.1 | 17.1 T-16901R 11.5 9.1 1888.38 19.59 1.4310 41.6 | 74.7 | 38.3 | 11.8 T-16919R 15.5 25.9 1965.24 95.68 1.4310 69.3 | 78.3 | 74.2 | 55.5 T-19305R 12 27.75 2364.22 71.76 1.4310 59.3 | 81.9 | 61.3 | 34.6 T-19301R 12 12.75 2364.22 28.25 1.4310 42.8 | 77.4 | 37.5 | 13.6 T-17005R 12.5 13.6 2709.97 26.14 1.4310 40.1 | 75.9 | 33.5 | 11.0 T-17009R 12.5 29.6 2709.97 66.35 1.4310 53.7 | 77.5 | 55.5 | 27.9 Number of similar metal springs: 25 Customs tariff number: 73202089; Torsion spring T-16809R Country of origin: DE, German; Torsion spring T-16809R Product image - Torsion springs T-16809R QR-Code: Torsion spring T-16809R
