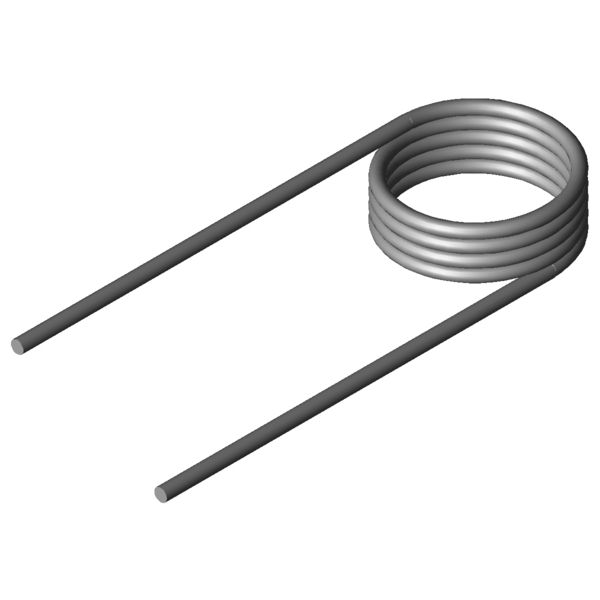

Home » Products » Torsion springs » t-16836r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16836R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 180° Scaled prices - Torsion spring T-16836R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-16836R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16836R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 180 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.25 mm Wire diameter Di 23.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 12.38 mm length of spring body Ls 70 mm leg length RH mm leverage Mntol 274.58 Nmm (+/-) Tolerance maximum torque Mn 1115.14 Nmm maximum torque alphan 99.94 degree maximum rotational angle nt 4.5 pc. total number of coils Ddmax 20.1 mm maximum possible mandrel diameter Ddmin 15 mm Min. possible mandrel diameter Ditol 0.55 mm (+/-) tolerance of inner coil diameter Weight 15.7983 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-16836R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 180° Datasheet download pdf file Metal spring characteristic Torsion spring T-16836R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 180° Metal spring characteristic download pdf file CAD data Torsion spring T-16836R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16836R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 180° force-path-calculation Torsion spring T-16836R Inquiry formular Torsion spring T-16836R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 180° Inquiry formular Torsion spring T-16836R Similar torsion springs to Torsion spring T-16836R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 180° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18860R 14.4 12 449.91 141.55 1.4310 53.5 | 76.4 | 55.5 | 28.5 T-18885R 18.4 12 457.84 180.04 1.4310 51.1 | 82.1 | 48.3 | 22.8 T-18922R 13.5 13.5 572.76 107.55 1.4310 65.4 | 76.4 | 72.1 | 47.7 T-18934R 16 13.5 581.21 126.97 1.4310 62.1 | 79.9 | 65.4 | 41.0 T-18946R 20.5 13.5 591.67 161.94 1.4310 58.8 | 86.3 | 57.4 | 32.7 T-18942R 20.5 8.1 591.67 87.2 1.4310 69.5 | 77.6 | 70.2 | 60.8 T-19160R 18 15 838.31 135.12 1.4310 70.9 | 82.7 | 74.6 | 55.6 T-19156R 18 9 838.31 72.75 1.4310 83.4 | 79.4 | 74.0 | 96.8 T-19185R 23 15 853.09 171.81 1.4310 67.2 | 89.8 | 67.3 | 44.5 T-19181R 23 9 853.09 92.54 1.4310 84.6 | 86.5 | 84.5 | 82.6 T-19177R 23 7 853.09 66.09 1.4310 79.6 | 81.1 | 71.3 | 86.4 T-16806R 11.5 12.38 1041.37 49.83 1.4310 69.3 | 83.0 | 71.6 | 53.4 T-16816R 15.5 12.38 1076.95 66.53 1.4310 79.7 | 88.7 | 81.6 | 68.9 T-16826R 18.5 12.38 1094.7 79.06 1.4310 87.4 | 92.9 | 88.6 | 80.6 T-16836R 23.5 12.38 1115.14 99.94 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19242R 17.5 13.75 1524.2 69.63 1.4310 69.1 | 84.8 | 71.4 | 51.0 T-19262R 22.5 13.75 1558.44 89.01 1.4310 78.7 | 91.9 | 80.3 | 63.7 T-16922R 19.5 9.8 2014.76 36.22 1.4310 48.9 | 80.8 | 45.8 | 20.1 T-16926R 19.5 15.4 2014.76 65.2 1.4310 59.2 | 81.2 | 60.3 | 36.1 T-16932R 24 9.8 2052.94 44.36 1.4310 53.1 | 85.8 | 49.4 | 24.1 T-16936R 24 15.4 2052.94 79.84 1.4310 65.6 | 86.2 | 67.1 | 43.4 T-19342R 21 16.5 2533.79 67.02 1.4310 54.9 | 79.8 | 55.5 | 29.5 T-19362R 26 16.5 2582.84 82.51 1.4310 59.6 | 80.1 | 62.9 | 35.6 T-17012R 17 11.2 2827.78 26.99 1.4310 40.5 | 77.7 | 33.2 | 10.6 T-17022R 22 11.2 2909.76 34.65 1.4310 44.9 | 84.8 | 36.5 | 13.3 T-17026R 22 17.6 2909.76 62.37 1.4310 50.8 | 78.1 | 50.4 | 23.9 T-17032R 27 11.2 2964.79 42.31 1.4310 46.2 | 82.6 | 40.0 | 15.9 T-19702R 20.5 15.75 7210.54 21.78 1.4310 31.3 | 71.9 | 18.6 | 3.4 T-19711R 25.5 15.75 7413.47 26.88 1.4310 32.9 | 73.6 | 21.0 | 4.0 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-16836R Country of origin: DE, German; Torsion spring T-16836R Product image - Torsion springs T-16836R QR-Code: Torsion spring T-16836R
