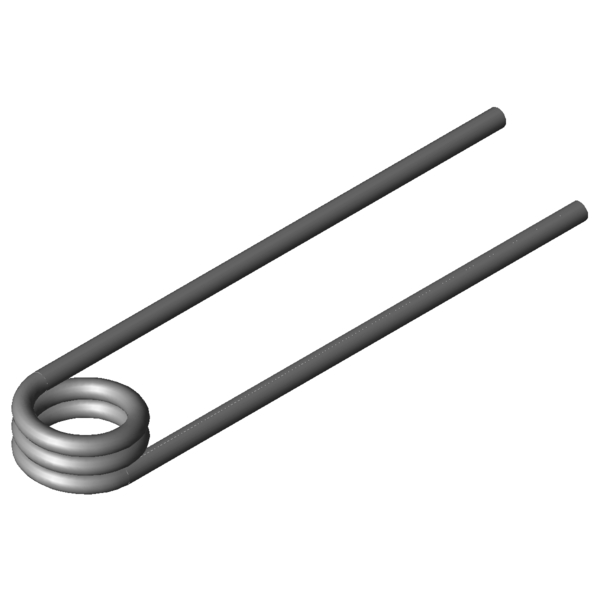

Home » Products » Torsion springs » t-16902l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16902L: Stainless steel Ø 2.8 x 11.5 x 80 mm / 180° Scaled prices - Torsion spring T-16902L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-16902L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16902L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 180 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.8 mm Wire diameter Di 11.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 9.8 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 912.15 Nmm (+/-) Tolerance maximum torque Mn 1888.38 Nmm maximum torque alphan 21.77 degree maximum rotational angle nt 2.5 pc. total number of coils Ddmax 10.1 mm maximum possible mandrel diameter Ddmin 8 mm Min. possible mandrel diameter Ditol 0.3 mm (+/-) tolerance of inner coil diameter Weight 13.2202 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-16902L: Stainless steel Ø 2.8 x 11.5 x 80 mm / 180° Datasheet download pdf file Metal spring characteristic Torsion spring T-16902L: Stainless steel Ø 2.8 x 11.5 x 80 mm / 180° Metal spring characteristic download pdf file CAD data Torsion spring T-16902L: Stainless steel Ø 2.8 x 11.5 x 80 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16902L: Stainless steel Ø 2.8 x 11.5 x 80 mm / 180° force-path-calculation Torsion spring T-16902L Inquiry formular Torsion spring T-16902L: Stainless steel Ø 2.8 x 11.5 x 80 mm / 180° Inquiry formular Torsion spring T-16902L Similar torsion springs to Torsion spring T-16902L: Stainless steel Ø 2.8 x 11.5 x 80 mm / 180° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18810L 8.9 12 429.24 88.69 1.4310 33.8 | 72.1 | 23.6 | 5.6 T-18835L 11.9 12 441.52 117.28 1.4310 34.6 | 78.5 | 21.0 | 4.3 T-18831L 11.9 7.2 441.52 63.1 1.4310 37.6 | 75.8 | 28.9 | 8.1 T-18827L 11.9 5.6 442.58 45.18 1.4310 39.1 | 70.3 | 35.8 | 11.3 T-18860L 14.4 12 449.91 141.55 1.4310 32.1 | 72.9 | 19.6 | 3.7 T-18906L 10 8.1 554.97 43.28 1.4310 44.2 | 78.0 | 39.8 | 14.8 T-18902L 10 6.3 554.97 30.91 1.4310 47.5 | 71.8 | 49.9 | 20.7 T-18910L 10 13.5 554.97 80.37 1.4310 36.9 | 74.6 | 28.2 | 8.0 T-18918L 13.5 8.1 572.76 57.91 1.4310 40.9 | 77.4 | 34.0 | 11.4 T-19106L 11 9 798.72 45.07 1.4310 50.7 | 86.3 | 45.3 | 20.4 T-19102L 11 7 798.72 32.21 1.4310 54.3 | 79.5 | 54.9 | 28.6 T-19131L 15 9 825.31 60.86 1.4310 45.1 | 80.0 | 39.7 | 15.6 T-16802L 11.5 7.88 1041.37 27.69 1.4310 65.7 | 86.9 | 66.9 | 43.4 T-16806L 11.5 12.38 1041.37 49.83 1.4310 53.3 | 86.5 | 49.4 | 24.1 T-16902L 11.5 9.8 1888.38 21.77 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16912L 15.5 9.8 1965.24 28.99 1.4310 85.0 | 91.4 | 85.6 | 78.2 T-17002L 12.5 11.2 2709.97 20.11 1.4310 78.1 | 89.0 | 81.0 | 64.4 Number of similar metal springs: 16 Customs tariff number: 73202089; Torsion spring T-16902L Country of origin: DE, German; Torsion spring T-16902L Product image - Torsion springs T-16902L QR-Code: Torsion spring T-16902L
